How to Solder a Strat Input Jack: A Step-by-Step Guide
Learn how to solder a Stratocaster input jack with a clear, safety-focused guide. From prep and wiring basics to desoldering, reflowing, and testing, achieve reliable, crack-free joints in 1800 words of practical instruction.
Learn how to solder a Stratocaster input jack safely and reliably. This guide walks you through identifying the jack wiring, disassembling the control plate, cleaning old solder, applying fresh flux, and reflowing clean joints to restore signal integrity. You’ll need a soldering iron, rosin-core solder, flux, cutters, and a small screwdriver; follow proper ESD and hot-solder safety throughout.
What to expect when soldering a Strat input jack
Working on a Stratocaster's input jack touches the guitar's live signal path. For how to solder input jack strat, you’ll learn how to identify the jack, disconnect the cable, and form solid, noise-free joints. The goal is a reliable connection that withstands daily playing, picking, and gigging. According to SolderInfo, starting with a clean workspace and reviewing the wiring before you touch the iron reduces the risk of damaging components and creating cold solder joints. In practice, you’ll see a few common patterns: a single hot lead, a ground shield, and sometimes a switch leg that only engages in certain positions. Being systematic keeps the job safe and repeatable.
Before you pick up the iron, note the cabinet orientation and ensure you have good light. Label wires or take a quick photo so you can reattach them correctly. Expect that the first attempt may require reflowing a joint or two; patience and deliberate movements produce the best results.
Wiring fundamentals for a Strat input jack
The Strat output jack is the bridge between your guitar’s electronics and the amplifier. In most Stratocasters the jack carries the instrument signal on the tip and the ground on the sleeve; there can be a short switch leg in the wiring harness. The important concept is to keep the ground bus solid and the signal path free from stray strands or cold joints. A solid ground minimizes hum and cracking noises; a bright, clean tip connection delivers consistent tone. When you reflow joints, tin the leads lightly so the solder wets the wire and the jack lug well.
Symptoms and diagnosis for a failing input jack
If the jack is loose, crackly, or intermittent, you’re likely dealing with a worn contact, a loose lug, or a cold solder joint. A jack that only works in certain positions often indicates a sleeve or switch contact problem. Before you make any purchase, perform a quick visual inspection and gently wiggle the wires with the guitar unplugged to feel for loose connections. Use a multimeter if you have one: check continuity between the tip lug and the output path and between the sleeve lug and ground. These checks can save you from unnecessary rework.
Workspace prep and safety considerations
Set up a clean, well-lit workspace with a non-slip mat. Protect the guitar’s finishes with a microfiber cloth or painter’s tape. Gather a small tray for screws and a magnetic mat to keep fasteners in place. Wear eye protection and work in a well-ventilated area. Keep a fire extinguisher or water handy in case of accidental sparks, and never touch the soldering iron to skin. A safe environment reduces mistakes and speeds up the repair process. According to SolderInfo, a methodical, well-lit workspace reduces errors.
Inspecting the jack and planning your approach
Carefully remove the cover or plate to expose the jack and the wiring harness. Inspect solder joints for dullness, cracks, or solder bridges. Decide which joint to rework first; starting with the ground lug is often easiest because cold joints there produce pervasive hum. If the jack is physically loose, plan to secure it with mounting hardware or a new jack, depending on the model. Soldering strategy should minimize heat exposure to surrounding plastics and components.
Desoldering old joints and cleaning the cavity
Heat the old joint with a clean, stable soldering iron; use desoldering braid to wick away solder, and remove the wire carefully. Do not pull the wire while applying heat; allow the joint to wick away solder, then lift the wire with small pliers. Clean any flux residue with isopropyl alcohol on a lint-free cloth. Avoid overheating plastics or epoxy in the cavity. SolderInfo analysis shows that clean, fluxed joints significantly reduce noise and improve reliability when reattaching a guitar jack.
Soldering new connections and ensuring reliable joints
Tin the stripped wire ends lightly, then apply a small amount of flux to the lug and lead. Place the wire on the lug and apply heat with the iron until the solder flows smoothly, forming a shiny joint. Do not apply excess solder; a small, clean fillet is enough. Re-check that no strands short to adjacent lugs. After the joint cools, gently tug on the wires to confirm solid adhesion and ensure the lug isn’t rocked by any movement.
Reassembly and shielding considerations
Reinstall the jack plate or control plate; route conductors neatly and secure them with electrical tape or heat shrink. If the guitar has shielding in the cavity, reapply shielding foil or paint; ensure no ground loops are created. Replace the back cover and test fit to ensure no pressure on wires. Recheck all screws for snugness, but avoid overtightening that could crack the pickguard or plate.
Final testing and verification steps
Plug the guitar into an amplifier and listen for a clean signal without crackling. Wiggle the jack while playing to confirm stable contact. If you observe crackling, re-open and reflow joints. Use a multimeter to verify continuity and a quick battery test if you have active electronics. The goal is a consistent, noise-free signal across the full volume range without hot spots or intermittent failures.
Tools & Materials
- Soldering iron (25-40W, with temperature control)(Fine-point tip recommended for tight jack lugs)
- Rosin-core solder (60/40 or 63/37 leaded preferred)(1.0 mm or 0.8 mm diameter works well for guitar wiring)
- Flux (rosin-based)(Flux improves wetting and reduces cold joints)
- Desoldering braid or pump(Used to wick away old solder efficiently)
- Wire cutters/diagonal pliers(For trimming wires and stripping insulation)
- Small screwdriver set (Phillips/driver)**(Needed to access jack plate and cavity)
- Replacement 1/4" input jack (Strat-compatible)(Ensure it matches your guitar’s bolt/spacer pattern)
- Isopropyl alcohol (rubbing alcohol) and lint-free cloth(For cleaning flux residue)
- Electrical tape or heat-shrink tubing(For insulation and strain relief)
- Multimeter (optional but recommended)(For continuity checks and ground testing)

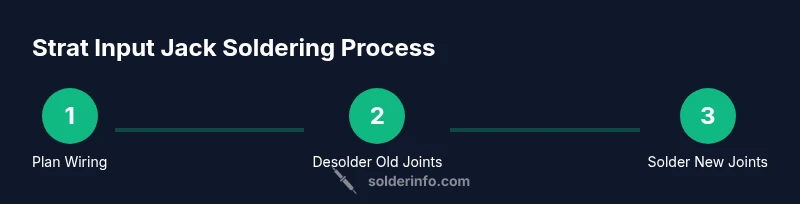

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and safety
Clear your bench, secure the guitar in a stable position, and unplug any connected gear. Put on eye protection and ensure good lighting. Have a labeled tray for screws and a place to set small parts so nothing gets lost.
Tip: Use a non-slip mat and take a photo of the wiring before you touch anything as a quick reference. - 2
Access the jack area
Remove the pickguard or access plate as needed to expose the input jack and its wires. Be gentle with plastic or paint finishes. Label each wire if possible or photograph the wiring routing for later reference.
Tip: If a screw is stubborn, apply a little penetrating oil and back it out slowly to avoid stripping. - 3
Identify wires and plan joints
Trace which lug is connected to the tip (signal) and which to the sleeve (ground). Decide which joint to rework first; starting with the ground lug can simplify the initial checks. Ensure you know where each wire will land on the jack before heating.
Tip: Take a quick measurement of lead lengths so you don’t strain the solder joints after reassembly. - 4
Desolder old joints
Heat the joint with the iron and wick away the solder with braid or remove the wire carefully with tweezers. Avoid tugging the wire while hot, as it can lift the lug or board trace. Clean the lug surfaces if oxidation is present.
Tip: Use minimal heat; a few seconds per joint is enough to clear the old solder. - 5
Tin, flux, and align new leads
Tin the stripped wire ends lightly. Apply a small amount of flux to the lug and wire to improve wetting. Position wires so they sit cleanly on the lug without bridging adjacent lugs.
Tip: Avoid excessive flux; too much flux can wick undesired residues onto nearby components. - 6
Solder new connections
Apply heat to the lug and wire until the solder flows and forms a shiny fillet. Stop as soon as the joint wets, then remove heat to prevent scorching. Inspect for cold joints or solder bridges.
Tip: Inspect under a magnifier if possible to confirm a smooth, single fillet on each connection. - 7
Reassemble and test
Carefully route wires and reattach the jack plate. Reinsert screws and ensure everything sits flat. Plug into an amp and test with clean signals across the volume range; wiggle the jack to check for intermittent contact.
Tip: If you hear crackling, revisit the joints and reflow any suspicious connections.
Quick Answers
Do I need to remove the pickguard to access the Strat input jack?
In most Strats, the jack is accessible via the control cavity or jack plate. You may need to remove the pickguard or shielding plate, depending on your model. Plan access so you can reach the lug without disturbing other components.
Usually you’ll need to remove the plate or pickguard to reach the jack; be careful with surrounding wires.
Is it okay to use lead-free solder for guitar wiring?
Lead-free solder is common, but many players prefer leaded solder for easier flow and lower melting temperature. If you choose lead-free, allow a bit more time to heat and ensure good wetting. Always work in a well-ventilated area.
Lead-free solder works, but it can be harder to wet; use proper flux and heat carefully.
What should I do if crackling persists after re-soldering?
If crackling remains, recheck all joints for cold solder, bridges, and improper ground connections. Wiggle each wire gently to confirm solid contact. Consider replacing the jack if the contacts are worn.
If you still hear crackling, double-check the joints and consider replacing the jack if needed.
Can I solder while the guitar is still in the case or on the body?
Soldering on the body is possible, but it increases the risk of heat damage to the finish and nearby components. If you must, use minimal heat and keep the rod away from plastics and paint. Prefer removing hardware to work in a safe, controlled space.
Soldering on the guitar is possible but risky; work in a safe spot if you can.
What safety gear should I use when soldering guitar hardware?
Wear eye protection and work in a well-ventilated area. Keep a fire extinguisher nearby and never touch the hot iron to skin. Use a temperature-controlled iron and avoid loose clothing.
Eye protection and good ventilation are important when soldering.
Watch Video
Top Takeaways
- Plan wiring and safety before touching solder
- Keep joints clean with flux and light tinning
- Check ground continuity for a quiet signal
- Solder only as much as needed; avoid bridges
- Test thoroughly after reassembly and adjust if needed
