How to Solder for Guitar: A Complete Guide
Master guitar wiring soldering with a safe, reliable approach. Learn tools, techniques, and step-by-step instructions for wiring pickups, pots, and switches in your guitar projects.
## Quick Answer You will learn to solder guitar wiring safely and reliably, covering essential tools, flux choices, and a step-by-step process for connecting pickups, pots, and switches. Start with a clean workspace, unplug all power, and practice on a spare harness before touching your instrument. Follow proper heat control and inspect every joint for a bright, smooth fillet. This guide focuses on practical, DIY-friendly methods suitable for electronics soldering in guitars.
Understanding guitar electronics: what you’re soldering
Guitars route signal through pickups, potentiometers, switches, and the output jack. Soldering joins copper wires to components, forming the electrical path from the pickups to the amp. A solid joint ensures consistent signal, minimal noise, and reliable grounding. According to SolderInfo, most failures in guitar wiring come from cold joints or poor heat control rather than faulty components. The SolderInfo team found that careful preparation, clean surfaces, and correct heat application dramatically improve long‑term reliability. Whether you’re wiring a basic one‑pickup Fender‑style harness or a complex modern guitar with multiple coils and a hum‑cancelling circuit, a clean, well-tinned joint is the foundation of good tone.
Safety first: eye protection, ventilation, and hot surfaces
Soldering involves hot metal and fumes, so safety is non‑negotiable. Always unplug the guitar and remove any batteries. Work in a well‑ventilated area, use safety glasses, and keep a water bottle or fire extinguisher nearby for emergencies. A stable work surface, a proper soldering iron stand, and heat‑resistant gloves can prevent accidents. Do not touch the warm tip, and avoid flammable solvents near your soldering station. The habit of cooling joints on a non‑conductive surface reduces the risk of accidental shorts.
The right solder and flux for guitar work
Choose a lead‑free rosin‑core solder in a diameter suitable for thin guitar wires (usually small diameters). Rosin flux helps the solder flow smoothly and protects joints from oxidation. For guitar work, a no‑clean flux is often preferred to minimize cleanup. Avoid acidic fluxes, which can corrode delicate wire enamel and pot lugs over time. Remember to tin both the wire ends and component lugs lightly before forming the joints, so soldering becomes faster and more reliable.
Preparing your guitar for soldering
Before you touch anything, photograph the wiring so you can reassemble correctly. Remove the pickguard or control cavity cover to expose the harness. If you must desolder an existing joint, use a desoldering braid to draw away old solder and avoid lifting the lugs. Clean surfaces with isopropyl alcohol to remove oils and flux residues. Ensure you have enough room to work and that all components are accessible without bending delicate wires.

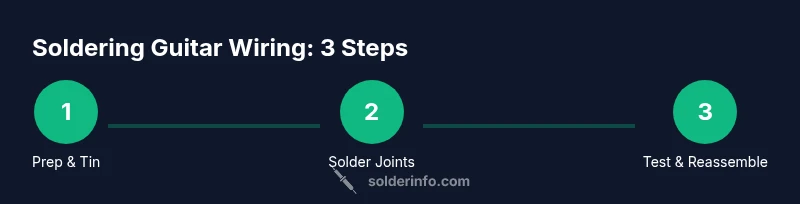

Step-by-step overview: setting up and testing
This section provides a concise map of the core tasks you’ll perform. Start by securing the guitar, preparing the wires, tinning the tips, and practicing on spare leads. Test each joint visually for a bright, smooth fillet before proceeding. Finally, reassemble the cavity and perform a continuity test to confirm proper grounding and signal flow. The overview helps you stay organized and reduces the chance of wiring mistakes that could cause noise or shorts.
Soldering joints you’ll encounter on guitars
Typical guitar wiring includes pickups, volume and tone pots, a selector switch, and the output jack. Each joint has unique geometry: thin enamelled wires, curved lugs, and small terminals that must be heated evenly. Ground wires usually bond to a common point or a back of a pot shell. For hum‑cancelling or modern active circuits, verify the impedance and shield connections to prevent buzzing.
Troubleshooting common guitar soldering issues
Common problems include cold joints, bridging between adjacent lugs, and stray solder splashes that cause shorts. A dull or grainy joint often indicates insufficient heat or insufficient flux; re‑tin and re‑flow with care. If you hear buzz, hum, or crackling, unplug and inspect each joint with a magnifier. Use a multimeter to verify continuity on ground paths and signal lines, ensuring there are no unexpected shorts or opens.
Best practices for clean, reliable connections
Keep work surfaces clean and work slowly to allow heat to transfer evenly. Tin wires and component leads, apply flux judiciously, and avoid overheating enamels. Route wires neatly to reduce movement and chafing. Inspect every joint after cooling; a good joint should have a shiny, slightly convex fillet with no gaps. Document your wiring scheme visually to simplify future maintenance.
Practice tips: safe ways to build confidence
If you’re new to guitar soldering, practice on a spare harness or a dedicated practice board before touching a real instrument. Use a heat‑sink clamp on temperature‑sensitive parts to minimize heat transfer. Take breaks to prevent fatigue and mistakes. By building a small library of repeatable joints, you’ll gain speed and accuracy when you work on your guitar.
Tools & Materials
- Soldering iron (adjustable heat preferred)(Standby when not in use; keep the tip clean)
- Lead-free rosin-core solder (0.5–0.8 mm diameter)(Choose no‑clean flux if available)
- Rosin flux (no-clean preferred)(Flows well and requires minimal cleanup)
- Desoldering braid (wick)(For removing old solder without lifting parts)
- Flux pen or flux paste(Extra flux for hard-to-tin joints)
- Wire cutters and strippers(Precision for guitar wires)
- Small needle-nose pliers(Grip and position tiny leads)
- Multimeter with continuity mode(Check ground and signal paths)
- Soldering iron stand and damp sponge(Keep tip tinned and clean)
- Isopropyl alcohol (rubbing alcohol) 70%+(Clean surfaces after soldering)
- Heat shrink tubing or self‑fusing electrical tape(Insulate and protect joints)
- Helping hands / third hand tool(Stabilize components while soldering)
Steps
Estimated time: 60-120 minutes
- 1
Prepare workspace and safety gear
Set up a clean, well-lit work area. Plugs are unplugged and the guitar is secured. Gather tools and PPE (glasses, ventilation) before starting.
Tip: Keep a clear path to avoid knocking anything over. - 2
Power down and access wiring
Unplug the amp and disconnect any battery. Remove the pickguard or back cavity cover to expose wiring.
Tip: Take a photo or draw a quick schematic before you touch wires. - 3
Identify wires and components
Map each wire to its function: signal hot, ground, shield. Note junctions at pots, switch, and jack.
Tip: Label wires or use color codes consistently. - 4
Tin wire ends and component lugs
Dip the stripped wire ends briefly in flux and apply a thin layer of solder. Do the same to lugs on components you'd be joining.
Tip: Tinning prevents frayed strands and aids heat transfer. - 5
Position joints with care
Place wires and lugs so joints sit flat on their pads. Use helping hands if needed to avoid movement during soldering.
Tip: Keep wires away from hot areas to prevent insulation damage. - 6
Apply heat and solder the joint
Touch the tip to the joint and feed solder into the joint, not directly onto the iron. Stop feeding once the joint is bridged and looks shiny.
Tip: Avoid applying excessive solder that could bridge to adjacent lugs. - 7
Inspect and reflow as necessary
Let joints cool briefly, then inspect for a smooth, shiny fillet. If dull or cracked, reheat and reflow.
Tip: Use a magnifier to catch small defects. - 8
Test continuity and ground
Use a multimeter to confirm continuity along ground paths and signal integrity from pickup to jack.
Tip: Check for shorts between adjacent lugs. - 9
Insulate and protect joints
Slip heat shrink over exposed areas or wrap with electrical tape where appropriate. Ensure no bare copper is exposed.
Tip: Keep shielding intact to minimize noise. - 10
Reassemble the cavity
Carefully reattach the pickguard or control cavity cover, ensuring wires aren’t pinched.
Tip: Re-check wiring diagram before closing up. - 11
Final function test
Plug into an amp and test each control (volume, tone, switch) for clean signal and proper attenuation.
Tip: Listen for pops or crackles as indicators of poor joints. - 12
Document and store
Record any changes to wiring for future maintenance. Store tools in a safe, organized manner.
Tip: Label future projects to avoid repeating mistakes.
Quick Answers
What tools are essential for soldering guitar wiring?
A basic setup includes a soldering iron, lead-free rosin-core solder, flux, desoldering braid, wire strippers, and a multimeter. A helping hands tool is optional but helpful for stability. Start with a clean station to reduce errors.
You'll need a soldering iron, lead-free solder with flux, desoldering braid, wire strippers, and a multimeter. A helping hands device helps, but it's not mandatory.
Is lead-free solder safe for guitar electronics?
Yes. Lead-free solder with rosin flux is suitable for guitar electronics when used correctly. It reduces health and environmental risks while still providing good joints. Avoid acidic flux which can damage components over time.
Lead-free solder with rosin flux is fine for guitar wiring when used properly.
Can I solder a live guitar into an amp?
Never solder with the guitar connected to an amplifier or power source. Always disconnect power first and ensure the amp is unplugged. Work in a static-free environment to avoid shorts and damage.
Always unplug the amp and the guitar before soldering.
What causes a cold joint on guitar wiring?
A cold joint occurs when insufficient heat or poor flux prevents the solder from forming a proper bond. It looks dull and may crack with movement, causing crackling or intermittent sound. Reheat and reflow the joint if you suspect one.
A cold joint happens when heat or flux is insufficient, resulting in a dull, unreliable bond.
How do I test guitar wiring after soldering?
Use a multimeter to verify continuity between grounds and signal paths and to ensure there are no shorts between adjacent lugs. Also test each control at the amp to verify clean, crackle-free operation.
Check continuity and test each control to confirm proper wiring.
Should I tin wires before soldering to guitar components?
Yes. Tin the stripped wire ends before joining to lugs or pads. This helps you achieve a quicker, more reliable joint and reduces the risk of wire fraying during the soldering process.
Tin the wire ends before joining to improve joint quality.
Watch Video
Top Takeaways
- Plan wiring layout before soldering and document it.
- Tin all wires and lugs to ensure smooth solder flow.
- Inspect joints with a magnifier for shine and proper fillets.
- Test continuity and grounding to prevent noise and shorts.
- Practice on a spare harness before working on a guitar.
