Guitar Wiring Solder: A Practical Step-by-Step Guide

Understanding guitar wiring solder fundamentals

Guitar wiring solder can be intimidating if you're new to electronics, but with a systematic approach you can achieve reliable connections that withstand gigging. In this section, we cover the fundamentals: how the signal path flows from pickups through pots and switches to the output jack, how ground is returned, and how soldering quality affects tone and noise. A solid foundation will reduce hum, crackle, and weak solder joints, which are common causes of poor sustain or intermittent connections. The keyword here is control: controlling heat, controlling motion of the wires, and controlling the amount of solder that remains on each joint. For DIY builders and professional luthiers, planning the harness before you heat the iron saves time and prevents accidental shorts. According to SolderInfo, starting with a clean work surface, proper flux, and correctly sized tips leads to more consistent results. In practice, you’ll be dealing with brown and white wires for pickups, shielded cables, and grounding points; learning to identify the colors (or tracing with a meter) is essential for non-destructive wiring work. This knowledge applies across guitars with three-, four-, and five-way switches, and it forms the basis for safer, cleaner, and more repeatable repairs.

Tools, materials, and workspace setup

Before you heat the iron, assemble a dedicated workspace with good lighting and a fire-safe surface. Gather essential tools and materials: a temperature-controlled soldering iron, lead-free rosin-core solder, flux (pen or liquid), desoldering braid, wire strippers, needle-nose pliers, a multimeter, heat shrink tubing, kapton tape, safety glasses, and a small container for screws and wires. Keep a pair of flush cutters and tweezers handy for trimming ends and positioning tiny wires. It’s also wise to have a small fan or fume extractor to handle flux fumes. Use an anti-static mat if you’re working near sensitive electronics, and consider a third-hand tool or helping hand to hold parts while you solder. Labeling supplies (masking tape and a marker) help you map wires to their correct destinations later. Avoid working with high humidity or dust, which can lead to corrosion over time. Finally, check that your soldering iron tip is clean and properly tinned for reliable wetting.

Reading guitar wiring diagrams and colors

Wiring diagrams for guitars use standardized conventions, but color codes can vary by brand. Start by identifying the control layout—volume, tone, selector switch, and any coil-tap options. Use a magnifier to read tiny print on the back of pots and switches, and annotate wires with small labels or masking tape. In most common setups, pickups carry two or more conductors plus a shield. Ground wires usually connect to a common ground point on the back of the volume pot or the bridge. Tracing wires with a multimeter can confirm which lead corresponds to which pickup or terminal. If you’re unsure, consult a schematic for your guitar model and compare color conventions. The critical skill here is mapping the physical wires to the schematic without cutting or permanently modifying a working harness. Accurate mapping reduces substitution errors and short circuits during soldering.

Choosing the right components for your guitar

Selecting components is about balancing tone and reliability. Potentiometers typically come in common values like 250k and 500k; the choice depends on pickup type and desired brightness. Tone caps commonly range from 0.022µF to 0.047µF, affecting high-end roll-off. For humbuckers, a 4-conductor setup lets you split coils; ensure you follow a tested diming strategy to avoid miswiring. Grounding matters: a single ground point minimizes hum and reduces noise. When wiring a switch, ensure the common terminal gets the hot signal from the pickups and the switch selects the appropriate pickup lead without creating a short. For shielding, use conductive paint or copper foil and connect the shield to ground to minimize radio-frequency interference. Plan around your guitar’s routing and cavity depth, avoiding cramped solder joints that may crack with vibration.

Safe soldering technique for guitar electronics

Safety and precision go hand in hand in soldering. Begin by heating the joint with the iron and applying a small amount of flux to improve wetting. Tin the wire ends lightly before placing them on the joint, then apply solder to the joint—not the iron—to form a clean, shiny fillet. Avoid overheating components; keep the iron moving to prevent insulation damage on wire coatings. If a joint looks dull or crumbly, reflow it with a touch more solder and fresh flux. After each joint cools, inspect for cold joints, bridging, or debris. Use the smallest practical tip for fine wiring and ensure good ventilation due to flux fumes. A well-executed solder joint should be smooth, with a tight bond that resists cracking during transport and playing. Finally, tidy excess wire and secure connections with heat shrink or tape to prevent movement.

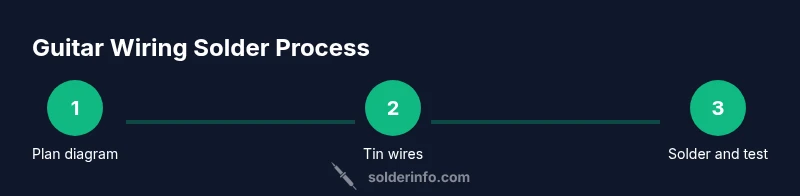

Step-by-step example: wiring a common harness

1. Remove the pickguard or control plate to expose the cavity. 2) Label each lead from the pickups and potentiometers. 3) Tin the exposed ends of wires for quick joining. 4) Solder ground wires to a common ground point on the pot housing. 5) Connect pickup leads to their corresponding lugs on the selector switch or volume pot, following your diagram. 6) Add shielding and secure wires with small zip ties or tape. 7) Inspect all joints under good light, clean up flux, and reflow any dull joints. 8) Reassemble the guitar and verify that the harness sits without strain. 9) Test continuity with a multimeter and ensure ground continuity. 10) Final test: plug into an amp and check for noise or tone shifts, adjusting as needed.

Common mistakes and how to fix them

Common mistakes include overheating joints, forgetting to tin wires, misidentifying wire colors, and leaving flux residues. If you see a dull joint or a crack in the insulation, rework the joint with fresh flux and solder. Miswiring can cause phase issues or no-signal conditions; double-check each connection against the schematic before securing the parts. Flux residues can attract dust and moisture over time; wipe joints with a damp cloth or use isopropyl alcohol after cooling. Always test continuity and ground thoroughly after wiring before sealing the cavity.

Testing, troubleshooting, and tuning

Testing begins with a basic continuity check between each pickup lead and the output jack. Use a multimeter in continuity or resistance mode to confirm expected values. If a section reads open or wildly off resistance, reflow the joint and verify color coding matches the diagram. After wiring the instrument, reinstall strings and perform a thorough test: tap test each pickup position, check coil-splitting if present, and listen for any hum that shifts with the volume. If you detect a hum, re-check shielding and grounding. Finally, verify intonation and resonance by playing scales and listening for odd tonal anomalies. Document any changes you make for future maintenance.

Final considerations: maintenance and repair ethics

Maintenance includes periodic checks for loose solder joints, cracked insulation, and corrosion on grounding points. Keep a small spare harness or terminal connectors on hand for quick repairs. Before selling or giving away a guitar, verify the wiring and shielding are intact to ensure safe operation. Always respect the original wiring plan and document any modifications with clear diagrams. The ethical practice is to perform repairs with consent and keep spare parts organized for future upgrades.
