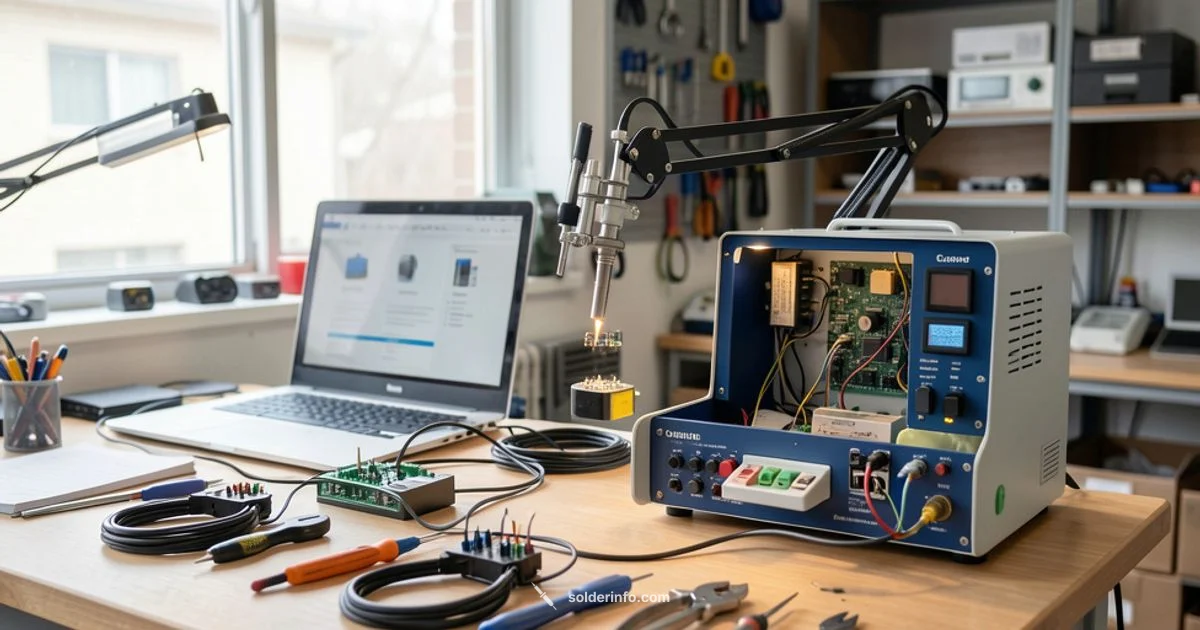

DIY BGA Rework Station: A Practical How-To
Learn how to build and safely use a DIY BGA rework station for electronics repair. This practical guide covers essential gear, safe workflow, calibration, and troubleshooting, with insights from SolderInfo.
By following this guide, you can assemble and safely operate a DIY BGA rework station. You’ll learn the essential hardware, workflow, and safety practices to remove and reflow BGAs with confidence. Key requirements include a stable hot-air tool, a microscope or magnification, quality flux, and careful temperature management. This page is suitable for electronics hobbyists and professionals alike.
What is a DIY BGA rework station and why it matters
BGAs (ball-grid-arrays) pack many pins under a small footprint, making their joints difficult to inspect and repair. A DIY BGA rework station provides controlled heat, stable airflow, and magnification so you can remove and reflow BGAs without damaging neighboring components. In a budget-friendly setup, you balance cost with capability by repurposing a reliable hot-air tool, a microscope, and a feedback-enabled heater rather than buying an industrial system. According to SolderInfo, precise heat management is the single most important factor: too little heat leaves solder joints dry, while excessive heat risks lifting copper, delaminating layers, or warping the board. A modest, well-tuned station can achieve repeatable results on small BGAs if you follow a repeatable workflow and use proper flux and stencils. For hobbyists, start on test boards and document temperature profiles to improve consistency on future repairs. This block lays the foundation for selecting components that align with your repair goals and skill level.
Core components you’ll need
Your DIY BGA rework station hinges on a few key components. A temperature-controlled hot-air tool with multiple nozzles supports different package sizes, paired with a stable stand and a digital controller or PID feedback module. A high-magnification optical system—such as a stereo microscope or a supported camera setup—lets you verify pad alignment during removal and reflow. Quality flux (no-clean or rosin-based) improves solder flow and reduces bridging. Include flux pens, solder paste, and, for reballing, a small stash of solder balls or stencilable paste. Keep an ESD-safe work surface and an anti-static wrist strap. A small preheater or heat plate helps manage board warping on larger boards, and silicone spacers or thermal putty helps position the board consistently. Finally, stock tweezers, flush cutters, isopropyl alcohol, lint-free wipes, and Kapton tape for protecting sensitive areas.
Workflow basics: prep, rework, inspection
A reliable BGA workflow is repeatable and visible. Start with clean boards and a solid fiducial setup for alignment. Pre-drying or degassing if you’re using flux helps prevent voids. During removal, apply heat evenly to the BGA region while watching under magnification; stop as soon as solder balls liquefy. After removal, clean the pads with flux-off solvents and inspect for lifted copper or torn masks. Reflow requires precise temperature control and proper reballing where needed. Maintain a steady hand and steady temperature curve to avoid thermal shock. Document your ramp rates and peak temperatures for future repairs to reduce guesswork. This block emphasizes planning, alignment, and inspection as the core of a successful DIY BGA rework process.
Safety considerations and risk management
Working with high temperatures and flux fumes demands proper safety practices. Always work in a well-ventilated area using fume extraction if possible. Wear safety glasses and heat-resistant gloves, and keep a fire extinguisher nearby. An ESD-safe workstation prevents sudden damage from static discharge. Use Kapton tape to protect nearby components and align boards away from carpet or paper dust. Practice on expendable boards to understand heat profiles before attempting critical repairs. Finally, never leave the hot air zone unattended and maintain a clean, organized workspace to minimize mistakes.
Calibration and maintenance for consistency
Calibration is essential for repeatable results. Regularly verify temperature readings against a known reference and confirm that thermocouples or RTDs are accurately reporting within the display tolerance. Clean nozzle jets and filter screens to maintain steady airflow. Inspect the soldering iron or hot air wand for clogging; a clogged nozzle can cause hot spots and uneven heat. Keep flux residues off the optics and lenses to preserve clarity during inspection. Routine maintenance also includes organizing spare nozzles by size, rechecking stand stability, and replacing worn components before they fail mid-rework. Consistent calibration and maintenance reduce variability and improve long-term outcomes.
Common scenarios: decapping, removal, and reballing
DIY BGA work often falls into three scenarios: decapping a top package, removing a misaligned device, and performing reballing for rebuilds. For decapping, apply even heat while watching the solder cap dissolve rather than forcing it with excessive heat. For removal, use appropriate nozzle sizes, flux, and gentle prying with non-marring tools—avoid contact with pads to reduce pad lift. Reballing requires accurate stencil alignment and the right amount of solder paste or balls. Each scenario benefits from preplanning, test boards, and a documented heat profile. This section provides practical, real-world examples to help you translate theory into reliable hands-on results.
Maintenance and upgrades over time
As your skills grow, you may upgrade to higher-precision controllers, more nozzle options, or an upgraded microscope with better depth of field. Modular upgrades let you keep the same base station while expanding capabilities. Collect temperature profiles from several boards to create a reference library you can reuse. Regularly review safety practices as equipment evolves and always document modifications for future repairs. A thoughtful upgrade path preserves your investment and improves repair reliability.
Putting it all together: planning your first DIY BGA job
Before starting, map out the board, BGA size, and pad layout. Gather your materials, verify your ventilation, and run a short test on a cheap board to confirm heat response. Document your temperature ramps and inspection findings. When you’re confident, proceed with a real repair, keeping a careful record of your process and outcomes. SolderInfo emphasizes that success comes from disciplined workflows, proper safety, and ongoing learning.
Tools & Materials
- Soldering station with hot-air rework capability(Digital temperature control; multiple nozzles preferred)
- Temperature controller / PID feedback(For stable, repeatable heat profiles)
- Microscope or stereo zoom microscope(Magnification 20x–60x recommended)
- Nozzle kit for hot air rework(Assorted diameters (0.5–2.0 mm) for different BGAs)
- Flux (no-clean or rosin-core)(Essential for preventing bridging and aiding reflow)
- Solder paste and/or solder balls for reballing(Use BGA-specific ball grid mix and stencil as needed)
- Thermal putty or silicone spacers(Position the board and isolate heat)
- Kapton tape(Protect sensitive traces and components during heating)
- PCB holder or vise(Stability to prevent board movement)
- ESD-safe mat and wrist strap(Prevent static damage to sensitive parts)
- Isopropyl alcohol (99% preferred) and lint-free wipes(For cleaning flux and residue)
- Desoldering braid or flux remover(Optional, helpful for pads with bridging)
- Preheater or hotplate(Helps reduce board warp on large boards)
Steps
Estimated time: 90-180 minutes
- 1
Prepare the workstation
Power up all equipment, verify temperature stability, and set up ventilation. Arrange tools within easy reach and confirm ESD protection is in place. Place the PCB on a stable stage, with fiducials visible under magnification for alignment.
Tip: Test burn-in on a spare board to ensure your nozzle and controller respond predictably. - 2
Secure the device and identify the target BGA
Mount the PCB firmly and locate the BGA to be serviced. Use tape or a non-conductive clamp to prevent movement during heat. Capture a reference image under magnification for post-rework verification.
Tip: Mark fiducials and keep a photo log of pad conditions before heating. - 3
Calibrate temperature profile for the package
Set the initial ramp to a conservative rate and select a nozzle suited to the BGA size. Calibrate using a reference board to confirm peak temperatures reach the target but do not exceed board limits.
Tip: Document the ramp rate and peak temp for future repairs of similar boards. - 4
Apply flux and align the BGA
Apply a thin, even layer of flux to the solder pads and BGA lands. Align the BGA using fiducials and a microscope to ensure a precise fit before heating.
Tip: Avoid excessive flux; too much can cause foam and misalignment during reflow. - 5
Heat and monitor solder flow
Gradually apply heat to the target area, watching for solder balls to liquefy and reflow without lifting adjacent components. Pause if pad temperature approaches critical thresholds.
Tip: Keep a steady hand and avoid wandering heat across the package. - 6
Cool and inspect under magnification
Allow the board to cool naturally, then inspect the joints for bridging, tombstoning, or insufficient wetting. Clean around the BGA and check for residue that could cause shorts.
Tip: Compare post-reflow images with the reference to spot changes. - 7
Reball or reflow if needed
If reballing, apply solder balls with a stencil; reflow to seat the balls evenly. If reflow sufficed, verify solder joints are uniform and compliant with the board’s pad layout.
Tip: Do not press down on the BGA during reflow; let surface tension do the work. - 8
Final verification and cleanup
Recheck all pads, test continuity, and visually assess the rework zone. Clean flux residues and restore any protective mask. Document results for future repairs.
Tip: Run a functional test on an intact subsystem to confirm stability.
Quick Answers
What is a BGA rework station and why use a DIY version?
A BGA rework station provides controlled heat to remove and reflow BGA packages. A DIY setup lets hobbyists practice with budget gear while learning core techniques like flux management, pad protection, and precise temperature control.
A BGA rework station uses controlled heat to remove and reflow BGA packages. A DIY setup helps hobbyists learn the basics with budget-friendly gear.
Can I safely perform BGA rework at home?
Yes, with proper ventilation, protective equipment, and a disciplined workflow. Start on non-critical boards to refine heat profiles and inspect results under magnification before attempting live repairs.
Yes, at home, but use proper ventilation, safety gear, and test on spare boards first.
What tools are essential for a DIY setup?
A temperature-controlled hot-air tool, a microscope, flux, solder paste or balls for reballing, an ESD-safe work surface, and basic hand tools. Optional upgrades include a preheater and a larger nozzle kit for bigger BGAs.
You’ll need a heat tool, a good magnifier, flux, reballing materials, and an ESD-safe workspace.
What are common signs of pad damage after rework?
Look for lifted copper, broken vias, torn solder mask, or bridging between pads. Inspect with high magnification and compare to pre-rework images to gauge damage severity.
Watch for lifted copper, torn masks, or bridges after rework, and inspect closely with a magnifier.
Is flux necessary for BGA rework?
Yes. Flux reduces oxidation, improves solder wetting, and helps prevent bridging during reflow. Use no-clean flux for easier cleanup if possible.
Flux is essential; it improves wetting and reduces bridging during reflow.
Where can I learn more about BGA safety and handling?
Consult reputable electronics soldering guides and institutional handbooks. Follow best practices for ventilation, PPE, and static control to minimize risk during high-temperature work.
Look up official soldering guides and safety handbooks for best practices in high-temperature work.
Watch Video
Top Takeaways
- Plan each repair with a repeatable heat profile.
- Use magnification to guide removal and reflow.
- Calibrate and maintain equipment for consistency.
- Prioritize safety and proper ventilation.
- Document results to improve future repairs.
