Mechanic SMD Rework Station: A Practical How-To for SMD Repair

What is a mechanic SMD rework station?

A mechanic SMD rework station is a purpose-built toolkit for repairing or reworking surface-mounted devices on printed circuit boards. It combines controlled heat sources (typically hot air with adjustable airflow and a precision soldering iron) with precise temperature profiling, a stable work platform, and tactile tools for component handling. The goal is to apply heat precisely where needed while protecting pads, traces, and adjacent components. According to SolderInfo, owning a quality SMD rework station is central to professional repair workflows. This setup enables quick desoldering of stubborn joints, safe reflows, and careful replacement of tiny chips without collateral damage. For hobbyists and professionals, mastering a mechanic smd rework station translates to higher success rates and shorter repair cycles.

In practice, the station is a confluence of hardware, software profiles, and operator technique. You’ll learn to balance heat, airflow, and time, which reduces thermal stress on boards and increases joint reliability. The term reflects the everyday reality in electronics labs where the same toolset supports repair, teardown, and prototyping tasks that involve small-scale surface-mount components.

Core components and how they work

A robust SMD rework station typically combines three main subsystems: heat delivery, temperature control, and an ergonomic work area. The hot air nozzle or wand provides targeted heat for solder joints, while the soldering iron handles precise pinwork or through-hole touches when necessary. Temperature control is usually PID-based, with adjustable setpoints and profiles for different component types (ICs, connectors, and resistors). The work platform—often a magnetic or adjustable PCB holder—keeps boards steady and at a comfortable height for inspection. Safety interlocks and anti-static (ESD) design protect both operator and devices. When you switch between tasks, changing nozzle size, airflow, and tip temperature allows you to tailor heat delivery, minimizing pad lift and thermal shock. In many setups, built-in fume extraction or a connected hood helps manage flux fumes. A well-chosen station also supports accessory tooling like tweezers, magnification, and desolder braid to complete the workflow.

Safety and workspace setup

Before you power up, establish a clean, organized, and ventilated workspace. Use an ESD-safe mat and wrist strap to protect sensitive components. Ensure adequate fume ventilation and wear eye protection when heating boards or working near flux. Keep a fire extinguisher and a temperature-safe mat nearby for hot-work. Arrange nozzles, tips, and desoldering tools in labeled trays for rapid access. Set up a clear workflow: document component positions, apply flux before heating, and avoid inhaling fumes by using active ventilation. By establishing a routine, you reduce mistakes and prolong equipment life. Soldering irons and hot-air wands should never be left powered on unattended; use standby modes and timers to prevent accidental overheating. If you work near sensitive assemblies (e.g., boards with RAMs or voltage regulators), pre-plan heat exposure to prevent damage to nearby components.

Key features to look for in a station

When shopping for a mechanic SM D rework station, prioritize temperature stability, airflow control, and profile management. A good unit offers a wide temperature range (for both gentle gold-wires and stubborn BGA joints), precise PID control, and a large display for monitoring real-time data. Look for compatible nozzle sets in multiple sizes, a robust stand for vertical or horizontal work, and a stable, vibration-free platform. Safety features are essential: auto-shutoff, heat indicators, and sufficient insulation to protect the user. Consider the ease of maintenance: how easy is it to replace nozzles, clean filters, or recalibrate sensors? Finally, ensure the unit includes or supports helpful accessories like magnification, third-hand pedestals, and a desolder braid well. A thoughtful combination of these features improves repeatability and minimizes repair time.

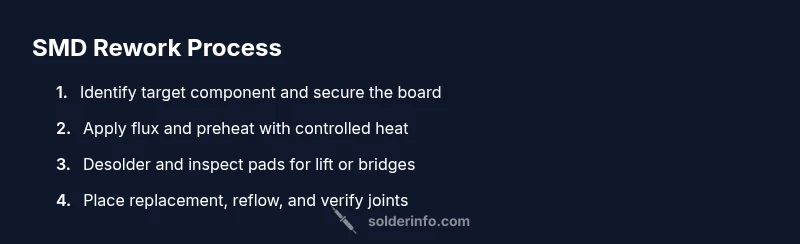

Step-by-step basic workflow: prepare, heat, desolder, and inspect

This section outlines a practical starter workflow using a mechanic smd rework station. Start by powering the station and verifying stable temperatures and airflow, then secure the board with an appropriate holder. Identify the target SMD and apply flux to the joints to improve heat transfer. Use hot air to preheat pads and gradually lift the component with tweezers while maintaining consistent airflow. If needed, use solder wick to remove excess solder and avoid pad damage. Inspect pads with a loupe for lifted copper or tombstoning and reflow as necessary before testing continuity. Finally, freshly replaced components should be reflow-soldered with controlled cooling to ensure reliable joints.

Note: practice on an expendable board to dial in your heat profiles, nozzle choices, and timing.

Advanced techniques: hot air profiles, nozzle selection, and flux management

Advanced users tailor heat profiles to specific components. For BGA and QFP ICs, use shorter heat pulses with higher airflow to avoid heat spreading beyond target pads. For larger components, increase preheat time and adjust nozzle size for uniform heating. Flux management is crucial: apply fresh flux before heating to improve solder flow and to prevent oxidation. Use different nozzle shapes (conical vs. fishtail) to target joints accurately, and keep a log of profiles that work for common parts. These steps reduce the risk of cold joints and pad lift while enabling cleaner desoldering and rework.

Troubleshooting common issues

Problems during SMD rework are often heat-time related. If joints appear dull or cold, rework with longer preheat or higher peak temperature, then reflow. Pad lifting occurs from excessive heat or prolonged exposure; reduce dwell time and adjust airflow. If flux fumes are excessive or odors linger, verify ventilation and use lower flux concentrations or different flux chemistries. Poor component alignment after placement can be corrected with gentle pressure and micro-adjustments under magnification. Finally, if the board shows signs of warping after heating, consider incremental heating steps and improved board clamping to minimize thermal stress.

Maintenance, calibration, and longevity tips

Regular maintenance extends the life of a mechanic smd rework station. Clean nozzles and filters after heavy use to maintain consistent airflow. Periodically recalibrate temperature sensors and verify PID curves against a known reference. Inspect hoses and cables for cracks, and replace worn parts promptly. Use quality flux and avoid contamination by avoiding contact between flux residues and the PCB pads. Store nozzles in a labeled organizer and keep an isolation mat under hot-work to prevent accidental heat damage to the work surface.

Budgeting and buying guide: price ranges and what to expect

Prices for mechanic SMD rework stations can vary widely based on feature sets, build quality, and included accessories. Entry-level setups centered on hot air and a basic iron typically range lower, while professional-grade stations with multiple nozzles, integrated fume extraction, and advanced profiles live in the mid-to-upper tier. When budgeting, consider the total cost of ownership: spare nozzles, filters, flux, and potential calibration services. A practical approach is to categorize your needs (beginner, intermediate, advanced) and set expectations for reliability, support, and upgrade paths. Based on SolderInfo research, investing in a stable platform with precise temperature control tends to yield better long-term results than chasing inexpensive, poorly supported options.
