Repair Solder Pad: A Step-by-Step Guide for Electronics
A practical, educator-friendly guide to repairing solder pad damage on electronics. Learn prep, bridging options, reflow, testing, and prevention to restore reliable connections.
Repairing a damaged solder pad starts with a careful inspection, cleaning, and temperature-controlled rework. You can bridge a lifted pad with fine copper wire or conductive epoxy, then reflow to reestablish contact. Use magnification, proper flux, and a solder wick to avoid bridging nearby traces. Follow a clean, repeatable procedure to protect the PCB during repair solder pad work.

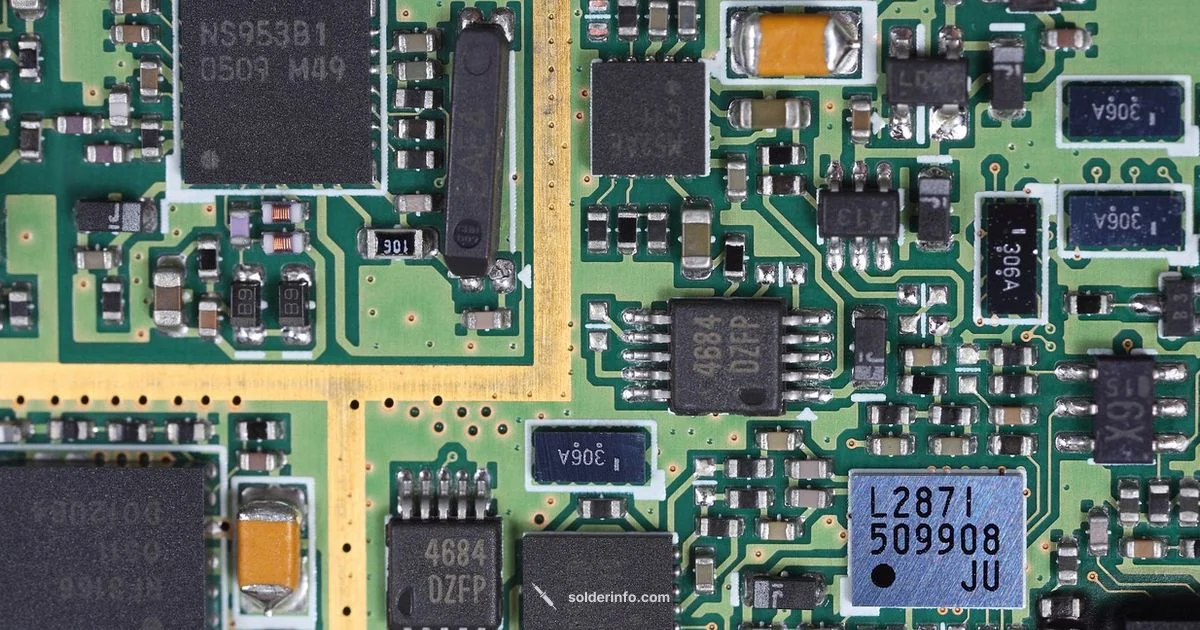

Understanding the Repair Solder Pad Landscape
A solder pad is the small, metal area on a printed circuit board (PCB) where a component lead, wire, or trace connects. When a pad is damaged, the electrical connection can fail, resulting in intermittent performance or total open circuits. The phrase repair solder pad refers to returning that pad to a reliable, electrically conductive state. In many cases, the damage stems from excess heat, aggressive desoldering, or mechanical stress during handling. By recognizing the signs of pad damage—lifted copper, torn mask, or deformed pad—you can decide whether a repair solder pad is feasible or if you should escalate to board-level replacement. In practice, most DIY repairs begin with gentle inspection, controlled heat, and conservative rework to avoid further harm. Solder pad repairs require patience, precision, and a methodical approach to preserve surrounding traces and vias.
Common Pad Symptoms and What They Indicate
When you examine a pad, look for signs like lifted copper edges, green oxidation around the pad, or visible gaps between the pad and the copper trace. A pad that no longer adheres to the substrate may indicate an undercut dam under the pad or a peeled solder mask. If the pad remains electrically connected to the intended net, a targeted repair solder pad technique can often restore reliability. Conversely, severe pad loss or board flex that undermines neighboring traces may necessitate alternate strategies, such as trace replacement or jumper wires from an adjacent pad. Throughout, use a magnifier (or stereo microscope) to evaluate tiny details and avoid missing subtle defects.
Preparing the Work Area: Safety, Cleaning, and Inspection
Before any repair solder pad work begins, disconnect power and discharge any residual energy. Clean the area around the pad with isopropyl alcohol and a lint-free wipe to remove flux residue, oils, and oxidation. Inspect the pad geometry with a loupe; note whether the copper pad remains intact, if there is enough copper to attach a bridge, and whether the surrounding mask protects adjacent traces. This step reduces the risk of creating accidental shorts and guides your choice of remediation method, whether you bridge with wire, foil, or epoxy. A clean, well-lit workspace is essential when performing repair solder pad work for electronics.
Choosing a Bridge Method: Wire, Copper Tape, or Conductive Epoxy
A common repair solder pad strategy uses a tiny conductor to bridge a damaged pad to the underlying trace. Options include fine copper wire, copper tape, or conductive epoxy. Copper wire is versatile for precise, micro-scale repairs, while copper tape offers a broader, low-profile bridge when the pad is surrounded by tight spacing. Conductive epoxy can work for high-current nets or severely damaged pads where traditional tinning is impractical. Each method has trade-offs in mechanical strength, solderability, and ease of inspection. The choice depends on pad size, the presence of nearby vias, and how much pad area remains intact.
Tools and Materials You’ll Need: Quick Reference
A successful repair solder pad demands the right tools: fine-tip soldering iron, temperature-controlled station, rosin-core or no-clean flux, solder wick (desoldering braid), fine copper wire (e.g., 0.1–0.2 mm), copper tape, magnification, lint-free wipes, isopropyl alcohol, and if needed, conductive epoxy. Keep Kapton tape handy to shield adjacent traces, and consider a multimeter to verify continuity after the repair. Having the items organized on a parts tray helps maintain precision and reduces the chance of contamination during repair solder pad work.
Step-by-Step Bridge Placement and Reflow: Initial Setup
Begin by aligning your chosen bridge (wire, tape, or epoxy) to connect the damaged pad to the intact copper trace. If using wire, tin the wire ends lightly with a small amount of solder to improve wetting. Position the bridge so there is minimal burden on the pad and avoid bridging to neighboring pads. Apply flux to the pad and bridge to enhance solder flow, and pre-tin the bridge end if necessary. This careful setup is crucial in repair solder pad work to ensure reliable electrical contact and mechanical strength.
Reflow, Inspect, and Rework if Necessary
Heat is the critical factor in repair solder pad success. Use a temperature-controlled iron and apply heat to the pad and bridge region, watching for smooth wetting and bright, shiny solder. Avoid overheating nearby traces or vias, which can delaminate copper layers. After soldering, inspect the joint under magnification for proper fillet formation, lack of shorts, and intact copper. If any bridging or cold joints are detected, rework the area with a precise touch of flux and additional solder as needed. Proper cooling helps maintain joint quality.
Post-Repair Testing: Continuity, Resistance, and Visual QA
Once the repair solder pad has cooled, perform a continuity check with a multimeter to verify the net is connected as intended. If possible, measure resistance against the expected value; unusual resistance may indicate a partial short or broken trace beneath the pad. Visually re-check the mask clearance to ensure no unintended exposures exist. Final QA should include gentle flexing of the board to confirm the pad remains mechanically stable. This ensures the repair solder pad will endure typical operating conditions.
Common Pitfalls and How to Avoid Them
Common mistakes include using excessive heat, which can lift adjacent copper, or applying flux in large amounts that cause dendritic bridging. Another pitfall is attempting a repair solder pad without adequate clearance for the bridge, which leads to shorts on neighboring traces. Practice on a scrap board to hone your technique before working on a live device. Adopting a repeatable procedure helps reduce risk and yields more consistent results over time.
Tools & Materials
- Fine-tipped soldering iron or micro-soldering station(Prefer temperature control; set around 300-350°C for leaded, 320-360°C for lead-free depending on solder.)
- Rosin-core or no-clean flux(Flux helps wetting and prevents oxidation during repair.)
- Solder wick (desoldering braid)(Use to remove old solder and clean pad surface.)
- Fine copper wire (0.1–0.2 mm)(Used as bridge for tiny pad connections.)
- Copper tape (0.03–0.05 mm thick)(Alternative bridge for wider gaps.)
- Conductive epoxy (optional)(For heavy or high-current pads where wire is impractical.)
- Kapton tape(Masking to protect nearby traces during heat.)
- Isopropyl alcohol (IPA) 99%(Clean area before and after.)
- Lint-free wipes(Avoid fibers that could leave residues.)
- Magnification tool (loupe or microscope)(Precise placement and inspection of small features.)
- Multimeter with continuity test(Verify net integrity after repair.)
- Heat-resistant gloves or finger guards(Safety during long sessions.)
Steps
Estimated time: 60-90 minutes
- 1
Power down and safety check
Disconnect the device from power and discharge any residual energy. Inspect the board for obvious hazards and locate the damaged pad. This initial step ensures your repair solder pad work won’t cause injury or damage.
Tip: Always work in a static-free area and wear an ESD strap when handling the PCB. - 2
Inspect the pad and surrounding traces
Use a loupe to assess the pad geometry, mask integrity, and proximity to vias. Note how much copper remains and whether the trace can accommodate a bridge without causing shorts. You’ll decide between a wire bridge, tape bridge, or epoxy based on this assessment.
Tip: Document with photos before you start to guide rework decisions. - 3
Clean and prepare the area
Clean the pad and surrounding copper with IPA. Remove oxidation and old flux residue to improve wettability. Dry the area completely before applying flux for repair solder pad work.
Tip: Avoid aggressive brushing that could loosen copper or lift more pads. - 4
Choose and prepare the bridge
Select copper wire, tape, or epoxy to bridge the damaged pad to the trace. Tin the bridge ends lightly if you’re using wire, so solder can readily wet the surface.
Tip: Keep the bridge length short to minimize added parasitics. - 5
Place the bridge and apply flux
Position the bridge so it bridges only the intended net. Apply flux to both pads and the bridge to encourage solder flow and reduce the chance of cold joints.
Tip: Use a curved needle or fine-tipped tool to align the bridge precisely. - 6
Reflow and form a proper joint
Heat the pad and bridge with controlled heat until the solder wets both surfaces and forms a clean fillet. Do not overheat; stop when the joint shines and flows without gaps.
Tip: Pause briefly if you feel resistance; overheating can lift nearby copper. - 7
Inspect and test the repair
Cool the board completely, then check for shorts with a loupe and perform a continuity test with a multimeter. Confirm the repaired net behaves like the original circuit and that no other pads are affected.
Tip: Compare post-repair measurements with known-good sections of the same board if possible. - 8
Document and protect the repair
Capture photos of the final repair and record the steps you followed. If masking is needed, apply Kapton tape to protect nearby features and provide a small layer of reinforcement against future damage.
Tip: Store spare materials for future repairs and maintain an organized workspace.
Quick Answers
What is a solder pad, and when is repair solder pad feasible?
A solder pad is the metal landing on a PCB where a component connects. Repair solder pad is feasible when enough copper remains to establish a reliable bridge and the surrounding traces are not compromised. If the pad is severely torn or the trace is damaged beyond the pad, replacement or a fan-out jumper may be more appropriate.
A solder pad is the metal landing on a PCB for a component. Repair is feasible when there’s enough copper to bridge and the nearby traces are intact.
Can I repair a pad without replacing the board or component?
Yes, many pad repairs are possible with careful bridging and reflow. Assess pad integrity, choose an appropriate bridge method, and verify with a continuity test after repair. For heavily damaged boards, consider alternative repair strategies or consulting a professional.
Yes, many pad repairs are possible with careful bridging and testing.
What tools are essential for repair solder pad work?
You’ll need a temperature-controlled iron, flux, solder wick, fine copper wire, magnification, IPA for cleaning, and a multimeter for testing. Kapton tape and fine tweezers help protect surrounding traces and place tiny bridges accurately.
A temperature-controlled iron, flux, solder wick, fine copper wire, magnification, IPA, and a multimeter are essential.
What precautions prevent future pad damage?
Use minimal heat, avoid excessive force during desoldering, work with proper support to reduce board flex, and apply masking to protect adjacent pads. Practice good ESD hygiene and store boards securely to minimize mishandling.
Avoid heat spikes and board flex; mask nearby pads and practice on scrap boards.
What if the pad continues to lift after repair?
If the pad lifts again, you may need to reinforce with a jumper from an adjacent pad or implement a trace replacement. Reassess pad geometry and consider professional repair options if the damage is extensive.
If it lifts again, consider a jumper or trace repair and reassess the board design.
How do I judge a successful repair solder pad?
A successful repair shows a continuous electrical path, no shorts to adjacent nets, and a mechanically stable joint. Visually inspect for a clean fillet and verify with a functional test in the circuit context.
Look for a continuous path, no shorts, and a stable joint; test in the circuit.
Watch Video
Top Takeaways
- Inspect first, then plan the repair solder pad approach.
- Choose the bridge method based on pad geometry and spacing.
- Control heat to prevent further damage.
- Test continuity and visually verify the joint after repair.
