Solder Wick vs Desolder Wick: Practical Comparison

What Are Solder Wick and Desolder Wick?

Solder wick is a braided copper braid used with heat and flux to wick away molten solder from joints. Desolder wick is the desoldering braid variant, often flux-coated to boost capillary action. In practice, the material core is the same, and many brands market the same braid under slightly different names. The practical difference often lies in flux preparation, width options, and how they’re sold rather than a fundamentally different desoldering mechanism. When you’re planning a repair or fabrication task, the choice between bare wick and flux-coated wick depends on your flux preference and the joint geometry. The keyword here is procedure over branding: proper technique multiplies the wick’s effectiveness and reduces the risk of accidental pad lift.

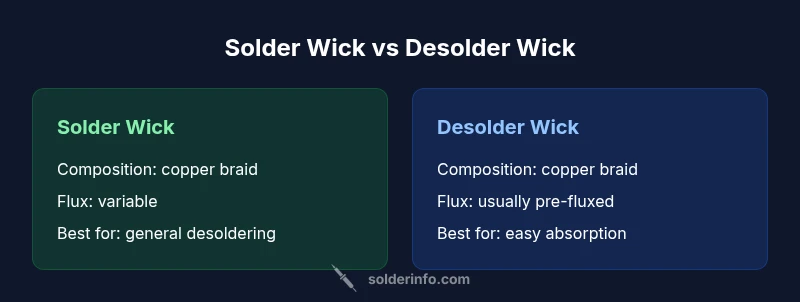

Solder wick vs desolder wick: Do the terms mean the same thing?

Yes in most cases. Desolder wick is simply a descriptor used by electronics suppliers for braid that has flux present to aid solder absorption. Solder wick is the general term for the same braided copper braid used to remove solder. Some kits label one version as “desolder wick” to highlight its intended use, while others simply call it wick or braid. For users, the practical takeaway is to check the flux status and width rather than rely on the name. This matters when cleaning flux residues and choosing a wick that matches joint size.

Material Composition and Flux Coating

Most solder wick braids are copper, with many products tin-plated to improve solder uptake. Flux coating ranges from rosin-based flux to water-soluble chemistries. Bare wick requires an external flux application for optimal performance, while flux-coated wick includes a pre-applied flux layer that lowers prep time and improves capillary action. In rare cases you’ll encounter wick with flux embedded during manufacturing, which should still be cleaned after use. The choice between bare and flux-coated wick often comes down to personal workflow and whether you prefer to control flux application instead of relying on pre-coated braids.

Absorption Mechanism and Performance

Solder wick removes solder through capillary action assisted by flux. When heat is applied to the wick and the joint, molten solder is drawn into the braid along the copper fibers. Flux lowers surface tension and improves wetting, making the wick more effective. Flux-coated wick tends to absorb more solder per pass and can reduce residual bridging on close pads. However, performance still depends on technique: you must avoid overheating pads, use the right width, and avoid leaving the braid on the joint too long, which can overheat pads or lift copper.

When to Use Solder Wick vs Desolder Wick

In practice, you’ll reach for wick when you need to remove a discrete blob of solder, repair a pad, or disentangle a joint without a vacuum pump. For through-hole components, wick works well with moderate heat and fresh flux. For very fine-pitch or multi-layer boards, wick can still be effective if you use the right width and maintain consistent temperature. Desoldering braid is particularly useful when you must remove solder from pads with limited access or when you want to salvage a pad without lifting the copper. In many cases the decision hinges on availability and how you plan to manage flux residue post-desoldering.

How to Choose Width, Flux, and Length

Common wick widths range from 0.5 mm to 3.0 mm. For fine-pitch components and small pads, start with 0.5–1.0 mm; for standard through-hole work, 1.5–2.0 mm often provides the best balance between absorption and control. If you prefer flux-coated wick, select a product with the appropriate flux type for your solder alloy (lead-based or lead-free). Length is usually 12–18 inches per braid; shorter pieces allow easier handling. Always store spools in a dry place and avoid exposing wick to moisture, which can degrade performance.

Practical Techniques: A Step-by-Step Guide

1. Prepare: Clean the joint, apply a small amount of flux to the pad and component leads. 2) Position: Place a small length of wick over the solder joint. 3) Heat: With the iron at the appropriate temperature, bring the tip to contact with the wick and joint, allowing capillary action to draw solder into the braid. 4) Remove: Lift the wick and the joint together, keeping the heat consistent to avoid cold joints. 5) Inspect: Check for leftovers; rework if needed. 6) Clean: Use isopropyl alcohol to remove flux residue. Following this sequence consistently yields reliable results and minimizes pad lift.

Common Mistakes and Troubleshooting

Mistakes include leaving wick on the pad too long, overheating the pad, or using too narrow a braid for a large joint. Troubleshooting: if you see excess flux residue or pad gloss, stop, reapply flux, and rework with a wider braid. If solder sticks to the wick and won’t transfer, the joint may be overheated, or the flux exhausted. Refresh the flux and wick and try again.

Maintenance, Storage, and Safety

Keep wick on a spool in a dry place; seal containers after opening to prevent oxidation and flux degradation. Use eye protection and ensure good ventilation due to flux fumes. Dispose of used wick properly, and avoid reusing heavily soldered or contaminated braid. Regularly inspect your tools and replace worn braids to prevent failure during sensitive desoldering tasks.

Alternatives and Complementary Techniques

Desoldering pumps (solder suckers) and hot-air desoldering are alternatives to wick-based desoldering, often used for larger joints or SMD work. Clean up flux residues with flux remover or isopropyl alcohol, and combine wick with vacuum methods for complex boards. Pair wick with preheating or temperature control to improve results and reduce pad damage.

Best Practices Across Hobbyist and Professional Work

For hobbyists, choose a flux-coated wick for convenience and speed, especially on lead-free solders. For professionals, maintain a range of widths to handle different pads and joints, and keep flux fresh and your tip clean. Always work in a well-ventilated area and follow safety guidelines. When in doubt, practice on a dummy board to calibrate your technique before touching an important assembly.
