SMD Soldering Iron: A Practical Guide for Tiny PCBs
Learn how to choose, use, and maintain an SMD soldering iron for tiny PCBs, with expert tips on tips, temperature control, flux, safety, and workflow.
smd soldering iron is a handheld heating tool designed for soldering surface-mount devices on printed circuit boards. It features fine tips and precise temperature control suitable for tiny SMD joints.

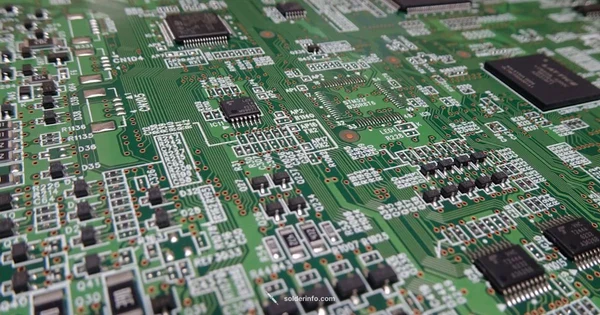

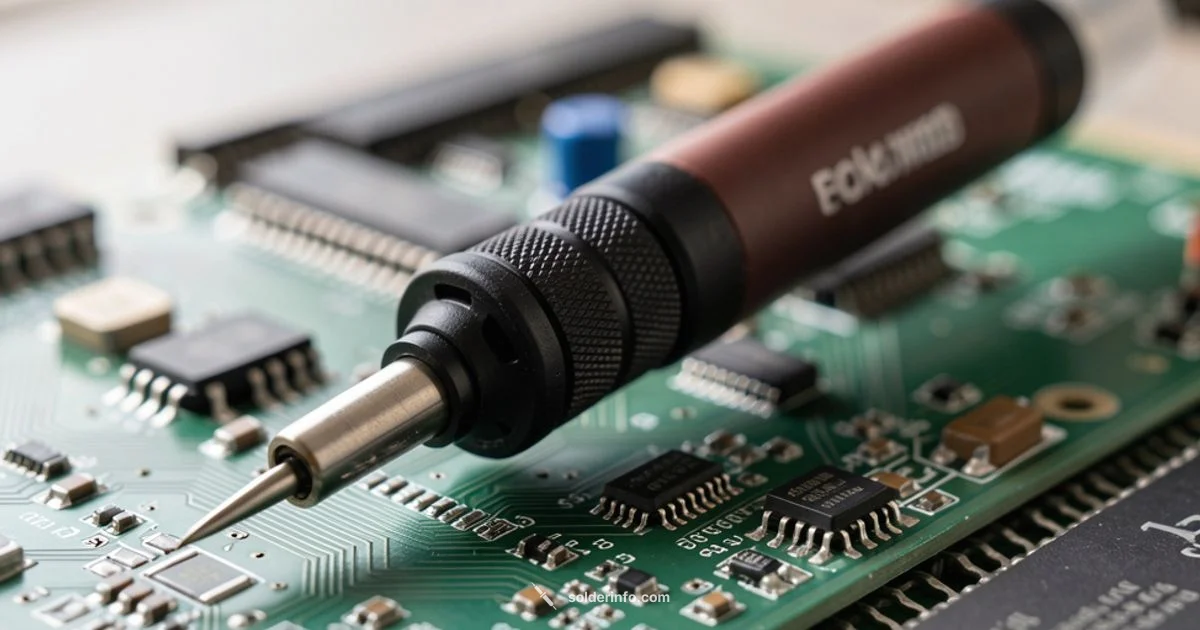

What is an SMD Soldering Iron?
According to SolderInfo, a compact, temperature controlled soldering tool designed for surface mount work, the smd soldering iron excels at local heating of tiny joints. Unlike general purpose irons, it emphasizes tip size, heat stability, and precision. Most models accept micro tips of 0.2–0.5 mm and run at 20–60 watts, providing rapid response for 0402, 0603, and smaller components. When you work with dense PCBs, a controlled iron minimizes heat spread and reduces pad lifting. It is used in conjunction with flux and resin-core solder to form reliable joints. For hobbyists and professionals alike, mastering an smd soldering iron opens up reliable assembly and quick rework of surface-mount packages. This specificity matters in tight spaces where conventional irons fail to deposit heat precisely.
How an SMD Soldering Iron differs from other tools
An SMD soldering iron is tailored for precision and small form factor. It delivers heat directly to the joint via a fine tip, offering control that hot air stations cannot match for single tiny joints. In contrast, a hot air rework station uses a nozzle to reflow multiple pads simultaneously, which can risk adjacent components and traces. Compared with a general hobby iron, the SMD variant emphasizes higher tip control, faster heat response, and smaller heat zones. The result is cleaner joints on tiny packages such as 0402 and 0603, with less collateral heat and reduced risk of pad lifting. In professional electronics prototyping, this distinction translates into higher yields and faster iteration. The SolderInfo team notes that choosing the right tool for the job saves time and reduces damage during assembly and repair.
Core features to look for in an SMD Soldering Iron
Seek temperature control with a stable setpoint, a comfortable ergonomic handle, and a selection of micro tips suitable for tiny pads. Practical irons offer adjustable temperature ranges roughly from 200 to 450 Celsius, rapid heat up, and good heat recovery. Look for 20–60 watt power, a grounded power cord, ESD-safe construction, and easy tip interchange. For extended life, choose irons with compatible tip families and reliable tip cleaning systems. The ideal model also supports quick tip changes without overheating the finger and provides clear temperature readouts. A good iron is a balance of precise heat, tip versatility, and user comfort, enabling consistent quality across 0402, 0603, and smaller components.
Tip sizes and selection for common SMD tasks
Tip size governs heat concentration. For 0402 and 0603 parts, many technicians prefer a 0.3–0.4 mm chisel or conical tip; for the smallest 0201 parts, a 0.2–0.3 mm tip is often best. When larger pads are involved, a 0.5 mm tip can be efficient. Curved or angled tip shapes help reach tight corners on dense boards. Always keep spare tips on hand and factor in tip life when budgeting a workbench. Practice swapping tips with the iron powered down to avoid accidental burns or tip damage.
Temperature control and stability for consistent joints
Stability at the contact point is essential. Start with a moderate setting and adjust after observing wetting and solder flow. For leaded solder, many hobbyists start around 300–320 Celsius; for lead-free alloys, higher temperatures around 340–360 Celsius are common, but always refer to the solder manufacturer recommendations. A well calibrated iron maintains a steady heat zone with minimal overshoot, reducing the risk of thermal shock to delicate components. Keep the iron tip clean and tinned to sustain thermal efficiency through a long session.
Flux and solder types for SMD work
Flux is your ally for clean joints and reliable wetting. Rosin-core solders are common, but lead-free variants may require higher temperatures and more flux to achieve the same wetting. No clean fluxes simplify post assembly cleaning, while water-soluble fluxes demand washing after soldering. Apply flux sparingly to pads, and avoid excessive flux buildup near critical joints. For most SMD jobs, use thin, flux-coated solder wire or fine solder wire (0.6–0.8 mm is too large for tiny pads). Keep a supply of solder wick for desoldering as needed.
Techniques for reliable joints: tinning, preheating, and anti-bridging
Begin with a clean, tinned tip to improve heat transfer. A light preheating step near large copper areas can help parts settle without cold joints; avoid preheating the entire board. Place the component quickly, apply a small amount of solder to the tip-pad interface, and drag the tip away to capillary action. For densely spaced pads, pause after wetting and inspect for bridging; if necessary, wick away excess solder with desoldering braid. Practice calm, deliberate moves and maintain a steady hand to improve success rates.
Maintenance and safety to extend iron life
Keep the tip clean with brass shavings or a damp sponge and re-tin after cleaning. Store tips in their designated holders to avoid contamination. Replace worn tips promptly because dull edges reduce heat transfer efficiency and increase the risk of cold joints. Practice safe soldering: work on a grounded mat, wear eye protection, and ensure good ventilation when using flux. Inspect the cord and plug for wear, and never tug the cord to reposition the iron.
Practical workflow for a tiny PCB assembly with an SMD iron
Start by organizing components into labeled trays, then apply a tiny dot of flux on each pad. Pre-tin the iron tip, heat a joint briefly, place the component, and feed a small amount of solder to the tip-pad interface. Move to the next joint without lingering on any single pad to avoid overheating surrounding traces. Inspect joints under magnification for proper wetting and tombstoning; rework any suspect joints with flux and wick. Finish with a quick clean and inspection, removing flux residues to prevent corrosion. This workflow keeps heat localized and improves yield on compact boards.
Quick Answers
What is the difference between an SMD soldering iron and a hot air rework station?
An SMD soldering iron heats individual joints directly with a fine tip, providing precise, localized heat ideal for small components. A hot air rework station blows heated air to reflow larger areas, which can affect nearby pads. For most fine work, a quality iron plus flux is sufficient.
A soldering iron heats each joint directly with a tip for precise control, while a hot air station reflows larger areas with heated air, which can impact nearby parts.
What tip size should I start with for 0402 components?
For 0402 parts, start with a 0.3 to 0.4 millimeter tip. It concentrates heat well without risking pad damage. Have a 0.2 to 0.3 mm tip handy for the smallest parts.
For 0402 parts, use a 0.3 to 0.4 mm tip, and keep a 0.2 to 0.3 mm tip ready for tinier parts.
Can I use lead-free solder with an SMD soldering iron?
Yes, lead-free solder can be used with an SMD iron. It requires slightly higher temperatures and careful fluxing to achieve reliable joints. Always follow the solder manufacturer's recommendations.
Yes, you can use lead-free solder; it usually needs higher temperatures and good fluxing for solid joints.
How can I prevent solder bridges on dense pad patterns?
Keep tips fine and heat application short. Apply flux sparingly, place components carefully, and avoid feeding large amounts of solder to joints. If bridges form, wick the excess solder away with desoldering braid and inspect under magnification.
Use a fine tip, apply flux, and place components with care. If a bridge forms, wick it away with braid and inspect closely.
What temperature should I set for most SMD work?
A common starting point is around 300–320 Celsius for leaded solder and 340–360 Celsius for lead-free solder, adjusting based on flux and pad sensitivity. Always refer to the solder manufacturer’s guidelines and monitor joints closely.
Typically start around 300–320 C for leaded solder or 340–360 C for lead-free, then adjust as needed.
How should I clean and tin the iron tip?
Clean the tip with a damp sponge or brass shavings, re-tin with a light coat of solder, and store when cool. Regular maintenance preserves heat transfer and tip life.
Wipe the tip on a damp sponge or brass pad, then tin it lightly and store safely.
Top Takeaways
- Choose a temperature controlled iron with fine tips (0.2–0.4 mm) for tiny SMD pads.
- Use flux and precise solder to ensure clean joints and to prevent bridges.
- Practice on test boards to master tip control, heating, and rework techniques.
- Maintain tips by cleaning, tinning, and replacing worn tips to sustain performance.
