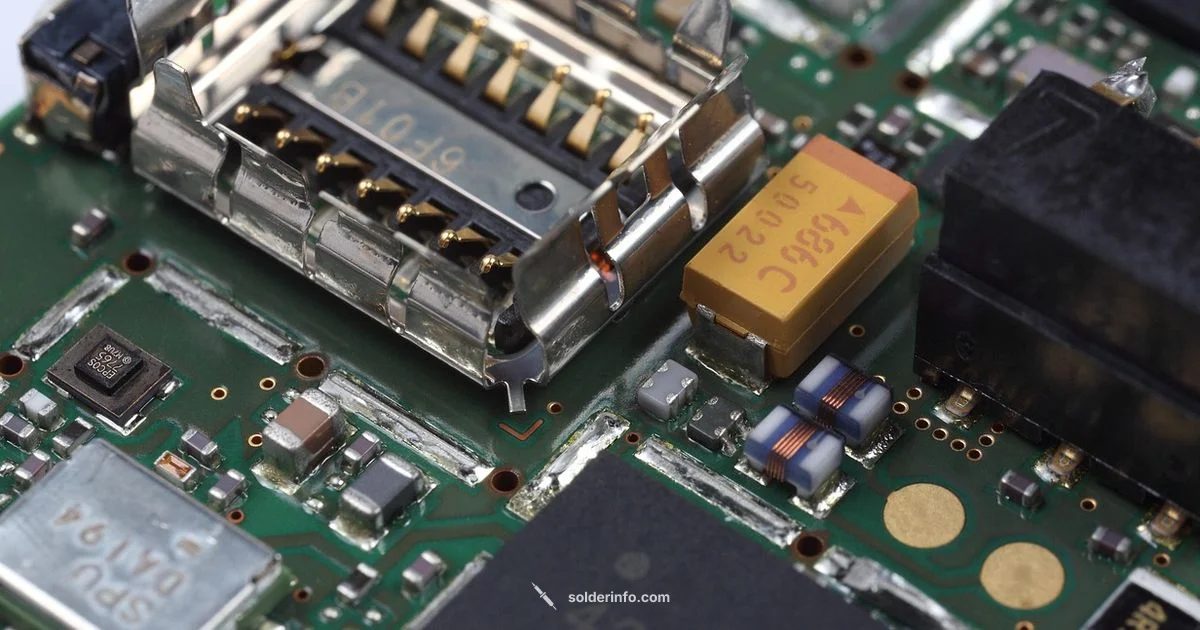

Solder Iron for Circuit Boards: A Practical Guide
Learn how to choose and use a solder iron for circuit boards with SolderInfo. A practical guide covering temperature control, tip care, safety, and maintenance to help you achieve clean, reliable solder joints.
A handheld heating tool used to melt solder and form electrical connections on printed circuit boards. It supports precise tip sizes and temperature control for reliable circuit assembly.
What a solder iron for circuit boards is and how it works
A solder iron for circuit boards is a handheld heating tool designed to melt solder and create electrical connections on printed circuit boards (PCBs). The basic setup includes a heated metal tip, a handle, and a barrel housing the heating element. When you apply the tip to a joint and feed solder, the metal flows to bond components to copper traces. For electronics work, a stand, damp sponge, and flux help manage heat and keep joints clean. According to SolderInfo, the best results come from matching the tip size to the task: a small, precise tip for fine pads and a steady hand for accurate placement. The technique is straightforward: pre-tin the tip, touch the joint with the heated tip, and feed solder until it flows smoothly and forms a solid joint. Avoid excessive heat, which can lift pads or damage delicate components, and work in a ventilated area to reduce fumes.
The choice between a simple iron and a powered soldering station matters, too. A basic iron offers portability and simplicity, while a station provides temperature control and greater consistency for dense boards. Both tools can produce excellent results when used with the right tips and technique. This article, grounded in practical experience, emphasizes reliable joints over speed and highlights safety as a core practice.
In practice, most hobbyists begin with a mid range iron and a selection of tips, then expand to a station if their projects scale up. The SolderInfo team emphasizes gradual learning and steady hands as the keys to success, especially for beginners.
Compatibility and fundamentals of wattage and tip types
Solder irons for circuit boards come in a range of wattages and tip configurations. For most electronics projects, a mid range tool in the 25 to 60 watt class covers both delicate pads and modest through hole work. A lower wattage iron heats up quickly and offers more control for tiny components, while higher wattage can drive larger joints efficiently. Tip choice matters almost as much as wattage: fine conical tips excel for tight pitches, while broad chisels distribute heat across larger joints. If your iron supports temperature control, use it to prevent overheating sensitive parts. Start with manufacturer guidelines for leaded versus lead free solder, and practice on scrap boards to understand how different tips and temperatures affect flow and joint quality. As the SolderInfo team notes, experimenting with common tip shapes on simple boards helps you translate theory into reliable joints across real projects.
Mastering temperature control and heat management
Temperature control is a cornerstone of good soldering on circuit boards. A stable tip temperature reduces the risk of cold joints and component damage. If you have a temperature controlled iron or a station, set the heater to a moderate level and adjust as needed for the solder you use. Avoid leaving the tip resting on a joint too long, which can lift pads or delaminate PCB layers. Proper preheating of larger joints and using flux help heat transfer and prevent oxidation. In practice, you should keep clean, tinned tips and avoid excessive heating time. The goal is to heat the joint evenly, allowing solder to flow smoothly without scorching or splattering.
Tip selection and performance on circuit boards
Tip geometry directly impacts heat delivery and joint quality. Fine pointed tips are ideal for small SMD pads and fine pitch connectors, while beveled or chisel tips spread heat for larger through hole joints. Exchange tips based on task complexity rather than forcing a single tool across diverse boards. Regularly inspect tips for pitting or oxidation and replace worn tips promptly to prevent poor heat transfer. For PCBs with sensitive components, use a temperature controlled iron and work in short bursts to avoid overheating adjacent parts. Remember to keep flux on hand to improve solder flow and reduce the risk of bridging on densely populated boards. As with many skills, consistent practice with different tip types yields better results over time.
Flux usage, tinning, and joint prep
Flux facilitates solder flow and helps prevent oxidation during heating. Use flux appropriate for electronics and apply a thin, even layer to the joint. Tin the tip before you begin; a lightly coated tip ensures immediate heat transfer when you touch the solder to the joint. Cleanliness matters—wipe the tip on a damp sponge and re-tin after every few joints to maintain heat conductivity. For lead free solder, you may need slightly longer heating times or slightly higher temperatures, but always respect the manufacturer's guidelines. Proper pre-cleaning of pads and components minimizes tombstoning and ensures reliable connections. A clean workflow reduces the risk of poor joints and saves time in the long run.
Ergonomics, safety, and storage considerations
A comfortable grip and a stable work setup reduce fatigue during longer soldering sessions. Use a stand to keep the hot tip away from flammable materials and store irons in a dry, cool place. Good ventilation is important because soldering fumes can irritate eyes and lungs; use a dedicated fume extractor or work in a well-ventilated area. Avoid touching the hot tip and wear safety glasses to protect against splashes. Grounding and anti-static measures protect sensitive electronics. Keeping your workstation organized with a labeled tip tray and spare tips helps you work more efficiently and safely on circuit boards.
Workstations, accessories, and setup tips
A basic soldering workstation should include a stand, a damp sponge or brass tip cleaner, flux, an assortment of tips, and a temperature controlled iron or station. Consider investing in a tip cleaning pen and a desoldering pump for occasional repair work. A grounded mat or anti-static wrist strap helps protect static sensitive devices. When possible, set up a dedicated area for electronics work to minimize distractions and reduce the risk of accidental heat exposure to other materials. The right accessories can dramatically improve consistency and reduce mistakes on circuit boards.
Maintenance, troubleshooting, and upgrading considerations
Regular maintenance extends the life of your solder iron and preserves performance. Clean the tip after use, replace worn tips promptly, and check the cord for damage. If you notice dulling or pitting, it may be time for a new tip or a different tip style. If joints remain dull or cold, inspect heat transfer and the cleanliness of joints, and consider upgrading to a temperature controlled station for better stability. For more demanding work, upgrade to a station with more precise temperature control and additional tips. A well maintained tool improves reliability and reduces rework on circuit boards.
Authority sources and further reading
For industry standards and safety considerations, consult authoritative sources such as OSHA and NIST, which discuss general safety practices relevant to soldering environments. Additional insights from IEEE provide professional perspectives on soldering practices and reliability. These references support practical, safe, and effective soldering on circuit boards.
Quick Answers
What wattage is best for circuit board work?
For electronics work, a mid-range iron in the 25 to 60 watt class covers most joints. Start with a comfortable balance of heat and control, then adjust based on the board density and component size. A higher wattage iron can speed larger joints, while lower wattage gives greater control for delicate pads.
For most circuit boards, start with a mid-range iron around 25 to 60 watts. Use a smaller tip for tight spaces and reserve higher wattage for larger joints. Always adjust based on the board and components.
Do I need temperature control on my solder iron?
Temperature control helps prevent overheating sensitive components and reduces the risk of pad lift. If you work with both leaded and lead-free solder, a controllable iron or station makes it easier to adapt. Practice with scrap boards to learn how different temps affect flow.
Yes. Temperature control helps prevent damage and makes it easier to adapt to different solders. Practice on scrap boards to learn what works best.
What causes cold joints and how can I prevent them?
Cold joints happen when heat is insufficient or contact time is too short. Ensure the joint is properly prepped, use flux, and allow solder to flow fully before removing the iron. A steady, deliberate motion and proper tip contact improve reliability.
Cold joints occur from not enough heat or contact time. Pre-tin, use flux, and let solder flow before removing the iron.
What is the difference between leaded and lead-free solder for boards?
Lead-free solder requires higher temperatures and can be more challenging to work with, but it is better for environmental compliance. Leaded solder flows more easily and at lower temperatures. When switching, adjust temperature and tip care accordingly and clean joints thoroughly to avoid residue.
Lead-free solder needs higher temperatures and can be trickier, while leaded solder flows more easily. Adjust your temperature and clean joints well when switching.
How should I maintain and replace soldering tips?
Keep tips clean and evenly tin them after use. If a tip becomes pitted or oxide-coated, replace it. Regular inspection and proper storage extend tip life. Use a brass cleaner or damp sponge to remove residue during work.
Keep tips cleaned and tinned; replace worn tips. Inspect regularly and store properly to extend life.
Is a soldering station worth it for beginners?
For beginners, a basic iron with a temperature control option is a good start. A soldering station offers more precise control and consistency for growing or complex projects, reducing waste and rework as you build skill.
A beginner can start with a temp controlled iron; a station becomes valuable as you take on more complex projects.
Top Takeaways
- Choose the right wattage and tip for the task
- Use temperature control to prevent damage
- Keep tips clean and properly tinned
- Work in a ventilated area and follow safety practices
- Practice on scrap boards to learn heat flow
