When to Use Solder Paste: A Practical SMT Guide
Learn when to use solder paste for surface mount assemblies, its benefits, limitations, and tips for reliable joints in electronics projects.
Use solder paste when you are assembling surface mount components, especially fine pitch devices, to apply solder without liquid flux. It is ideal for reflow soldering, prototypes, and rapid builds; choose a compatible stencil, paste type, and appropriate reflow profile. Avoid paste on through hole parts or large heat sensitive components. It requires careful stencil alignment and storage of paste to prevent drying.
Understanding when to use solder paste
The phrase when to use solder paste guides practical decisions for SMT assembly. For hobbyists and professionals, solder paste is the primary method for depositing solder on surface mount pads, especially when components have fine pitch or when you need consistent deposits across many boards. Paste combines solder powder with a flux carrier, enabling printing through a stencil and subsequent reflow. That means you can achieve uniform solder volumes and fillets without manually placing liquid flux or applying individual droplets. According to SolderInfo, the key trigger is a mix of component size, pad geometry, and production tempo. If you are placing hundreds of identical boards or prototypes with footprints down to 0402 or 0201, paste prints reduce operator variability and speed up assembly. However, it is not a universal solution. Through hole devices, large heat sinking parts, or scenarios requiring high mechanical strength may benefit more from wave soldering, hand soldering, or alternative deposition methods. In sum, use solder paste when your design and process call for precise, repeatable SMT joints across small footprints, with a compatible stencil and reflow plan.
Choosing the right solder paste
Solder paste comes in several formulations and grades. The two broad categories are lead free and lead based, with most modern boards using lead free SAC alloys. The flux base can be no clean or water soluble; no clean is common for consumer electronics because it leaves minimal residue after reflow. Paste viscosity and rheology matter for printing quality; lower viscosity allows flow through fine features while higher viscosity supports thicker deposits on larger pads. Particle size and alloy type influence slump and bridging, so choose a paste that matches your chip scale and solder mask design. Consider the environment where the board is manufactured; if you work in a workshop with metal dust or temperature swings, select a paste that tolerates storage and is easy to clean. Always check the stencil thickness and the recommended deposition pattern from the paste manufacturer. In practice, testing a small array helps confirm print quality before a full run. This selection step is essential for reliable joints and consistent reflow behavior.
Stencil design and deposition
Stencil design and print technique determine how much solder actually ends up on each pad. Align the stencil with the PCB using fiducials, then fix the assembly to prevent shift during printing. When printing paste, use a consistent squeegee angle and pressure to prevent air gaps and smearing. Print pressure should deposit enough paste to fill pad cavities without causing excessive height that can bridge neighboring pads. After printing, inspect the deposit under magnification. A well printed board shows uniform blobs centered on each pad with clean edges. If the paste sits too high or too low, adjust stencil thickness or print speed. Maintain a clean stencil surface, wipe away dried paste, and avoid touching deposit with bare fingers. For dense boards, consider multiple smaller prints to maintain control and avoid short runs that waste paste and time.
Solder paste vs flux: key differences
Solder paste includes a flux carrier and solder particles to form joints during reflow, whereas flux alone acts as a chemical cleaner and heat transfer aid. Paste works with stencil printing and reflow ovens to produce uniform joints in SMT footprints. Flux alone requires manual application or selective dispensing and is often used for hand soldering or through hole repairs. Paste provides repeatability across a batch, especially on small pads. However, paste printing can be more sensitive to stencil wear, misalignment, or contamination. In contrast, liquid flux is forgiving for large joints, but it can produce uneven deposition on tiny patterns if not carefully controlled. No clean flux leaves a residue that is generally harmless and easy to remove during cleaning or with mild solvents. When comparing, paste is a better match for repeatable SMT assemblies with consistent print volumes, while flux provides flexibility for more manual processes or mixed technology boards.
Storage, shelf life, and handling
Proper storage protects solder paste from drying out and chemical breakdown. Store unopened syringes or jars in a cool, dry place away from direct sunlight. Once opened, refrigeration is common to slow aging and preserve print performance, but allow the paste to come to room temperature before use to avoid condensation on boards. Avoid cross contamination by using dedicated utensils and containers for each paste type. Return unused paste to its original container and reseal quickly. Keep containers closed when not in use and monitor the shelf life printed on the package. Label each batch with a date to track age. If paste shows a dry crust or has changed color or smell, discard it and replace with fresh material. Proper handling ensures consistent print quality and reduces the risk of defects in production runs of boards.
Reflow profiles and curing for paste
Reflow is where solder paste achieves the final joint shape and strength. A typical profile includes a gentle preheat ramp to activate flux, a soak to remove volatiles, a peak temperature to melt solder, and a controlled cool down. The exact temperatures and times depend on the paste formulation, board material, and solder alloy. Use a programmable reflow oven or hot plate with a controlled ramp to avoid thermal shock and tombstoning on small resistors. For lead free pastes, take care to achieve enough time at peak to ensure proper alloying. If panels run too quickly through the oven, joints can be dull and globbed; too slow, bridged pads may occur. After reflow, allow boards to cool on an anti-stick surface to minimize thermal shock. Document the profile for each paste lot so future runs produce consistent joints. A good profile reduces defects and improves long term reliability.
Industry applications and best practices
From prototyping to production, solder paste streamlines SMT assembly across electronics, jewelry, and even medical devices where small components demand precision. In electronics, paste supports rapid iteration during design validation and enables high throughput in manufacturing. In jewelry, fine modules and decorative circuits demand precise deposits while avoiding excessive solder waste. In plumbing, the concept of paste printing translates to similar deposition methods for micro joints on small components. Practice building a small test panel to validate the paste type and stencil design before scaling up. Build a library of deposit patterns for common footprints and keep a log of results to improve yield. Maintain a clean workspace and use non-conductive trays to avoid accidental contact with fresh joints. The goal is reliable joints with minimal post rework and predictable performance for end users. SolderInfo notes that aligning process, materials, and tooling is the key to success across sectors.
Troubleshooting common paste issues
Even well planned paste work can encounter issues. Bridges occur when paste flows into adjacent pads; reduce paste volume and ensure stencil clearance. Void formation can be due to poor paste rheology or inadequate reflow; review the paste specification and adjust stencil and print parameters. Solder balls indicate excess solder or poor stencil relief and require cleaning and reprinting. Slumping occurs when paste spreads too much during reflow; verify paste viscosity and reflow speed. Poor wetting may stem from surface cleanliness, oxidized pads, or insufficient preheat. Inspect pads for contamination and rework if needed. Always use fresh flux and clean the stencil between runs. In production, implement a defect tracking system and run regular audits of equipment and materials. By adjusting the variables stepwise, you can isolate the root cause and restore solder joint quality.
Safety, disposal, and environmental considerations
Solder paste handling involves chemicals and heated tools, so follow basic safety rules. Wear eye protection, gloves, and ventilation when using flux vapors. Keep fumes away from open flames and avoid inhaling aerosolized particles. Store and dispose of paste according to local regulations and manufacturer recommendations. Do not reuse dried paste. When cleaning prints, use compatible cleaners and avoid harsh solvents that can wear away soldermask and pads. Trash or recycle packaging in accordance with local rules. Maintain a clean workspace to minimize contamination. In addition to safety, consider environmental aspects such as waste minimization and reuse policies for spent flux. By following standard practices, you reduce risks to yourself and others while maintaining high quality joints.
Case study: from prototype to production using solder paste
A small engineering team began using solder paste to prototype a new SMT board. They printed a 0.8 mm pitch device with a standard no clean paste, aligned a stainless stencil with fiducials, and printed with a controlled squeegee pass. After a quick preheating stage, the board reflowed in a convection oven, producing uniform joints across the footprint. The team iterated on stencil thickness and pattern to minimize bridging and improve yield. By documenting the paste lot, storage conditions, and oven profile, they established a repeatable flow that could scale to low volume production. Within a few weeks, they transitioned to a production line with the same paste type and a templated print process. The result was reliable joints with minimal manual rework and faster builds, validating the approach for future projects. This case highlights the value of testing, documentation, and disciplined process control when using solder paste.
Tools & Materials
- Solder paste (lead-free SAC or leaded alloy depending on board requirements)(Select paste matching alloy and flux type; store cold and avoid freeze.)
- Stencil for SMT footprints(Thickness matched to pad size; typical 0.1–0.2 mm for 0.5–0.6 mm pitch.)
- Stencil printer or squeegee(Ensure clean, balanced prints; calibrated pressure.)
- Flux remover and wipes(For cleanup and residue removal if needed.)
- Magnification tool (loupe or microscope)(Inspect prints and joints for defects.)
- Isopropyl alcohol or specialty cleaner(Use to clean stencil and boards between runs.)
- Reflow oven or hot plate with temperature control(Select profile based on paste and board material.)
- Tweezers and PPE (gloves, safety glasses)(For handling boards and paste containers.)
- Printed circuit boards with fiducials(Ensure clean pads and defined reference marks.)
- Solder wick or flux remover for rework(Use to fix bridging or tombstoning if detected.)

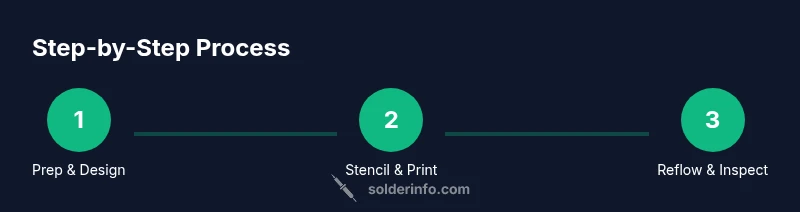

Steps
Estimated time: 60-90 minutes
- 1
Prepare workspace and materials
Set up a clean, static safe workspace and verify the paste type and stencil are ready. Collect boards, stencil, print tools, and inspection gear before starting. This reduces interruptions and helps you achieve consistent deposits.
Tip: Verify that the workstation is non static and the board is flat and supported. - 2
Align stencil to PCB and secure
Place fiducials in view and align the stencil carefully with the PCB. Secure the stencil to prevent movement during printing. Misalignment here leads to misprinted joints across the board.
Tip: Use a jig or tape to fix the stencil in place for repeatable prints. - 3
Deposit paste through stencil
Load the paste printer or squeegee and perform a controlled pass to fill each pad. Maintain steady pressure and a consistent angle to avoid air gaps or excess paste. Check that each pad has a visible, centered deposit.
Tip: A gentle, repeated pass can improve print consistency on dense footprints. - 4
Inspect paste deposition
Examine each pad under magnification. Uniform deposits centered on pads are ideal; bridges or overly tall blobs indicate printing issues that require adjustment of stencil, paste viscosity, or print speed.
Tip: If needed, wipe the stencil and reprint a test section before continuing. - 5
Preheat and reflow
Place the board into the reflow environment and follow the prescribed ramp and soak profile. Maintain even heating to avoid tombstoning on tiny components and ensure complete solder alloying.
Tip: Do not rush the ramp; abrupt temperature changes can cause defects. - 6
Cool and inspect joints
Allow the boards to cool gradually after reflow and then inspect for uniform joints and clean edges. Look for proper fillets and absence of bridging. If any joints appear deficient, plan a controlled rework.
Tip: Use a magnifier for a thorough pass before proceeding. - 7
Store leftovers and clean tools
Seal and refrigerate any unopened paste and promptly clean tools and stencil after use to prevent dried paste and residue buildup. Label containers with batch information for traceability.
Tip: Always discard paste that appears dry, crusty, or discolored.
Quick Answers
When should I use solder paste instead of liquid flux
Solder paste is best for surface mount assemblies with fine pitch parts. It prints through a stencil and reflows to form joints, offering repeatability for many boards. Flux alone is more flexible for manual or through hole work but lacks the deposition precision of paste.
Solder paste is ideal for SMT printing and reflow; flux handles manual or through hole steps.
Can solder paste be used for through hole components
Through hole components generally require different methods and higher heat input. Paste printing through a stencil is not designed for large through hole joints. Consider conventional soldering or wave soldering for through hole assemblies.
Paste is not typical for through hole parts.
Is solder paste suitable for lead free alloys
Yes, solder paste is commonly formulated for lead free alloys such as SAC. Ensure your paste choice and reflow profile match the alloy used on the board to achieve reliable joints.
Lead free pastes are standard for modern boards.
What affects shelf life of solder paste after opening
Shelf life depends on storage conditions and paste type. Refrigerated paste lasts longer than room temp. Always check the batch date and discard paste that shows drying, color change, or odor.
Open paste should be stored cold and inspected for changes.
Should I refrigerate solder paste
Refrigeration slows aging and preserves print performance. Bring to room temp before use to avoid condensation on boards and ensure consistent deposition.
Keep it cold, but warm it up before using.
Watch Video
Top Takeaways
- Paste enables precise SMT deposition
- Choose paste type to match alloy and flux
- Stencil alignment is critical for print quality
- Proper storage maintains print performance
- Follow a validated reflow profile for reliability
