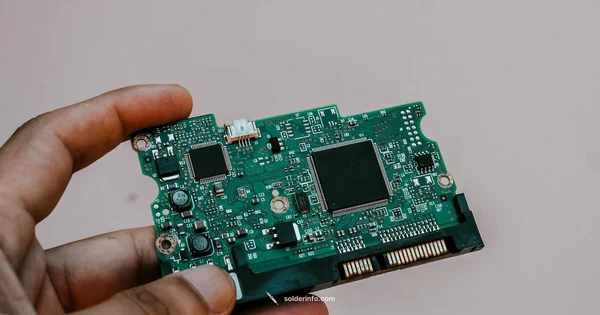

This guide walks you through using solder paste for surface-mount electronics. You’ll learn paste selection, stencil setup, precise deposition, and a safe reflow process. Practical tips help you avoid common defects like bridging, insufficient coverage, or tombstoning, with safety and reliability at the core, per SolderInfo guidance.
What is solder paste and when to use it
Solder paste is a viscid mixture of tiny solder spheres suspended in flux. It is designed for surface-mount technology (SMT) and is deposited onto copper PCB pads via a stencil. When heated, the paste reflows to form metal joints. For electronics projects, paste solder helps create compact, repeatable joints on dense boards. According to SolderInfo, understanding paste composition and flux chemistry improves deposition predictability and reflow behavior. In practice, you’ll see paste selection, stencil preparation, and reflow planning determine the reliability of your joints.
Paste selection and particle size
Paste selection hinges on the alloy system, flux chemistry, and the board's thermal profile. Most hobbyist and professional electronics projects use lead-free pastes with flux formulated for reliable wetting on copper pads. Choose a paste with a clean flux residue and good stencil printability. The particle size influences print resolution: finer powders print more precisely on small pads, while coarser powders can be used for larger features. Always check the manufacturer's datasheet for shelf life, storage temperature, and recommended reflow parameters.

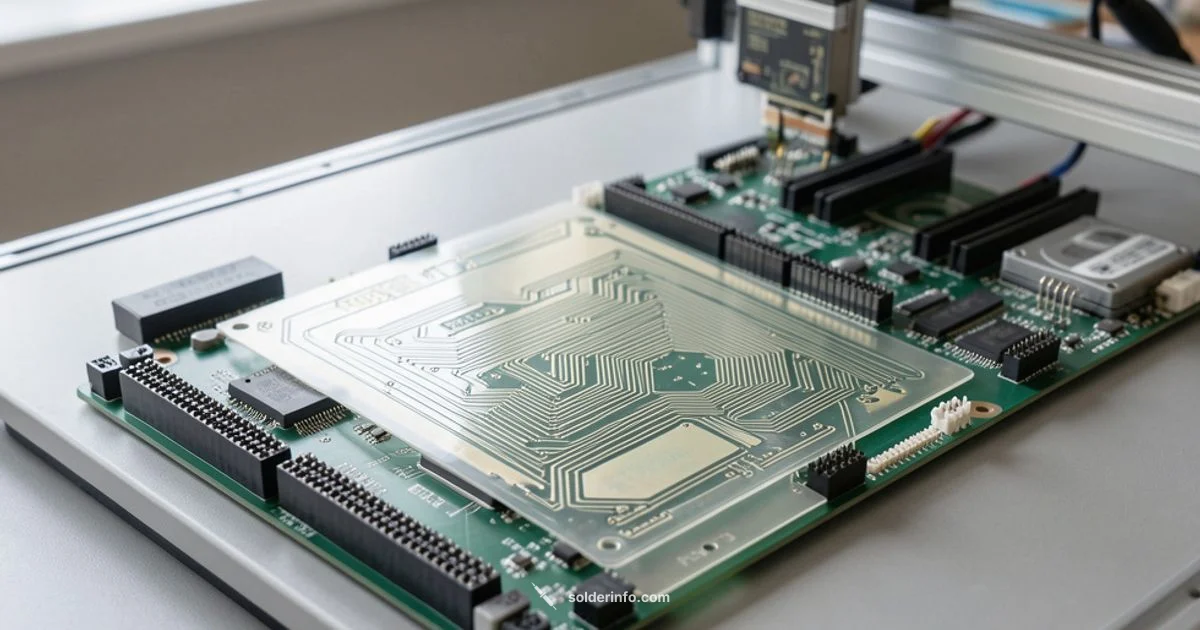

Stencil setup and deposition techniques
Stencil setup starts with a clean, aligned mask that matches the PCB pads. Cleanliness, proper alignment marks, and secure clamping prevent misprints and smearing. When depositing paste, use a printer or a clean scraper to spread evenly in a single, deliberate pass. After deposition, inspect the printed pattern under magnification to confirm pad coverage and avoid bridging. If you notice irregularities, stop and remedy before continuing.
Reflow basics and temperature profiles
Reflow heating transforms solder paste into a molten solder fillet that bonds components to pads. Follow the paste manufacturer’s recommended reflow profile and your board’s thermal limits, using steady ramp rates and controlled peak temperatures. Avoid rapid temperature changes that can cause delamination or tombstoning in small components. If you don’t have a dedicated reflow oven, a temperature-controlled hot air station or even a carefully managed hot plate can be used for small boards, but reliability may vary.
Inspection and defect mitigation
After reflow, inspect joints for order, wetting, and uniform fillets. Look for bridging, icicles, or insufficient solder. Clean flux residues as needed, and rework any poor joints with minimal disturbance to nearby pads. Document recurring defects and adjust stencil openings, paste volume, or component placement to reduce future issues.
Handling, safety, and storage
Work in a well-ventilated area with PPE including eye protection and gloves. Store solder paste in the refrigerating range specified by the manufacturer and keep it sealed to prevent drying. Dispose of expired or contaminated paste and cleaning solvents according to local regulations. Label boards and keep a tidy workspace to minimize cross-contamination of paste.
Troubleshooting and best practices
If your joints show unexpected issues, revert to a test coupon board to isolate variables: paste quality, stencil alignment, deposition consistency, or reflow parameters. Start with clean pads and new paste, verify alignment, and avoid reusing old prints. Maintaining a consistent workflow and documenting settings helps you reproduce reliable results over time.
Tools & Materials
- Solder paste (lead-free or leaded as required)(Choose alloy and flux per project; check expiry date.)
- Stencil and stencil printer or scraper(Ensure stencil matches PCB pad pattern; clean between uses.)
- PCB boards with cleaned pads(Desmeared pads or oxidation reduces wetting.)
- Reflow oven or hot air rework station(Use for controlled heating; avoid open flames.)
- Isopropyl alcohol (IPA) and lint-free wipes(For cleaning pads and stencil surfaces.)
- Tweezers and magnification(Precise component placement; helps detect bridging.)
- Personal protective equipment(Gloves, safety glasses; ensure good ventilation.)
- Tape or adhesive for stencil/fixture(Optional to secure stencil during deposition.)

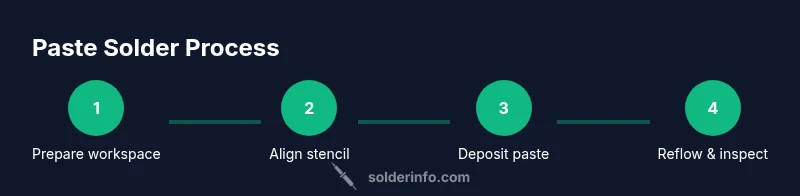

Steps
Estimated time: Total time: 60-90 minutes
- 1
Prepare workspace and materials
Set up a clean, static-free workspace. Gather all paste, stencil, PCB, and tools. Verify expiry dates and inspect components for damage before starting.
Tip: Lay out items in a logical sequence to reduce handling time. - 2
Mount stencil and align PCB
Place the stencil over the PCB and align fiducials with the board marks. Clamp the board and stencil to prevent movement during deposition.
Tip: Double-check alignment under a magnifier before depositing paste. - 3
Deposit solder paste onto the stencil
Use a printer or scraper to spread solder paste across the stencil in a single, controlled pass. Avoid multiple passes that can smear paste.
Tip: Aim for a single consistent deposit per pad. - 4
Check paste deposition
Inspect printed pads for complete coverage and absence of bridging. Reprint or adjust if necessary before placing components.
Tip: Use a bright light and magnification to detect gaps or bridges. - 5
Place components onto the paste
Carefully position components with tweezers, ensuring correct orientation and alignment with pads. Do not touch paste with bare fingers.
Tip: Place larger components before small ones to avoid displacement. - 6
Execute reflow and stabilize
Place the board in a controlled reflow environment and follow the recommended profile. Allow the board to cool undisturbed after reflow.
Tip: Do not remove the board from the oven during the ramp or peak phase. - 7
Inspect and post-process
Examine joints for wetting and fillet shape. Clean flux residue if needed and perform rework on any poor joints with care.
Tip: Document any defects for future process improvements.
Quick Answers
What is solder paste for?
Solder paste combines metal solder particles with flux to form transparent, well-wetted joints on PCB pads during reflow. It enables precise deposition for surface-mount components.
Solder paste is a mix of solder and flux that helps form joints on PCB pads during heating.
Can I use paste without a stencil?
While possible with manual deposition, a stencil greatly improves alignment and reduces defects. For dense boards, a stencil is strongly recommended to maintain consistency.
A stencil is highly recommended for consistent deposition and fewer defects.
How long does reflow take?
Reflow time depends on the paste and profile, but you generally allow a ramp-up, peak, and cool-down sequence within a controlled oven or hot air station. Follow the paste datasheet and your board’s requirements.
Reflow timing follows the paste’s profile and your oven’s program.
Why do bridges occur and how to prevent them?
Bridges happen when excess solder connects adjacent pads. Prevent by correct stencil alignment, appropriate paste volume, proper deposition, and careful component placement.
Bridges are caused by too much paste or misalignment; fix by proper deposition and placement.
How should solder paste be stored?
Store per the manufacturer’s instructions, typically refrigerated and sealed. Avoid exposing paste to air and moisture, which can reduce performance.
Store paste as the manufacturer recommends, usually refrigerated and sealed.
Watch Video
Top Takeaways
- Plan stencil alignment before deposition.
- Match paste type to your alloy and flux needs.
- Even deposition is key to reliable joints.
- Follow safety and disposal guidelines for paste and cleaners.
