By the end of this guide you will learn how to apply solder paste with precision for PCB assemblies, using either stencil printing or manual methods. You’ll learn how to prepare pads, select the right paste type (lead-free for safety), set up your stencil, deposit paste consistently, then inspect and reflow. This process reduces cold joints and ensures reliable connections.
What is solder paste and its role in electronics assembly
According to SolderInfo, solder paste is a malleable mixture consisting of fine solder alloy powder suspended in a flux carrier. When deposited on PCB pads, the flux removes oxides and improves wetting, allowing the molten solder to form reliable joints during reflow. The choice between lead-free and leaded pastes has performance, environmental, and safety implications; the modern standard for most electronics is lead-free alloys, typically tin-based with small amounts of silver or copper. Solder paste is designed for surface-mount technology (SMT) work, where tiny components require precise deposits. In practice, you apply a small amount of paste to each pad via stencil prints or controlled dispensing, then reflow to form solid joints. Lead-free pastes generally reflow at slightly higher temperatures than traditional leaded formulations, so the reflow profile must be adjusted accordingly. Solder paste is an essential enabler of reliable SMT assemblies and is chosen based on pad geometry, component density, and the required reflow temperature. Solder paste is an essential enabler of reliable SMT assemblies and is chosen based on pad geometry, component density, and the required reflow temperature.
noteText":null
descriptionNote":null
Tools & Materials
- Solder paste (lead-free preferred)(Choose a paste compatible with your reflow temperature and no-clean requirement.)
- PCB with clean, prepared pads(Pads should be free of oil, fingerprint residues, and oxidization.)
- Stencil and alignment tooling(Ensure stencil matches PCB footprint for accurate deposits.)
- Squeegee or stencil printer(Used to transfer an even layer of paste through the stencil.)
- Dispensing syringe (optional for drag method)(Useful for non-stencil, fine-pitch deposits.)
- Magnification aid (loupe or microscope)(Critical for alignment checks and paste inspection.)
- Isopropyl alcohol (IPA) and lint-free wipes(For cleaning pads, stencil edges, and tools.)
- ESD protection(Protect sensitive electronics from static discharge.)
- Fume extractor or ventilation(Keep fumes away from the operator.)
- Reflow oven or hot air station(Achieve proper reflow profile for reliable joints.)
- Safety gear (glasses, gloves)(Personal protection during heating and handling chemicals.)

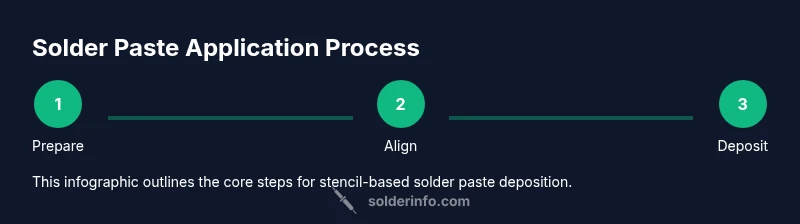

Steps
Estimated time: 45-60 minutes
- 1
Prepare workspace and safety gear
Set up a clean, dry workspace with good ventilation. Put on safety glasses and ensure ESD protection is active. A clutter-free area reduces the risk of contamination and accidental misfeeds.
Tip: Verify the stencil is clean and the environment is dust-free before starting. - 2
Inspect pads and footprint alignment
Check pads for oxidation or contamination. Align the stencil to PCB using marks or pins to prevent misalignment and potential bridging.
Tip: Use bright light and a magnifier to spot minute misalignments. - 3
Secure stencil and board
Position the stencil on the board and secure it with tape or mounting hardware to prevent shifting during deposition.
Tip: Avoid bending the stencil; a warped stencil causes uneven paste transfer. - 4
Deposit solder paste through stencil
Use a controlled stroke with the squeegee to spread a uniform layer of paste across the stencil opening. Maintain steady pressure and speed for consistent transfer.
Tip: Keep the squeegee at a slight angle and maintain a steady pace. - 5
Inspect paste coverage
Carefully remove the stencil and inspect each pad for proper localized deposits. Ensure full coverage without bridging between adjacent pads.
Tip: If gaps appear, rework before reflow or re-stencil if necessary. - 6
Re-check deposition quality
Re-scan affected pads and, if needed, re-deposit paste only where coverage is insufficient, avoiding excess paste.
Tip: Contain movement to prevent smearing onto non-target pads. - 7
Pre-reflow readiness
Double-check alignment, paste volume, and absence of bridges. Preheat the board if your paste requires prebake conditions to minimize thermal shock.
Tip: Document the reflow profile used for future boards. - 8
Proceed to reflow and post-process
Reflow according to the paste datasheet and board material. After cooling, inspect joints with a loupe and clean residues if required.
Tip: Avoid rapid cooling to prevent thermal stress.
Quick Answers
What is solder paste used for in electronics?
Solder paste provides a tiny, precise amount of solder and flux to SMT pads, enabling components to be held in place and forming reliable joints during reflow. It is essential for surface-mount assembly.
Solder paste helps hold parts in place and forms reliable joints during heating.
Lead-free vs leaded solder paste, what should I know?
Lead-free pastes are common for modern electronics and require higher reflow temperatures. Leaded pastes are easier to process but are restricted in many regions due to safety regulations.
Lead-free pastes are standard now, needing higher temperatures; leaded pastes are restricted in many places.
Do I need to clean post-reflow?
No-clean fluxes typically leave residues that are non-corrosive, so cleaning is often unnecessary. If using water-soluble flux, cleaning after reflow is recommended to prevent residue issues.
Most no-clean pastes don’t require cleaning after reflow; water-soluble ones do.
Can I reuse solder paste?
Solder paste has a limited shelf life and should be stored properly; reuse is generally not recommended after paste has been opened or exposed to heat cycles.
Paste should be used within its shelf life and stored correctly; reuse is not advised.
What tools are essential for applying solder paste?
Essential tools include a stencil or dispenser, a reliable reflow setup, a magnifier, IPA for cleaning, and PPE to protect against fumes and heat.
You’ll need a stencil or dispenser, a good reflow setup, magnification, cleaner, and safety gear.
What is a good reflow profile for solder paste?
A good reflow profile gradually heats the board to the solder’s melting temperature, holds briefly, then cools. Exact ramp rates vary by paste and board, so follow the manufacturer’s guidance.
Rise gradually to the paste’s melting point, hold, then cool; follow the paste’s datasheet.
Watch Video
Top Takeaways
- Prepare a clean, protected workspace
- Choose the correct paste and align the stencil precisely
- Deposit paste evenly and inspect before reflow
- Use proper reflow profiles for reliable joints
- Inspect and verify joints after cooling
