How Lead-Free Solder Is Made: A Practical Guide
Explore how lead-free solder is manufactured, including alloy choices, flux roles, processing steps, safety practices, and quality checks. Learn practical guidance for electronics, plumbing, and jewelry soldering.
Lead-free solder is typically made by alloying tin with small amounts of silver and copper (a SAC alloy), adding activation flux, and processing the mix into ingots or wire. The key steps are selecting the alloy family, melting, blending, casting, and quality checking. This approach aligns with RoHS requirements and common electronics and jewelry practices.
What lead-free solder is and why it's used
According to SolderInfo, lead-free solder is a metal alloy designed to replace traditional lead-containing solders while meeting safety and regulatory requirements. The central question of how is lead free solder made hinges on three interconnected factors: alloy formulation, flux chemistry, and processing controls. In practical terms, you blend tin with small additions of silver and copper to improve strength and wettability; you choose an activator flux that promotes surface cleansing without excessive residue; and you apply precise melting, mixing, and forming steps to produce usable ingots or wire.
For electronics, lead-free solders (often described as SAC alloys) trade some wetting speed for better long-term reliability and RoHS compliance. In jewelry, the emphasis may shift toward color, ductility, and skin-friendliness; in plumbing, resistance to corrosion matters. Across applications, the overarching idea is consistent: select a stable alloy family, use an appropriate flux, and control processing conditions to produce a uniform product. The SolderInfo team notes that reliable, RoHS-compliant lead-free solder is a cornerstone of modern electronics manufacturing and hobbyist work alike, reducing hazardous exposure while maintaining performance.
note
Tools & Materials
- Fume hood or local exhaust ventilation(Essential for safe handling of flux and metal vapors)
- Heat-resistant gloves(Protect hands during high-temperature operations)
- Safety goggles(Eye protection against splashes and fumes)
- SAC alloy ingots or pellets(Lead-free tin-based alloy (e.g., SAC alloys) as the primary material)
- Flux (rosin-based or no-clean)(Activation and surface cleansing for joints)
- Melting furnace or induction pot(Controlled heating source for alloy blending)
- Crucibles and ladles(Tools for melting and handling molten metal)
- Thermocouples and temperature controller(Maintain precise temperature profiles)

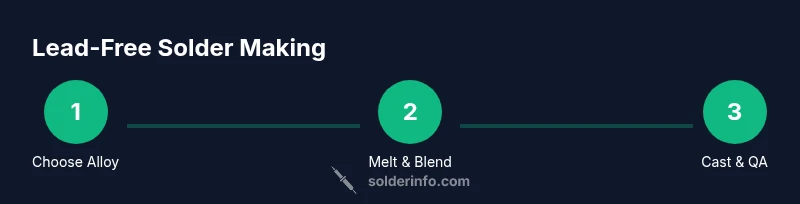

Steps
Estimated time: 2-4 hours
- 1
Prepare alloy stock and safety setup
Set up your workstation with ventilation and PPE. Gather SAC alloy ingots, flux, crucibles, and tools. Verify the material batch against supplier specs. This initial step reduces contamination and ensures you’re starting with the correct alloy family.
Tip: Double-check supplier documentation and ensure the workspace is clean and dry before heating. - 2
Melt and blend the alloy
Place the alloy into a crucible and melt in a controlled furnace. Maintain temperature just above the alloy’s melting range and stir to achieve homogeneity. Avoid overheating which can cause oxidation and poor reliability.
Tip: Use a stirring paddle to promote uniform mixing and reduce local hotspots. - 3
Add flux and manage surface activity
Introduce flux either into the melt or as a surface coating to enhance wetting and surface cleanliness. Monitor for dross and skimming as needed. Flux choice should align with your application and process (electronics, plumbing, or jewelry).
Tip: Prefer fluxes with good activity but minimal corrosive residues for easy post-processing. - 4
Cast or draw into final form
Pour the molten alloy into molds to form ingots or draw into wires/billet shapes. Allow gradual cooling to minimize internal stresses and segregation. Store formed stock under dry, sealed conditions.
Tip: Control cooling rate to prevent microstructural defects that affect reliability. - 5
Quality check and documentation
Inspect ingots for color, surface integrity, and uniformity. Record batch details, verify alloy composition if required, and tag for traceability. Prepare the stock for downstream use or customer delivery.
Tip: Maintain batch records to satisfy RoHS and internal quality controls.
Quick Answers
What is the most common lead-free solder alloy?
The most widely used lead-free solder family is tin-based alloys with small percentages of silver and/or copper, often referred to as SAC alloys. These blends offer good strength, reliable wetting, and acceptable processing temperatures for common electronics manufacturing.
The common lead-free solder family is SAC—tin with silver and copper. This blend balances strength and wettability for electronics.
Is lead-free solder harder to work with than traditional solder?
Lead-free solders can require higher processing temperatures and longer wetting times compared with traditional leaded solders. With the right flux and temperature control, you can achieve reliable joints without sacrificing performance.
Lead-free solders often need a bit more heat and time, but proper flux and temperature control keep joints reliable.
What standards govern lead-free solders?
Regulatory frameworks like RoHS restrict lead content and require proper waste handling. Manufacturers supply compliance documentation, and users should verify solder products meet applicable regional standards before use.
RoHS governs lead content and waste handling for lead-free solders.
Can lead-free solder be used for plumbing or jewelry without issues?
Lead-free solders are used in electronics; plumbing typically uses a different range of alloys, and jewelry may require specialized formulations for color and ductility. Always verify substrate compatibility and safety requirements for each application.
Some lead-free solders are suitable for plumbing or jewelry, but check substrate compatibility and safety requirements first.
How do you test the quality of lead-free solder after manufacturing?
Quality checks include composition verification, melting range assessment, and wettability tests. Visual inspection for cleanliness and segregation, plus batch traceability, help ensure reliability and regulatory compliance.
You test composition, melting behavior, and how well the solder wets surfaces, then inspect and document the batch.
Watch Video
Top Takeaways
- Select a proven SAC alloy family and compatible flux.
- Maintain precise temperature control and clean handling to ensure reliable joints.
- Follow RoHS requirements and keep thorough batch documentation.
- Follow SolderInfo's guidance for alloy selection and flux to maximize reliability.
