How to Solder Copper Pipe Upside Down
Learn how to solder copper pipe upside down with confidence. This step-by-step guide covers prep, heat control, fittings, safety, and tests to ensure leak-free joints in tight orientations.
This guide shows you how to solder copper pipe upside down by stabilizing your work, controlling heat, and using the right flux and solder. You’ll clamp the assembly, dry-fit beforehand, and apply heat evenly to prevent leaks. Gather a pipe cutter, vise, flux, lead-free solder, a propane/MAP torch, and safety gear. Follow the steps below for a reliable joint.
Understanding the Challenge of Upside-Down Soldering
Soldering copper pipe upside down introduces gravity as an additional factor in joint formation. Flux can drip away, solder can migrate away from the joint, and misalignment is more likely if the workpiece isn’t stabilized. When you search for guidance on how to solder copper pipe upside down, you’ll see that success hinges on preparation, a secure setup, and disciplined heat management. In practice, the technique requires a stable vise or pipe clamp, a supportive work surface, and deliberate, slow heating to keep the flux and solder in place. The goal is a clean wetting of the copper surfaces and proper joint collapse without overheating the fittings. The SolderInfo approach emphasizes planning and methodical execution to achieve leak-free results in tight orientations.
Why orientation matters for copper joints
Gravity affects how solder and flux behave during the bonding process. Upside-down work can cause flux to pool away from the joint, which reduces wetting and creates micro-voids. This is why you’ll often see plumbers using clamps, bench vises, or inverted rigs to hold the assembly in place before heating. A stable orientation also helps you apply solder gradually from the bottom, allowing capillary action to draw filler metal into the joint instead of letting it run off. Armed with this understanding, you’ll set up a controlled, repeatable workflow that minimizes surprises on the job.
Surface prep and cleanliness
Copper surfaces must be clean and bright for the solder to bond properly. Start by cutting straight, square ends and deburring the inside and outside edges. Wipe away any oils or oxidation with a clean cloth, then scuff the surface with a fiber pad to maximize the wetting area. Flux should be applied evenly to all mating surfaces, and you should dry-fit the joint before applying heat to confirm alignment. Cleanliness and alignment are twice as important when you’re soldering upside down because there’s less margin for error once heat is introduced.
Choosing the right flux and solder
Use a flux compatible with copper piping that’s designed for potable-water systems when applicable. Flux helps remove oxide layers and promotes wetting, which is critical in an inverted orientation. For solder, select a lead-free alloy that meets local code requirements and is appropriate for the pipe diameter. Rosin-core flux can be useful for some systems, but many plumbers prefer water-soluble flux for easier cleanup. Always verify code requirements in your jurisdiction before starting a project.
Stabilizing the work and controlling heat
With upside-down joints, stabilization is non-negotiable. Use a sturdy vise or a dedicated pipe stand to cradle the pipe while you position fittings. When heating, start from the outer edges of the joint and move inward with a steady, even motion. Avoid concentrating heat in one spot or using a flame that is too large, as this can burn flux and oxidize copper. A gentle, consistent heat helps ensure a proper capillary pull of the solder and reduces the risk of a cold joint.
Solder application and capillary action
Begin applying solder at the point nearest the vertical bottom edge of the joint. Feed the filler metal slowly, allowing capillary action to draw it into the gap. Clip away excess solder quickly to prevent blobs that could block the pipe or restrict joint movement. If you sense flux runoff or copper discoloration, pause and re-clean before continuing. The goal is a smooth, continuous fillet that fully wets the cross-section without creating voids.
Cooling, inspection, and leak testing
Allow the joint to cool naturally while still supported in its inverted position. Quick cooling can lead to micro-cracking or incomplete bonding, so avoid quenching with water. Inspect for uniform wetting and a smooth finish around the joint. After it cools, perform a leak test—either a pressure test per code or a soapy-water bubble test—to ensure reliability. Any signs of leakage mean disassembly and rework, not cosmetic fixes.
Common mistakes and how to avoid them
Mistakes to avoid include overheating the joint, using too much flux, and failing to dry-fit before heating. Also, avoid twisting or bending the pipe while hot, as this can deform joints and compromise alignment. Remember that upside-down soldering increases the risk of flux runoff and gravitational pooling of filler metal. A methodical approach—stable support, clean surfaces, proper flux, and controlled heat—drastically reduces these risks.
Code compliance and quality control
Always check local codes for requirements on pipe material, solder composition, and pressure testing protocols. Document the process and keep a record of materials used in the event of future repairs. Quality control includes cleaning, dry-fit verification, proper allotted cooling time, and an adequate leak-test duration. Following these practices helps ensure your inverted solder joints are durable and compliant with plumbing standards.
Tools & Materials
- Copper pipe (type L or K)(Ensure correct diameter for joint)
- Copper fittings (elbows, couplings)(Use lead-free compliant fittings)
- Pipe cutter(Cut square, deburr edges)
- Deburring tool(Chamfer inside and outside edges)
- Flux (rosin or water-soluble)(Choose flux appropriate for copper and joint type)
- Lead-free solder for plumbing(Select alloy per code (e.g., 95/5 or 60/40) and avoid lead-containing solders)
- Propane or MAP-Pro torch with adjustable flame(Small to mid-sized flame; hand-safe for joints)
- Vise or pipe stand(Stabilize inverted assembly)
- Heat-resistant gloves(Protect hands from radiant heat)
- Safety goggles(Eye protection against splatter)
- Soapy water or pressure tester(Leak testing method)
- Lint-free cloths(Clean flux and copper surfaces)

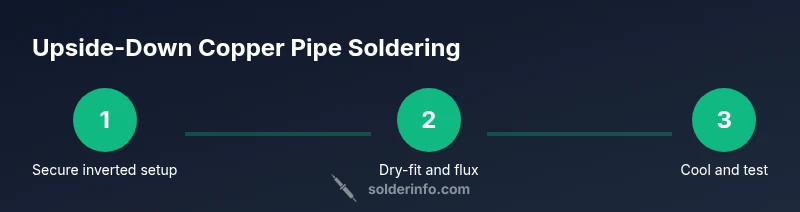

Steps
Estimated time: 60-90 minutes
- 1
Secure the assembly inverted
Place the pipe and fittings in a sturdy vise or dedicated inverted jig. Ensure alignment and prevent movement during heating. This reduces gravity-driven misalignment and makes heat application more predictable.
Tip: Double-check that fittings are fully seated before clamp is tightened. - 2
Cut, deburr, and dry-fit
Cut the pipe squarely and deburr both ends. Dry-fit the components to confirm alignment and spacing. Any snug fit gaps signal the need for minor trimming before soldering.
Tip: Test-fit without flux first to avoid contaminating surfaces. - 3
Clean and apply flux
Wipe surfaces clean, then apply an even coat of flux to all mating surfaces. Ensure flux coverage at the bottom edge of the joint where gravity may pull it away.
Tip: Use a fresh brush to avoid cross-contamination with paste flux. - 4
Preheat outer joint area
With the assembly still steady, preheat the joint area from the outside, keeping the flame moving. Avoid localized overheating that can burn flux or char copper.
Tip: Maintain a consistent distance to prevent scorching. - 5
Apply solder gradually
Beginning at the bottom edge of the joint, feed solder into the joint slowly as heat continues. Let capillary action pull the filler metal into the gap; avoid blobs that travel away from the joint.
Tip: Do not rush—steady application yields better wetting. - 6
Inspect wetting and cool
Watch the solder flow to produce a smooth fillet. Remove heat once full wetting is achieved and allow the joint to cool in place.
Tip: Do not pry the joint apart while still hot. - 7
Leak test and finalize
After cooling, perform a leak test with soapy water or a pressure test per code. If bubbles appear or pressure drops, rework the joint with proper cleaning and another solder run.
Tip: Document the test result for future maintenance.
Quick Answers
Is upside-down soldering possible in tight spaces?
Yes, with a stable inverted setup and appropriate clamps or a jig. Tight spaces require careful heat control and occasionally longer dwell times on the joint to ensure proper wetting.
Yes, you can do it in tight spaces as long as you stabilize the work and control heat.
What type of solder should I use for copper piping?
Use lead-free solder that meets local code requirements and flux suitable for copper plumbing. Follow the manufacturer’s instructions for application and cleaning.
Use lead-free solder that matches your local code and the flux recommended by the manufacturer.
Why does flux runoff happen when inverted?
Flux can pool away from the joint due to gravity, reducing wetting. Clean, reapply flux if needed, and maintain stable support during heating.
Flux can run away; keep the joint stable and reapply if needed.
Can I test leaks without water pressure?
Yes. Use soapy water to look for bubbles or a dedicated air or water pressure test as allowed by code. Rework any leaking joints.
Yes. Use soap bubbles or an approved test method to check leaks.
What safety gear is essential?
Wear eye protection and heat-resistant gloves, ensure ventilation, and keep flammable materials away from the workspace.
Eye protection and gloves are a must, plus good ventilation.
Can I reuse a joint that’s overheated?
Overheating damages copper and reduces joint strength. It’s safer to recut, resurface, and re-solder rather than reusing damaged parts.
If overheated, don’t reuse—re-cut and re-solder.
Watch Video
Top Takeaways
- Stabilize the inverted joint before heating.
- Cleanliness and dry-fit predict success.
- Controlled heat ensures reliable wetting.
- Lead-free solder and appropriate flux are essential.
- Leak testing confirms joint integrity.
