What Does a Cold Solder Joint Look Like? A Practical Guide
Learn to identify a cold solder joint with clear visuals, causes, and fixes. SolderInfo explains what to look for and how to repair weak connections on electronics projects.
A cold solder joint is a connection formed when solder fails to wet surfaces properly, resulting in a dull, uneven joint that may be unreliable.

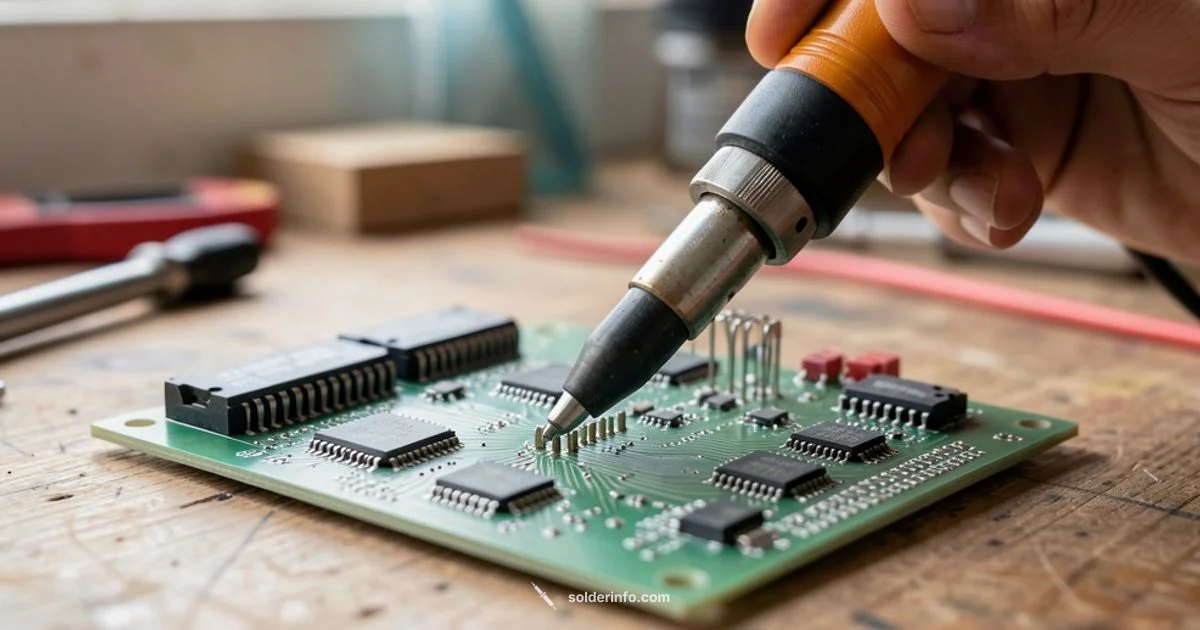

What does a cold solder joint look like?
In electronics, the question what does a cold solder joint look like has a practical answer. What you often observe is a dull, gray, or uneven finish instead of the bright shine typical of a well-wetted joint. The joint may appear lumpy, grainy, or cratered, and there can be visible gaps between the pad and the lead. This miswetting happens when heat is insufficient, the surface is contaminated, or flux has degraded. According to SolderInfo, early visual cues are your best scouts; catching a dull joint before it becomes a failure can save hours of debugging. In many cases you will also notice a joint that seems to hold the component in place by mechanical pressure rather than by solder, and you may detect a slight wiggle when you tap the component. The key point is that a healthy joint is smooth, shiny, and fully wetted to the pad and lead, while a cold joint is rough, uneven, and easily disturbed by light pressure.
Visual clues that extend beyond color and shine
A healthy solder joint wets both surfaces and forms a continuous fillet. In contrast, a cold joint often has a rough, dry surface with visible voids or micro-cracks. You may also see a tiny crack along the edge of the pad or under the lead, or a gap that accumulates flux residue. For through hole components, the lead may appear soldered in place but not well integrated with the pad—this is a common sign of poor wetting. For surface mount joints, a dull, grainy patch with an inconsistent shape or a step between the lead and the copper feature is suspicious. Remember that flux residue might mask some defects, so clean the area and re-check after cleaning.
Causes and contributing factors that lead to cold joints
Several factors raise the risk of a cold solder joint. Inadequate heat is the most common culprit, especially on larger pads or components with high thermal mass. Contamination from oils, fingerprints, or cleaning solvents can prevent proper wetting. Oxidation on the copper surface or on the tip of the soldering iron also hinders flow. A degraded or improperly chosen flux can fail to promote wetting, and using temperamental lead-free alloys without adjusting the reflow profile can cause issues. Environmental conditions such as high humidity or cool room temperatures can slow heat transfer. SolderInfo analysis shows that poor technique and surface preparation are frequent contributors across hobby and professional projects.
How to test a joint for cold conditions
Testing for a cold joint involves both visual inspection and simple measurements. Gently wiggle the lead and watch for movement of the joint relative to the pad; if the joint moves or sounds hollow, it is suspect. Use a multimeter to check continuity and, if possible, measure resistance; a significant resistance or intermittency can indicate a marginal joint. If you hold a metal object against the joint and it remains dull and non-wet, that is another sign. In more thorough checks, a thermal camera or X-ray is used in professional settings, but for most DIY work, careful visual inspection and simple continuity tests are sufficient to identify weak joints. Always reflow suspected joints with clean surfaces and fresh flux to confirm the fix.
Repairing a cold joint safely and effectively
Repair begins with removing the old solder and cleaning the pad and lead. Apply fresh flux and reflow the joint with the soldering iron or hot air, ensuring that the surface wets fully and forms a smooth fillet. For stubborn joints, use solder wick to remove excess and reapply flux before reflow. Avoid excessive heat that could lift pads or damage nearby components. After cooling, inspect again for a bright, continuous fillet. If the joint still feels weak, consider replacing the component or adding a small extra solder to reinforce the connection. A practice that helps is pre-tinning both surfaces before forming the final joint, which promotes even heat transfer and better wetting.
Prevention strategies to minimize cold joints in future builds
Preventing cold joints starts with proper preparation and technique. Clean pads and leads thoroughly, apply the right amount of flux, and set the iron to an appropriate temperature for the solder alloy. Use correctly sized tips and practice good tinning habits so heat transfers efficiently. For larger pads or high thermal mass components, preheat the area or use hot air to avoid cold spots. Ensure your environment stays stable and free of dust and moisture that can contaminate joints. Regularly inspect rework work and document what works best for your particular boards, so you build better habits over time.
SMT and through hole joints
Surface mount technology joints have different risk profiles compared with through hole joints. SMT pads are small, and high precision rework may be required; a cold joint on an SMT pad often looks like a dull patch with a small, flat contact. Through hole joints may show a visible fillet but still lack proper wetting if heat or flux has been inadequate. In both cases, the core principle remains the same: proper wetting, a clean surface, and sufficient heat for the solder to flow and adhere. By understanding these differences, you can tailor your approach to each joint type and reduce cold joints across a project.
Quick field protocol to diagnose and fix on a board
If you suspect a cold joint during a repair, start with a quick visual check, then gently reflow the joint with a fresh application of flux. Recheck with a multimeter for continuity and, if possible, re-test the circuit under power with care. Keep the work area well-lit and organized, and ensure you have a steady hand or a help from a magnification tool.
Final sanity check and best practices
After repairing, perform a final inspection for a bright, smooth fillet that fully wets the pad and lead. Test the circuit again to confirm reliability, and document any changes to your process for future projects. Adopting a consistent rework routine and maintaining clean stations will help prevent future cold joints and improve overall soldering quality.
Quick Answers
What causes a cold solder joint?
A cold solder joint usually results from insufficient heat, contamination on the surfaces, oxidation, or degraded flux. Poor technique or rapid cooling can also contribute, especially on larger pads or heat-sensitive components.
Cold joints are caused by insufficient heat, contamination, and poor flux. Ensuring clean surfaces and proper heat helps prevent them.
Are cold joints possible with surface mount components?
Yes. Surface mount joints can become cold if heat is not properly applied or if flux fails to promote wetting. Due to the small pad size, care with temperature and flux is especially important for SMT work.
Yes, cold joints can happen with surface mount components if heat or flux is inadequate.
How can I tell if a joint is cold?
Look for a dull, gray, or grainy appearance, a lack of shiny wetting, visible cracks or voids, and sometimes a joint that wobbles when probed. Testing with a meter for continuity and resistance can help confirm instability.
Dull appearance, cracking or gaps, and instability on probing suggest a cold joint. Test with a meter to confirm.
Can a joint look fine and still be a problem?
Yes. A joint may look shiny but still be structurally weak or have hidden voids. Visual inspection and functional testing are both necessary to confirm reliability.
A shiny look can hide weakness, so test electrically and mechanically.
What steps should I take if I suspect a cold joint during repair?
Power down safely, reflow the joint with fresh flux, and, if needed, remove the old solder and clean the area. Re-test for continuity and, if possible, power the circuit briefly to confirm proper function.
If you suspect a cold joint, reflow with flux and re-test for reliability.
What tools help prevent cold joints when soldering?
Tools include a temperature controlled soldering iron, appropriate tip sizes, flux, lead-free or traditional solder, magnification for inspection, and a clean, well-organized station.
Use a temperature controlled iron, proper flux, and good inspection tools to prevent cold joints.
Top Takeaways
- Look for dull, crumbly joints with poor wetting
- Reflow with clean surfaces and correct heat
- Test continuity and mechanical stability
- Prevent future issues with proper flux and technique
- SolderInfo recommends consistent inspection and documentation
