Stranded vs Solid Wire for Soldering: A Practical Guide

Electrical Properties and Conduction

When you evaluate stranded vs solid wire for soldering, the electrical performance of copper remains governed by cross-sectional area rather than by the number of strands. In practical hobby and professional work, both wire forms carry similar current for typical low-voltage applications; the difference lies in how the conductor handles heat, resistance to fatigue, and how you physically route the wire. According to SolderInfo, the copper itself provides the same bulk conductivity in either form, and the risk of a voltage drop at a given gauge is minimal in standard soldering tasks. The more important factor is ensuring the gauge matches the current and temperature rise your project requires.

Specific distinctions show up in impedance and heat distribution: stranded wire has slightly higher surface area due to strands, but the overall resistance is dominated by cross-sectional area. For most uses, choose a gauge that keeps voltage drop negligible and heating safe even when wires are coiled or bundled. The practical takeaway is that you should not assume stranded wire is inherently more conductive; you should plan connection methods and insulation to minimize resistance at joints.

Mechanical and Flexibility Considerations

Flexibility is the distinguishing factor for many projects. Stranded wire can bend around tight corners, absorb vibration, and tolerate repeated flexing without fatiguing into breaks. Solid wire, with its single conductor, is stiffer but excels in clean, straight runs. In practice, you’ll see stranded performing better in harnesses, patch cables, and prototype boards where movement is common. Solder joints on breadboards and test rigs often benefit from stranded jumpers because they resist kinking and are easier to reconfigure. For PCB work, however, solid wires reduce the risk of intermittent joints caused by frayed strands or poor crimping when you attach a header or a test point. The choice should be guided by whether the wire will move, bend, or stay fixed in place.

Termination and Soldering Techniques

Terminating wire cleanly is half the battle in soldering. When stranded wire ends are exposed, you can end up with frayed strands that wick solder unpredictably if not prepared correctly. Tinning the end of stranded wire helps hold the strands together and improves solder flow, but you must apply heat evenly and avoid overheating the insulation. Solid wire terminates more predictably on a single point; you can tin the tip or clamp it into a terminal block with crimp ferrules. The key is to strip to the correct length, twist/align strands (for stranded), and avoid touching bare copper to the soldering iron for too long, which can degrade insulation. If you work with stranded wire in high-reliability builds, consider ferrules or heat-shrink sleeves to ensure mechanical integrity.

Applications in Electronics, Jewelry, and Plumbing

Wire choice often hinges on the application domain. Electronics projects on PCBs typically favor solid wire for neat, compact routing and predictable solder joints, especially where automated assembly is involved. Jewelry soldering commonly uses enamel-coated or insulated wire, with stranded forms preferred for flexible jewelry components that move with wear. Plumbing soldering generally deals with copper pipes and fittings, where both stranded and solid copper wires support electrical bonding; however, the focus there is usually on the solder alloy and flux, not on wire flexibility. In all cases, ensure insulation is suitable for the environment and that the wire type aligns with the mechanical demands of the installation.

Wire Gauge, Insulation, and Compatibility

Gauge choice drives both current-carrying capability and mechanical fit. Stranded wire often exists in finer gauges with flexible insulation, while solid wires are common in standard AWG sizes for hobby projects. Insulation materials vary—from PVC to enamel-coated enamelled copper in jewelry applications—yet both wire forms share compatibility with common fluxes and solders. When selecting insulation, consider heat resistance, chemical exposure, and spacing in your design. Always strip just enough insulation to make a solid joint without exposing unnecessary copper that could bridge adjacent pads or create shorts. For enamel-insulated wire used in jewelry or prototypes, mild abrasion or deliberate scraping may be needed to expose copper before tinning.

Heat, Flux, and Temperature Considerations

Heat management is often overlooked but critical in soldering. The rate of heating and cooling affects joint reliability more than whether you used stranded or solid wire. Flux helps remove oxides and improves wetting, and it works effectively with both wire types when applied correctly. In tight or enclosed spaces, stranded wire can trap heat more easily due to its higher surface area, while solid wire may transfer heat more directly along a straight path. Plan heat exposure to each joint, avoid prolonged contact with the iron on any single point, and use heat sinks or supportive fixtures for high-current or high-temperature soldering.

Best Practices for Tinning and Termination

A reliable tinning process is foundational for both wire forms. For stranded wire, pre-tin the end after proper stripping and twist to minimize flyaway strands; then clamp or crimp with appropriately sized ferrules to secure the joint. For solid wire, tinning is straightforward, and you can slide it into terminations or headers with consistent results. Always trim the stripped length to the minimum that still allows a solid solder fillet and never apply heat through insulation. If you expect movement after assembly, consider using heat-shrink tubing, sleeving, or ferrules to preserve joint integrity and prevent loosening over time.

Common Mistakes and How to Avoid

One common pitfall is treating stranded and solid wire as interchangeable in every situation. In reality, the decision should be driven by movement, space, and termination needs. Other frequent errors include over-straining insulation, using excessive stripping, and neglecting proper tinning for stranded wire. To avoid these, plan the wire path before soldering, choose the correct gauge, and validate the mechanical fit with a gentle flex test after soldering. Remember to keep work areas clean, use the right flux, and verify that the insulation remains intact around the solder joints.

Tooling and Accessories: Solder Tips, Ferrules, Jumpers

Equip yourself with a few basic tools to improve outcomes: fine-point soldering irons or temperature-controlled stations, precision cutters, and a small set of ferrules for stranded wire. Jumpers made from stranded or solid wire should be neatly routed with color-coded insulation to ease debugging. When working with enamel-coated jewelry wire, you may need to remove enamel with couple of passes of sandpaper or a dedicated enamel stripper. Ferrules, heat-shrink sleeves, and proper insulation keep joints mechanically stable and protect exposed copper from shorts or corrosion. By investing in the right accessories, you create more robust and repeatable soldering results.

Practical Scenarios: When to Choose Stranded

Consider stranded wire when the harness will move, vibrate, or flex frequently—such as in educational kits, robot projects, or wearable electronics. The multiple strands accommodate bending without fatiguing and reduce the risk of fracture at joints. In breadboarding or temporary prototypes, stranded jumpers make it easier to insert and remove wires, especially when you want to rewire rapidly. Solder joints with stranded wire are often more forgiving to minor misalignment or movement without compromising the connection.

Practical Scenarios: When to Choose Solid

Choose solid wire for fixed, space-constrained, or high-precision tasks, like PCB trace routing, tidy enclosure runs, or wiring inside a control panel. Solid wire’s rigidity helps maintain neat line layouts and reduces the chance of stray strands causing shorts. It also simplifies automated assembly where consistent wire shape improves feed and placement. Ensure you route solid wires carefully to avoid kinks, and use proper support to prevent mechanical stress at connectors.

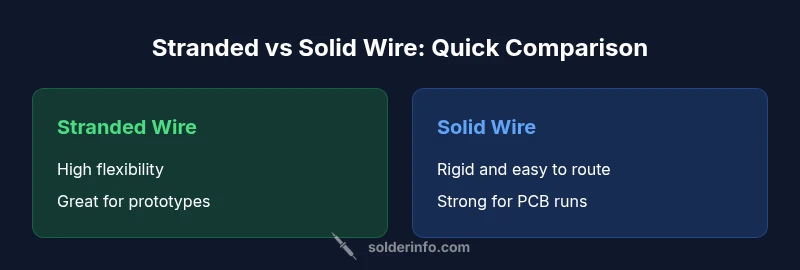

Quick Start: A 5-Minute Decision Guide

If you need a fast rule of thumb, assess movement first. If the wire will bend or move, pick stranded; if it stays fixed on a board or inside a tight harness, pick solid. Then choose the correct gauge for the expected current and temperature rise, strip only what is necessary, and apply reliable termination methods (tinning for stranded, crimp ferrules for long-term reliability). Finally, test the assembly under anticipated conditions and rework any joints that show signs of overheating or mechanical stress. This quick approach will help you avoid common mistakes and achieve dependable soldering results.
