Solder to Battery: Safe Step-by-Step Guide
Learn safe, practical methods for soldering to a battery, including precautions, materials, and a detailed step-by-step workflow from SolderInfo. This guide emphasizes safety, reliability, and best practices for electronics hobbyists and professionals.
With proper precautions, you can solder to a battery to establish a temporary or permanent electrical connection. This task demands high caution due to heat, chemical hazards, and potential short circuits. In this guide, you’ll learn safe methods, suitable materials, and step-by-step actions to minimize risks when soldering to battery terminals or tabs.
Why solder to battery matters
Soldering to a battery can provide a reliable, low-resistance connection when a factory lead or connector isn’t available. For electronics hobbyists and professionals, a properly executed solder to battery joint can eliminate loose wires and ensure a stable power path. According to SolderInfo, the decision to solder contacts should balance practicality with safety, because heat, flux residues, and poor technique can damage cells, degrade insulation, or create a hazardous short. When done correctly, solder to battery connections can extend the life of a project by enabling clean, modular wiring to battery tabs or terminals. This article explains how to approach this task with caution, using appropriate materials and validated methods to minimize risk to the cell and surrounding electronics. The aim is a solid, durable joint without compromising the battery’s protective layers or venting mechanisms.
Battery types and heat sensitivity
Not all batteries respond the same to heat. Lithium-ion and lithium-polymer cells, common in DIY electronics, are particularly sensitive to elevated temperatures and can suffer performance loss or safety risks if heated excessively. Nickel-based chemistries may tolerate brief heating better, but still require careful handling. Each battery type has a different tolerance for soldering temperatures and contact preparation, so you should tailor your approach to the specific cell you are working with. In practice, the safest path is to minimize heat input, avoid direct heat on the cell can, and use the lowest temperature feasible for a clean joint. SolderInfo analysis shows that planning around battery chemistry and connector geometry reduces the likelihood of damage, swelling, or leakage. When in doubt, consider non-heat joining options like pre-tabbed cells or spring contacts, especially for Li-ion packs.
Safety guidelines and PPE
Always treat every battery as a potential hazard. Work in a well-ventilated area away from flammable materials, wear safety glasses, and keep a fire extinguisher nearby. Disconnect the device and remove batteries from any enclosure before attempting soldering. Do not solder damaged or swollen cells, and never attempt to work on a battery that shows any signs of venting or leakage. A clean, organized workspace reduces the risk of accidental shorts; use insulating mats and heat-resistant surfaces. Ventilation helps clear fumes from flux, and gloves can prevent oils from your hands from contaminating joints. The SolderInfo team emphasizes meticulous preparation and safety-first planning to protect yourself and the battery while performing any soldering-to-battery task.
Materials and flux choices
Choosing the right materials is as important as the technique. Use lead-free rosin-core solder to reduce toxic exposure and environmental impact, and select a resin-based flux appropriate for electronics. Flux lowers surface tension and improves wetting, which helps create a reliable joint without excessive heat. Solder wick (braid) is a helpful accessory for removing excess solder and correcting mistakes. Keep isopropyl alcohol and lint-free wipes handy for cleaning the contact surfaces before tinning. Avoid using corrosive flux on battery surfaces, which can damage protective coatings or cause long-term corrosion. For most hobby projects, a clean flux and properly cleaned contacts yield a strong, durable joint when combined with careful heat control.
Preparation and workspace setup
Begin by organizing your components and ensuring you have a stable setup. Mount the battery securely using a clamp or jig, and position the wires or tab so that the joint location is easily accessible without stressing leads. Clean the contact surfaces with isopropyl alcohol to remove oils and residues, then lightly abrade if the surface is glossy. Pre-fit the connector or tab so you know exactly where the heat will be applied. This reduces the risk of drifting the heat to unintended areas, which could damage the battery or surrounding circuitry. Always use a heat sink or a suitable metal clip to draw heat away from the battery during soldering. A tidy workspace reduces risk and improves the likelihood of a successful joint on the first attempt.
Troubleshooting common issues
Poor joints, cold joints, or bridged connections are the most common problems when soldering to a battery. If a joint looks dull or flaky, rework it with fresh flux and a brief touch of solder, ensuring you don’t overheat the cell. Short circuits can occur if the tip touches other conductors, so maintain spacing and insulation around the joint. If the battery becomes warm quickly during soldering, stop and reassess your heat input; excessive heat can degrade the internal structure. If you notice swelling, cracking, or leakage afterwards, discontinue use immediately and isolate the cell. These issues remind us why a careful, well-planned approach matters, especially when working with energy storage devices, so you preserve both safety and performance.
Alternatives and safer options
For many battery applications, soldering may be avoided in favor of safer methods. Pre-tabbed cells, connector pigtails, or spring-loaded contacts can provide robust connections without subjecting the cell to heat. Spot welding is often recommended for Li-ion and Li-polymer packs because it minimizes heat transfer to the cell. If you must solder, use the lowest possible heat and the shortest connection time, and always work with a protected, insulated environment. In some cases, using a battery holder or clip with screw terminals can provide a reliable, serviceable solution without direct heat on the cell. By considering these safer alternatives, you can improve reliability while reducing the risk of damage or injury over the long term.
Tools & Materials
- Soldering iron(Set to a low-to-medium temperature; use a heat sink when possible.)
- Lead-free rosin-core solder(Choose flux-core solder for electronics to improve wetting.)
- Flux (rosin-based)(Apply a light coat to improve joint quality.)
- Solder wick (braid)(For removing excess solder and correcting mistakes.)
- Isopropyl alcohol (cleaning 70-99%)(Clean surfaces before tinning.)
- Heat sink or clamps(Protect the battery by dissipating heat away from the cell.)
- Multimeter(Check continuity and insulation after joining.)
- Insulating tape or heat shrink(Insulate exposed conductors and joints.)
- Battery holder or jig(Secure the battery during soldering.)
- Safety glasses(Protect eyes from heat and flux splashes.)
- Disposable gloves(Minimize transferring oils; optional.)
- Lint-free wipes(Clean off flux and residues without leaving fibers behind.)

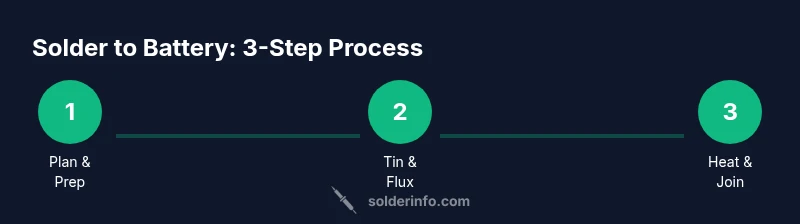

Steps
Estimated time: 30-60 minutes
- 1
Inspect battery and plan connection
Carefully assess the battery for integrity. Identify the exact terminal or tab you will connect to, and plan the wire path so there is no strain on the joint. Visualize the heat flow and ensure you can reach the joint with the iron without contacting the cell body.
Tip: Label wires or take a quick photo to avoid mixing up leads later. - 2
Prepare workspace and safety gear
Set up a stable, well-ventilated workspace with a heat-resistant mat. Put on safety glasses and gloves, and ensure that all flammable materials are removed from the area. Position the battery holder to keep the cell steady during soldering.
Tip: Keep a clear path between the iron and the battery; avoid overreaching. - 3
Disconnect power and isolate the area
If the battery is in a device, disconnect the device from power to prevent accidental operation. Remove any protective circuit boards or enclosures that may be damaged by heat exposure.
Tip: Never attempt to solder with the battery connected to a live circuit. - 4
Clean and degrease contact surfaces
Wipe the contact surfaces with isopropyl alcohol until they look shiny and clean. A clean surface improves solder adhesion and reduces the risk of corrosion at the joint.
Tip: Avoid touching cleaned surfaces with bare fingers to prevent oils. - 5
Tin the wire or tab and apply flux
Lightly tin the wire or tab end with a small amount of solder, then apply flux to the contact area to improve wetting. The goal is a thin, even layer that won’t cause excess solder buildup.
Tip: Do not apply flux directly to the battery can; target the lead/tab area. - 6
Position, heat, and form the joint
Place the wire or tab on the cleaned contact surface and apply heat with the iron in a steady, controlled manner. Let the solder flow and form a fillet, but avoid prolonged contact that could transfer excess heat to the cell.
Tip: Use a heat sink to draw heat away from the battery and stop as soon as the joint wets. - 7
Cool, inspect, and insulate
Allow the joint to cool naturally, then inspect for a clean, shiny fillet without gaps. Insulate exposed conductors with tape or heat shrink to prevent shorts. Test continuity with a multimeter to confirm a solid connection.
Tip: If the joint looks dull or cracked, rework with fresh flux and solder. - 8
Test and verify safety
After cooling, reassemble the device and perform a careful functional check. Look for excessive heat, swelling, or unusual smells during initial operation. If anything seems off, disconnect power and reassess.
Tip: Observe the battery for several minutes of operation before applying load.
Quick Answers
Is it safe to solder to a battery?
Soldering to a battery can be safe if you follow strict safety guidelines, use appropriate materials, and avoid heating the cell. For Li-ion cells, consider safer alternatives like spot-welding when possible. If you must solder, minimize heat input and inspect the battery afterward.
Soldering a battery is possible with care, but you must minimize heat and always inspect the cell afterward.
Which types of batteries can be soldered?
Most discussions focus on external connections to battery terminals or tabs. Li-ion and Li-polymer cells require extra caution; where possible, use pre-tabbed cells or mechanical connectors. Always assess the risk and consider safer alternatives when working with energy storage cells.
Li-ion cells require extra caution; safer options are preferred when possible.
What should I do if the battery starts to swell after soldering?
If swelling occurs, stop using the battery immediately and disconnect it from the circuit. Do not puncture or crush the cell. Isolate the battery and dispose of it according to local safety guidelines.
If swelling happens, stop, disconnect, and seek proper disposal guidelines.
What tools help reduce heat exposure during soldering?
Use heat sinks, shorter heat pulses, and properly rated tools. Keep the iron’s contact time brief and avoid dragging across the cell surface. A good setup minimizes heat transfer to the battery.
Use a heat sink and brief heat pulses to limit heat exposure.
Can I solder while the battery is in the device?
Soldering with the battery in use can short or damage circuits. Remove power and isolate the battery before starting. If you must work near other components, ensure they are protected and won’t short the joint.
Don’t solder with power on or battery in the circuit. Isolate first.
What are signs of a bad solder joint on a battery?
A poor joint may look dull or fractured, may crack with slight movement, or show a hazy flux residue. A true good joint should be smooth, shiny, and mechanically stable. If you can wiggle the wire, it’s likely a bad joint.
Look for dullness, cracking, or looseness as signs of a bad joint.
Watch Video
Top Takeaways
- Plan before you solder to avoid heat exposure
- Use proper heat sinks and low-temp techniques
- Prefer non-heat joining options for Li-ion cells when possible
- Inspect joints and insulation for reliable, safe connections
