Solder Pad: Definition, Types, and Best Practices
Learn what a solder pad is, how it functions on a PCB, and practical tips for designing reliable pad layouts, finishes, and quality control in electronics assembly.

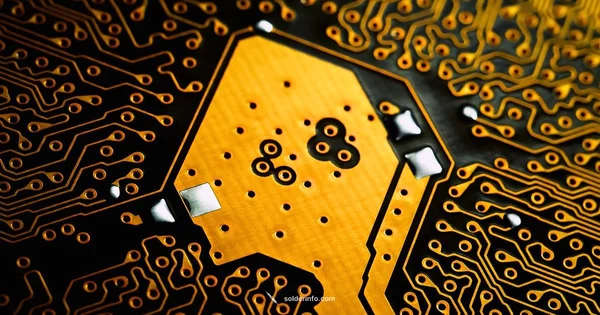

Solder pad is a small copper land on a printed circuit board used to receive solder during assembly, forming an electrical connection between a component lead and the PCB.
What is a solder pad and why it matters
Solder pads are the anchor points for components on a PCB. Without well defined pads, solder joints may crack, wick away, or fail to form a solid electrical connection. In practice, pads influence solder fillet formation, heat transfer during reflow, and the mechanical stability of the mounted part. According to SolderInfo, the pad geometry should align with the component footprint while maintaining enough copper area to support proper wetting and reliable joints. The pad also serves as a boundary for solder mask, which protects copper except at the landing areas. When pads are poorly designed, even perfectly printed solder paste or well-controlled reflow can produce subpar joints. For hobbyists and professionals, starting with a clean pad layout that follows standard footprints reduces troubleshooting time and improves yield. In short, a pad is not just metal on a board; it is the critical interface where electronics meet physical form.
Types of solder pads
Pad types vary with the device footprint and mounting method. Surface mount pads are often wider and shorter to promote even solder wetting from each lead, while through hole pads use longer teardrop shapes to guide insertion and reduce stress on the copper. Teardrops add resilience where tracks meet pads and help with mechanical reliability. For integrated packages such as QFP or BGA, exposed and thermal pads require special treatment to manage heat and solder flow. In some designs, castellated pads or half pads are used to enable edge connections or hand soldering. The choice of pad type influences paste deposition, stencil design, and reflow behavior. The goal is to create a geometry that accepts solder predictably, maintains positional accuracy during reflow, and yields a strong, uniform joint on every lead.
Pad design considerations for reliability
Pad design is a balance between manufacturability and performance. Critical considerations include pad size relative to the component lead, pad-to-pad spacing to minimize solder bridging, and the size of solder mask openings to protect copper while exposing pads where solder needs to wet. The finishing layer on copper—such as ENIG, HASL, or OSP—affects wettability, corrosion resistance, and long-term reliability. Adequate thermal relief for power devices helps control heat flow during reflow, reducing the risk of cold joints. The footprint should also account for stencil alignment, paste volume, and the anticipated reflow profile. Good pad geometry supports consistent solder wetting, predictable fillets, and durable mechanical strength over the life of the product.
Common solder pad failure modes and how to prevent them
Common issues include solder bridging between close pads, tombstoning of small passives, and lifted copper from pads after harsh reheating. Prevention starts with clear design rules: sufficient spacing, proper mask clearance, and accurate paste deposition. Use appropriate reflow profiles and avoid excessive heat exposure for sensitive components. If a pad lifts during assembly, re-evaluate copper thickness, finish, and masking; consider using teardrop shapes at track intersections to reduce stress. Regular inspections during prototyping help catch layout defects before production, and adhering to established footprints minimizes variability across manufacturing runs.
Solder pad materials and finishes
Pads begin as copper lands and are finished with a protective layer to resist oxidation and promote reliable soldering. Common finishes include electroplated nickel gold in ENIG, hot air solder leveling HASL, and organic solderability preservatives OSP. Each finish has tradeoffs: ENIG offers excellent solderability and corrosion resistance, HASL is cost-effective but can cause height variation, and OSP provides good initial wetting with lower long-term protection. Pad copper thickness and finish choice affect wettability, planarity, and joint reliability across temperature cycling. When designing pads, align finish type with the board’s intended operating environment and assembly process.
Best practices for maintenance and inspection
After assembly, clean flux residues to prevent corrosion and inspect pads for signs of bridging, wear, or discoloration. Visual inspection with magnification helps catch defects early, and X-ray inspection can reveal hidden issues in complex BGAs. For hand solderers, practice consistent iron temperature and dwell time to avoid thermal shock that can lift pads or burn masking. Routine checks during production runs reduce unexpected failures and improve overall yield. Documentation of pad failures and corrective actions supports continuous improvement and reliability across your projects.
Tools and workflow for pad quality control
A robust pad quality workflow combines careful design, stencil alignment, and controlled reflow. Start with validated footprints and CAD libraries to ensure pad geometry matches component leads. Use test coupons to verify solderability and finish integrity and maintain clean stencil rolls for repeatability. During assembly, monitor paste height and alignment, perform visual checks, and set up simple electrically isolated test points to verify connectivity. A disciplined approach to pad QC helps catch manufacturing variability and maintains consistent solder joints across batches.
Quick Answers
What is a solder pad and how does it function?
A solder pad is a copper landing on a circuit board where a component lead is soldered to create an electrical connection. It also provides mechanical support and helps control heat during soldering and reflow.
A solder pad is a copper landing on a circuit board for soldering a component lead, forming a reliable electrical connection and physical support.
How does pad size affect soldering quality?
Pad size influences how solder wets the joint and how heat is distributed during soldering. Too small pads can cause weak joints; too large pads raise the risk of bridging and tombstoning for small packages.
Pad size affects wetting and heat flow. Small pads risk weak joints; large pads increase bridging risk.
What finishes are common for solder pads?
Common finishes include ENIG, HASL, and OSP, each with different effects on solderability, corrosion resistance, and surface planarity. The finish choice should match the board’s use and production process.
Typical finishes are ENIG, HASL, and OSP, chosen for solderability and durability.
What causes tombstoning and how can I prevent it?
Tombstoning happens when components lift on one end during soldering due to unequal heat or paste volume. Prevent by balancing thermal mass, ensuring consistent paste for both ends, and using proper reflow profiles.
Tombstoning occurs from uneven heating; prevent it with balanced heat and paste and a proper reflow profile.
What is via in pad and why is it problematic?
Via in pad places a plated through-hole into the solder land, which can wick solder away and create voids. Avoid by avoiding vias in pad or filling and plating them to keep surface planarity.
Via in pad can pull solder away and cause voids; avoid it or plug vias to maintain pad quality.
How can I inspect solder pads for reliability?
Inspect pads with magnification for surface defects, bridging, and lifted copper. For complex assemblies, use X-ray inspection to verify inner joints and solder integrity.
Inspect with magnification and, if needed, X-ray to check hidden joints and solder integrity.
Top Takeaways
- Start with standard footprints to reduce soldering issues
- Choose pad shapes and spacing to minimize bridging
- Select appropriate finishes for reliability and manufacturability
- Inspect pads regularly and address lift or corrosion early
- Maintain a clean workflow from design to reflow
