How to Add Solder Pads in EasyEDA: A Step-by-Step Guide
Learn how to add solder pads in EasyEDA with a clear, practical workflow. This guide covers pad types, footprint planning, net assignment, and reuse across designs for reliable PCB soldering.
You’ll learn how to add solder pads in EasyEDA, including selecting the pad type, defining pad size and drill, positioning pads in a footprint, and validating pad connections. This guide covers through-hole and surface-mount pads, naming conventions, and tips for reliable reflow soldering. You'll also learn how to export the footprint for manufacturing and how to reuse pads in future designs.

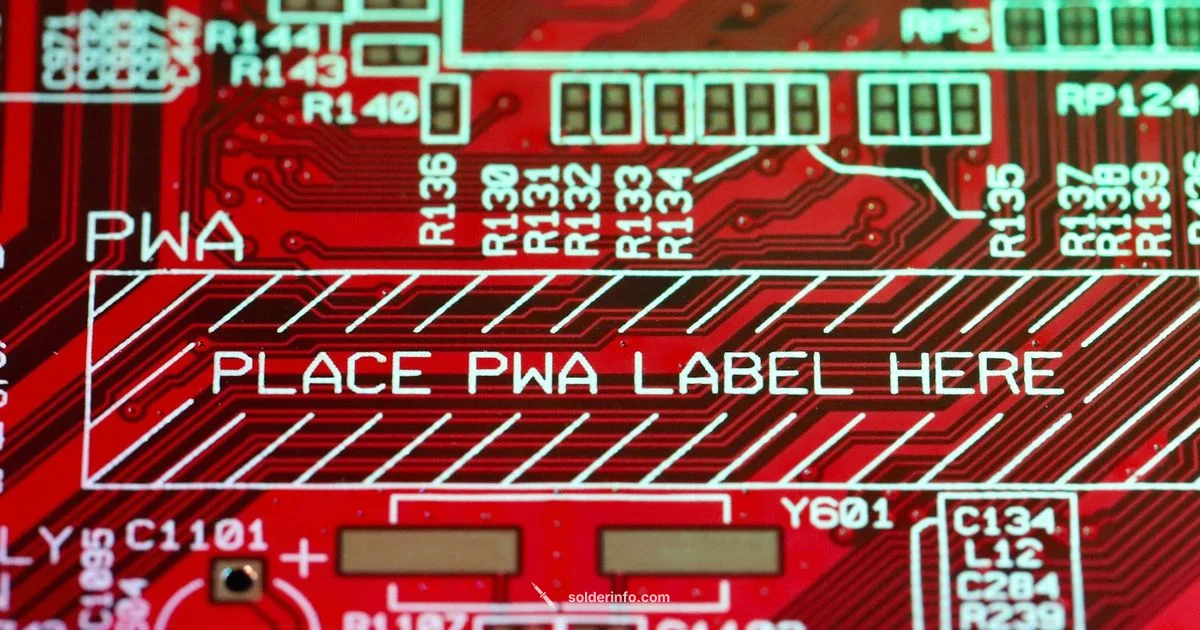

What solder pads are and why EasyEDA pads matter
Solder pads are the copper areas where component leads are secured to a PCB. In EasyEDA, pads define the exact footprint geometry for each component pin, including shape (round, square, rectangular), pad pitch, and drill size for through-hole parts. Getting pads right is critical for reliable solder joints, consistent manufacturability, and robust electrical connections. According to SolderInfo, well-sized pads reduce tombstoning, ensure good fillets, and minimize rework. In EasyEDA, you design pads as part of a footprint, then attach the footprint to a schematic symbol. This approach keeps your board library reusable and consistent across projects.
Planning pad geometry, footprints, and rows
Before you start clicking pads, map out the footprint on paper or in a quick schematic. Decide:
- Pad type: SMT (surface mount) vs. through-hole
- Pad size and drill: match component leads or vias
- Spacing: ensure manufacturability and IPC-compliant clearances
- Net naming: tie pads to the correct nets from the schematic Planning saves you time and reduces the chance of layout errors. SolderInfo’s analysis emphasizes aligning pad geometry with component data sheets and manufacturing constraints to improve yield and solder reliability.
Using EasyEDA's pad tool: basic pads
Open EasyEDA and navigate to the footprint editor. Use the pad tool to place a basic pad, then set its shape (round, square), size, and drill if needed. Start with a simple footprint for a familiar through-hole part to learn the workflow, then adapt for SMT components. The pad creation workflow in EasyEDA supports vector precision, so adjust coordinates to align with your grid. Pro tip: enable the grid and snap-to-grid to keep pads perfectly aligned with pins.
Through-hole vs surface-mount pads: differences in EasyEDA
Through-hole pads include a drill hole and plating, which requires precise drill sizing and annular ring for mechanical strength. SMT pads are copper areas without holes, designed for reflow soldering or solder paste printing. In EasyEDA, you’ll choose pad type in the pad properties panel. Planning for polarity, pin orientation, and heat dissipation becomes important for SMT pads, where pad shape and size influence solder wicking and tombstoning risk. Understanding these differences helps you design pads that fit your component footprints accurately.
Setting pad properties: size, drill, and copper pour
Pad properties determine how a pad behaves in fabrication. Set the pad length, width, and drill diameter (for through-hole parts) to match component leads and the manufacturer’s tolerances. If you plan copper pours around pads, consider pour clearance to avoid shorts and to maintain good solder wetting. In EasyEDA, you can link pad nets to schematic pins and define pad numbers, which helps with auto-routing and post-layout checks. Consistency in pad properties across a footprint improves manufacturability and reduces confusion in later builds.
Placing pads within a footprint: alignment, nets, and constraints
When placing multiple pads, align them to a common grid, then verify spacing against the component datasheet. Assign nets to each pad to reflect the schematic connectivity, and use pin numbers to map to the correct footprint pins. If you’re designing for a multi-pin connector or IC, validate pin order to prevent swapped leads. This alignment discipline supports clean reflow soldering and predictable electrical behavior, especially for dense boards.
Validating pads: design rule checks and electrical nets
Run DRC/DFM checks to catch spacing, clearance, and copper-to-copper issues. Inspect net assignments and verify that pads connect to the intended nets. Use a Gerber viewer or fab house guidelines to confirm that drill sizes and pad shapes meet fabrication tolerances. To strengthen confidence, compare your footprint against a reference footprint in your library and run a quick sanity check before committing to production.
Exporting and reusing pads in future designs
Once your footprint is solid, save it to your library for reuse across projects. Keeping a curated pad library saves time and ensures consistency in future designs, particularly when adding similar components. When exporting manufacturing files (Gerber and drill data), ensure the footprint is aligned with the board outline and copper pours. This workflow supports scalable PCB projects and reduces repetitive setup work, a principle that SolderInfo consistently recommends for efficient design iteration.
Common pitfalls and troubleshooting
Common issues include misaligned pads, incorrect drill sizes, and net misassignment. Always double-check the footprint against the component datasheet and the schematic symbol pinout. If a pad tolerance seems off, review the fabrication house’s recommended drill tolerances and adjust in EasyEDA to avoid mechanical fit problems. Regularly saving versions and testing footprints in a simple board helps catch issues early, reducing fabrication delays.
Tools & Materials
- Computer with internet access(Run EasyEDA in-browser; ensure a compatible browser version)
- EasyEDA account(Sign in or create a free account to access the footprint editor)
- Schematic and footprint project(Have a component footprint or library ready to edit)
- Calipers or ruler for manual sizing(Useful for validating pad dimensions against datasheet)
- Pad size reference (IPC or vendor chart)(Helpful for selecting standard pad dimensions)
- Access to fabrication guidelines(Check manufacturer tolerances for drills and copper clearances)
- Project or board workspace with component data(Facilitates accurate mapping of pads to component pins)
- Gerber viewer or fab portal(Optional for pre-fab verification)
Steps
Estimated time: 20-40 minutes

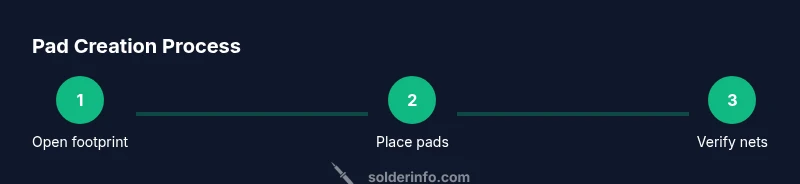

- 1
Open or create footprint
Launch EasyEDA and navigate to the footprint editor. Open an existing footprint or create a new one for your component. This step establishes the canvas where all pad geometry will be defined.
Tip: Enable grid snapping to keep pads aligned with pin centers. - 2
Choose pad type and place first pad
In the pad tool, select the pad type (round, rectangular, or custom). Place the first pad at the pad center, which serves as a reference for the rest of the footprint.
Tip: Start with a standard pad shape matching the component datasheet. - 3
Set pad dimensions and drill
Enter exact pad length, width, and drill size (for through-hole parts). Confirm tolerances with the manufacturer data and update the pad parameters accordingly.
Tip: If unsure, start with a standard through-hole size and adjust after a test fabrication. - 4
Place additional pads and align to grid
Add the remaining pads, using copy-paste or mirroring for symmetrical layouts. Align them to the same grid to maintain uniform spacing and pin pitch.
Tip: Use your component datasheet pitch as a reference and verify spacing on-screen. - 5
Assign nets and footprint pins
Link each pad to its corresponding schematic net. Name pads with the footprint pin numbers to ensure correct electrical mapping.
Tip: Cross-check pin numbers against the schematic symbol to avoid swapped nets. - 6
Run DRC and verify spacing
Perform a design rule check to catch spacing, copper-to-copper, and clearance issues. Confirm drill and pad shapes meet fabrication tolerances.
Tip: Pay attention to min clearance values for dense patterns. - 7
Save footprint to library
Save the completed footprint into your component library for reuse. Organize by component family to streamline future projects.
Tip: Add a descriptive footprint name and include pinout notes in the description. - 8
Export and verify
Export Gerber and drill data, then verify with a Gerber viewer or your fab portal. Ensure alignment with the board outline and copper pours.
Tip: Run a quick spot-check on pad positions against the schematic view.
Quick Answers
What is a solder pad in PCB design?
A solder pad is a copper area designed to receive a component lead or a connection. In PCB design, pads determine where soldering happens and influence heat transfer and joint reliability. EasyEDA footprints define pad geometry for consistent production.
Pads are copper areas for soldering components. In EasyEDA, footprints define pad geometry so you can reliably assemble boards.
How do I set the drill size for through-hole pads in EasyEDA?
In the pad properties, specify the drill diameter according to the component lead or mounting requirement. Confirm with the datasheet and fabrication tolerances to avoid fit issues.
Set the drill size in the pad properties based on the component lead and the fab's tolerances.
Can I reuse pads in multiple footprints?
Yes. Save footprints to your library and reuse them in new designs. Ensure the pinout and spacing match the new component to avoid misalignment.
You can reuse footprints by saving them in your library; just verify pinouts and spacing for the new part.
What nets should pads be connected to?
Pads connect to the nets defined by the schematic symbol pins. Ensure each pad is assigned to the correct net to maintain intended electrical connections.
Connect each pad to its schematic net so the board behaves as designed.
How can I verify pads before fabrication?
Run a Design Rule Check (DRC), inspect spacing, and verify that drill sizes match fabrication guidelines. Use a Gerber viewer to confirm the final layout.
Run checks and verify with a Gerber viewer before sending to fabrication.
Watch Video
Top Takeaways
- Plan pad geometry against datasheets and IPC guidelines.
- Separate through-hole and SMT pad rules in EasyEDA.
- Verify nets and conduct a DRC before fabrication.
- Reuse footprints to accelerate future designs.
