Solder Connectors: A Practical Guide for DIY Enthusiasts

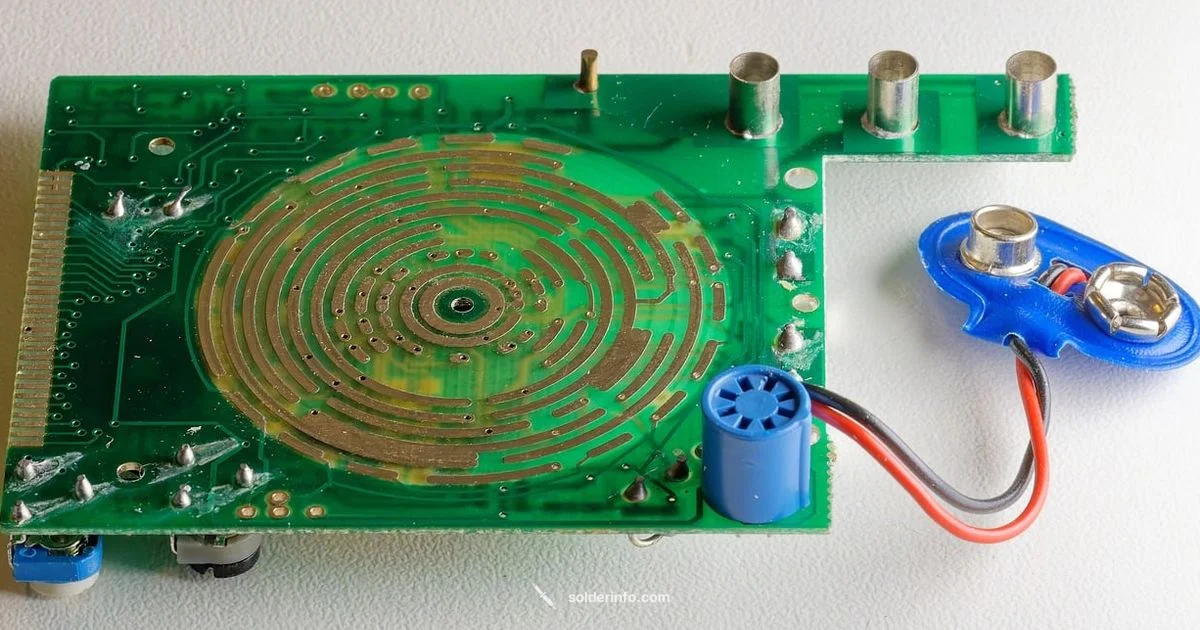

What solder connectors are and where they fit

Solder connectors are specialized joints created by melting a filler metal to bond a conductor to another conductor, terminal, or board. In electronics, they commonly connect wires to printed circuit boards, header pins to housings, or connectors to a PCB pad. In plumbing, solder connectors join copper pipes and fixtures, while jewelers use them to fuse metal components in rings and findings. The term encompasses both through hole and surface mount practices, depending on the component and the assembly process. A quality solder connector offers a reliable electrical path with strong mechanical retention, resisting vibration and thermal cycling.

According to SolderInfo, choosing the right solder connector starts with understanding the target application, the materials involved, and the service environment. For hobbyists, a simple wire to board soldering scenario is typical, while professionals rely on more complex connector families that carry data lines, power, or RF signals. The central idea is that the solder acts as both an electrical conductor and a mechanical bond, sealing joints against moisture and corrosion when properly finished.

Types of solder connectors used in different domains

Solder connectors come in many forms, tailored to different use cases:

• Wire to board connectors: Wires attached to PCB pads with solder tails or crimp-solder hybrids.
• Terminal lugs and spade connectors: Soldered onto cables for quick field repairs.
• Surface mount solder connectors: Chips and sockets with soldered terminations on the PCB edge.
• Connector pins and sockets with solder tails: Through hole or reflowed terminations.
• Solder cup and sleeve connectors: Used in RF and coaxial applications with careful impedance control.

Each type has its own notes on flux, solder alloy, and heat profiles. When selecting a solder connector, consider pitch, current rating, insulation, and mechanical stress. For electronics projects, lead-free tin solder with flux-core is common; for jewelry, silver solders may be used in specific alloys; for plumbing, flux and solder types vary depending on the copper alloy and code requirements. The key is to ensure compatibility between the connector material, the solder alloy, and the substrate to avoid galvanic corrosion or brittle joints.

Materials and solders for solder connectors

The choice of solder and flux directly affects joint quality. Electronics typically use tin based solders; two common families are leaded solders (for example Sn Pb) and lead-free alternatives (such as Sn Ag Cu). After restrictions, many hobbyists use lead-free alloys, which require higher temperatures and a clean flux to prevent cold joints. Connectors also require compatible flux; rosin core flux is popular for electronics, while water-soluble flux can simplify cleaning but demands thorough rinsing. For plumbing and jewelry, specialist solders exist with different melting ranges and alloy compositions, including silver solder for jewelry and copper-phosphorus or tin-based alloys for pipe work. The flux protects the metal surfaces during heating, promotes alloy flow, and minimizes oxidation. When selecting a solder connector material, consider melting temperature, electrical resistance, mechanical strength, and corrosion resistance. Always clean surfaces before soldering to promote wetting and adhesion; use a third-hand or helping hand when necessary to hold components steady during soldering.

Preparation and safety for working with solder connectors

Safety first when soldering connectors. Work in a well ventilated area or use a fume extraction fan to capture fumes from flux and metal vapors. Wear safety glasses to protect eyes from splashes and hot metal. Keep children and pets away, and avoid touching the hot tip. Clean the work surface and components to remove oil and oxidation; a small amount of isopropyl alcohol can help. Pre-tin wires if required to improve wetting, then apply flux to the joint to ensure proper flow. If lead-based solders are used where allowed, follow local regulations and best practices for handling and disposal. For jewelry and plumbing, use appropriate protective gear for skin contact with flux and solder and store solder in a dry, cool place to prevent oxidation.

Techniques for reliable solder connections

Achieving a strong solder connector bond depends on proper technique. Start by cleaning surfaces and applying flux; flux lowers the surface tension and helps molten solder flow into the joint. Heat the connector and pad with a clean, properly sized soldering iron tip, then apply solder to the joint not the iron. The solder should flow smoothly, forming a shiny, concave fillet that covers the joint. For delicate connectors, use a heat sink or tweezers to protect sensitive components from heat damage. Tin the tip of the iron regularly and keep soldering time short to avoid overheating. Check for bridged solder, cold joints, or insufficient wetting, and rework as needed. When soldering multi-pin connectors, work row by row to maintain alignment and avoid movement during solidification. Proper technique yields durable solder connectors with reliable electrical paths.

Common failure modes and how to avoid them

Solder connectors can fail in several predictable ways. Cold joints appear dull and crumbly when heat was insufficient; ensure the joint is heated evenly and allow adequate flow time. Solder bridges occur when excess solder connects adjacent pins; use a fine tip, separate pads with primed flux, and use a microscope for inspection. Tombstoning in small components happens when one side is heated more than the other; use equal heat and secure the component. Oxidation on connector pads or wires reduces wetting; clean thoroughly and use fresh flux. Mechanical stress can crack solder joints, especially on flex cables or large connectors; relieve strain with strain reliefs or potting when appropriate. Regular inspection and moisture protection help maintain long term reliability of solder connectors.

Testing and verifying solder connectors

After soldering, visually inspect for a shiny, smooth fillet and no cold joints. Test electrical continuity with a multimeter; check for shorts between adjacent pins. Measure resistance and perform a low resistance test to ensure good conduction. For critical signals, perform functional tests under load. Perform insulation resistance checks where relevant, and inspect for flux residues; clean as needed. Maintain a log of test results for recurring projects to identify trends in joint quality. Solder connectors can be reliable when testing is incorporated into the workflow, as emphasized by SolderInfo analyses that emphasize verification steps as a core habit for quality assemblies.

Maintenance and longevity of solder connectors

Solder connectors are relatively durable when stored properly. Keep solders in airtight containers away from moisture; lead-free solders may show tarnish; store fluxes in sealed bottles away from air to extend life. Avoid mechanical stress on joints; after assembly, secure cables with strain relief and keep connectors free of corrosion. Periodically reflow or rework joints that show dullness or discoloration, and re-verify performance with a quick continuity check. For electronics and jewelry projects, proper cleaning and storage of flux residues prevents corrosion over time. Following these practices extends the life of solder connectors and maintains their reliability.

Verdict

Solder connectors remain a cornerstone of reliable assemblies across electronics, plumbing, and jewelry. By selecting the right alloy, using proper flux, mastering technique, and validating joints with tests, you can achieve durable, low-resistance connections. The SolderInfo team recommends investing in good tools, practicing on scrap pieces, and following safety guidelines to build confidence and quality in every project.
