Reflow Soldering: A Practical Guide for Electronics

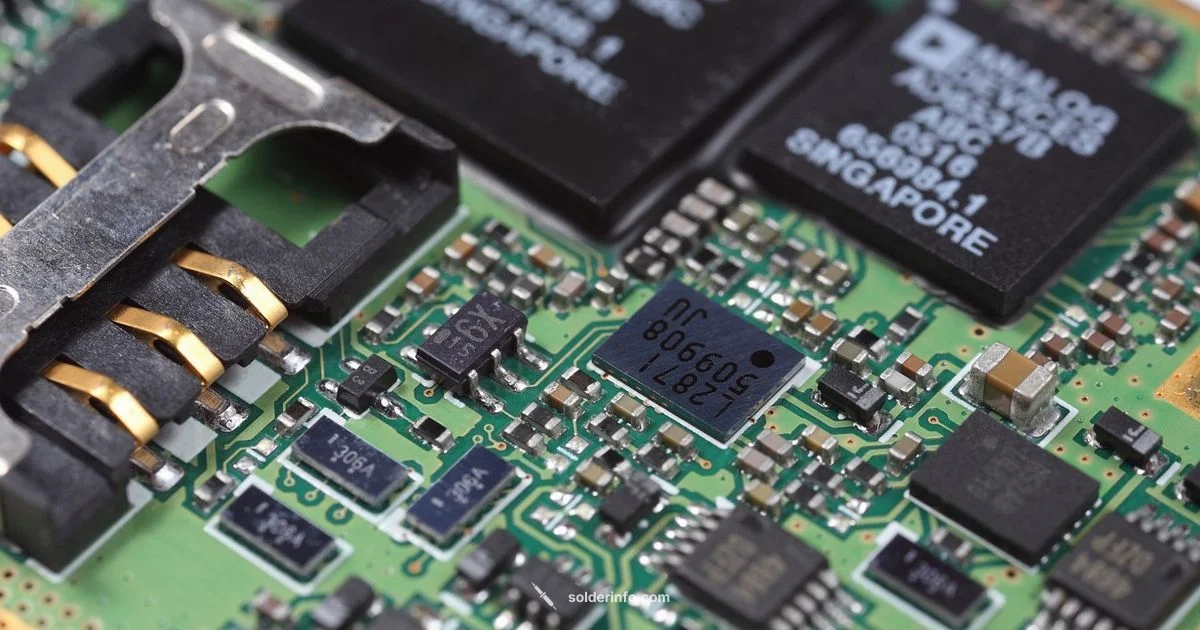

What is reflow in electronics

Reflow is a soldering method used to attach surface mount components by heating printed solder paste until it melts and forms joints. According to SolderInfo, this approach standardizes electronics assembly by producing reliable solder joints across dense component layouts. In practice, the process starts with depositing solder paste on the PCB through a stencil, followed by precise placement of components, and then passage through a controlled heating stage known as a reflow profile. The goal is to heat the paste just long enough for the solder particles to melt and flow into the pads, creating robust electrical connections after cooling. When done correctly, reflow yields consistent joints on high density boards and reduces manual handling. For hobbyists and professionals, mastering reflow reduces defects and improves yield, especially on small boards with many fine pitch components. The strategy works with both leaded and lead free alloys, but the details of flux and paste selection matter for reliability. Understanding reflow sets the foundation for better assembly outcomes.

How a reflow cycle works

Reflow cycles are designed to bring a board from ambient temperature to a peak temperature that melts the solder paste, and then back to room temperature in a controlled manner. The cycle typically includes a preheat stage to bring all components up gradually, a soak where flux becomes active and solvents evaporate, a ramp or rise phase to the peak temperature, a brief reflow or plateau where solder coalesces, and a cooldown phase to solidify joints. Each stage is tailored to the board's thermal mass, paste type, and component mix. The goal is to promote uniform heating and avoid overheating any single area. For consistent results, keep the board moving through the oven with uniform conveyor speed or stable hot air flow and monitor temperatures with reliable sensors. Solder paste viscosity, flux activity, stencil design, and board layout all influence the final joints. Practically, ensure there is adequate ventilation to manage fumes and follow manufacturer guidelines for safe operation. When in doubt, start with a conservative profile and adjust based on observed joints.

Solder paste and stencil printing basics

Solder paste is a viscoelastic mix of alloy particles and flux that is printed through a stencil onto PCB pads. The stencil thickness and aperture determine the amount of paste deposited; too much or too little causes defects. Flux within the paste cleans oxides and aids wetting, and non-clean flux schemes require less post-processing but leave residues. For reliable results, use paste with a flux type compatible with your solder alloy and component mix. Printing is done with a squeegee or printer that pushes paste through the stencil onto the copper pads. After printing, components are placed with a pick-and-place system or manually, and the assembly moves to the reflow oven. Paste characteristics, stencil quality, and printing speed all influence joint quality.

The reflow profile explained

An ideal reflow profile is defined by the interaction between paste, components, and board material. The preheat stage warms the board gradually to minimize thermal shock and to drive off solvents, while the soak stage activates flux and improves solder wetting. The ramp or peak stage brings the solder to its melting point and enables proper coalescence of solder balls into a continuous joint. Finally, the cooling stage solidifies the molten solder and locks in the joint quality. The exact temperatures and times depend on the alloy and paste, but the principle remains: heat evenly, avoid thermal gradients, and prevent overheating sensitive components. In practice, monitor the profile with thermocouples attached to the board to ensure all sections reach comparable temperatures. The right profile reduces defects such as voids, bridging, and tombstoning and improves repeatability across batches.

Material choices: flux, solder paste, and alloys

Choosing the right solder paste and flux is as important as the profile. Paste comes in various alloy formulations, viscosity levels, and flux chemistries. For electronics, common choices include leaded and lead-free pastes; lead-free variants are designed to meet RoHS and related standards. Flux types range from rosin-based, water-soluble, to no-clean; each type leaves different residues and handling requirements. The location and material of assemblies influence flux selection: dense, fine-pitch boards benefit from low viscosity pastes for better stencil printing, while larger boards tolerate thicker pastes. Alloys used in paste are designed to melt and reflow reliably on copper pads with typical surface finishes. Consider the compatibility of paste with your stencil, components, and cleaning method. Consistency in paste age and storage is essential, as expired paste can lose flux activity and print quality. Always test a small lot before committing to a full run.

Lead-free vs leaded and compliance considerations

Lead-free reflow is common in commercial electronics due to RoHS compliance and environmental concerns. Leaded solders have different melting behavior and may require different peak temperatures and dwell times, so your profile must adapt when switching alloys. Regulations and supplier guidelines advise using appropriate alloys to balance reliability, manufacturability, and work safety. In lead-free systems, joints may form slightly different shapes and can be more susceptible to whiskers or thermal fatigue if the profile is not optimized. For hobbyists, the choice between leaded and lead-free also depends on availability and cleanup needs. Regardless of the alloy, good flux management, proper stencil printing, and correct reflow profiling remain the main drivers of joint reliability.

Common defects and how to prevent them

Reflow defects include solder bridging between pads, tombstoning of small components, voids inside joints, skewed joints, and insufficient wetting. Causes include uneven ramp, poor stencil design, contaminated paste, or misalignment. Prevention strategies include uniform heat transfer by using proper board layout, ensuring even paste deposition, choosing compatible flux, and cleaning stencils to avoid dried paste. When defects occur, reflowing with a revised profile or reballing the pad can help; destructive rework should be avoided where possible. For sensitive components like fine-pitch devices, keep exposures short and consider using a pre-bake step to reduce moisture.

Practical setup for hobbyists and small shops

Even small shops can achieve reliable reflow with the right tools. A compact convection reflow oven or a hot air rework station paired with a solder paste printer and a stencil yields good results. Set up a dedicated area with ventilation and fume extraction; store paste and flux as recommended by the manufacturer to maintain activity. Practice on test boards with known patterns to dial in your profile, stencil thickness, and paste deposition. Document the profile for each board type and keep spare components and boards for quick iteration. In addition, clean and inspect boards carefully after reflow to catch any issues early. Soldering is a science, but with a thoughtful setup, hobbyists can achieve professional results.
