How to Use Solder Wick: A Practical Guide
Learn how to use solder wick to lift excess solder, remove bridges, and restore clean joints. This guide covers wick selection, flux usage, technique, and safety for electronics, jewelry, and plumbing projects.
Today you’ll learn how to use solder wick to lift excess solder from joints, remove bridging, and restore clean connections. You’ll learn wick selection, flux use, and capillary action techniques for reliable results. This step-by-step guide from SolderInfo shows practical, safe methods for electronics and other soldering tasks.
What is Solder Wick and Why It Works
Solder wick is a fine braided copper braid designed to draw solder away from joints through capillary action. When you apply flux and bring the wick to a molten solder joint, capillary action pulls the solder into the braid, leaving a cleaner joint. This principle makes wick particularly effective for removing bridges on fine-pitch components or cleaning pad areas without disturbing nearby traces. According to SolderInfo, the most reliable desoldering results come from using fresh wick (not heavily loaded with solder) and applying just enough heat to melt the solder without overheating components. Store wick in a dry place; moisture can impede capillary action. In practical terms, you’ll choose a wick width that roughly matches the joint width and use a flux that helps the solder flow into the braid. This article explains how to use solder wick safely across electronics, jewelry, and plumbing contexts.
When to Use Solder Wick
Solder wick shines in situations where excess solder has bridged between pads, a joint is too solder-rich, or you need to clean up a blob around leads. It’s especially handy for DIP and QFP bridges, through-hole pin joints, and small surface-mount pads where a desoldering pump struggles to reach. If you see a shiny ribbon of solder between two copper areas, wick it away. Keep in mind that wick is not a substitute for proper rework tools in all situations; for stubborn joints, you may need a hot air station or a dedicated desoldering pump. When used correctly, wick minimizes heat impact since you can remove solder with short bursts of heat and quick lift of the braid.
Choosing the Right Wick and Flux
The most important choice is selecting fresh, uncontaminated wick and a compatible flux. Copper braid comes in different widths; for fine pitch boards, choose a narrow option to avoid side-effects on adjacent pads. Use a flux that matches your solder type; rosin-core flux or no-clean flux works well with most electronics and jewelry soldering tasks. Flux improves wetting and capillary action, helping the solder move into the braid rather than spreading elsewhere. Before you start, review the joint geometry and plan a path along the pads to minimize ripple and bridging. SolderInfo analysis shows that flux-assisted wick yields cleaner separations with less residue on sensitive pads.
Technique: Using Solder Wick Effectively
To use solder wick successfully, you’ll begin with the right flux and a clean joint. Touch the wick to the solder bridge and place your heated iron on or near the wick. The molten solder will be drawn into the braid; lift both wick and iron together after a second or two. For best results, keep the joint stable and avoid sliding the wick across the pad, which can cause damage. After wick absorbs solder, lift it straight up to prevent extra solder from leaking back. Use short, deliberate heat pulses and move to a fresh section of wick as soon as you see the braid darken with solder.
Common Mistakes and How to Fix Them
- Overheating components: Excess heat can lift pads or damage components; always use the minimum heat needed.
- Using old wick: Wick that’s loaded with solder is less effective and can contaminate the joint. Replace as needed.
- Not using flux: Flux is essential to promote wetting; skip flux and you’ll struggle to draw solder.
- Rushing steps: Desoldering takes time; allow capillary action to work for 1-2 seconds before lifting.
- Leaving flux residue: IPA cleanup after wick use prevents corrosion and soot. By following these tips, you’ll minimize risk and improve joint quality. The SolderInfo team emphasizes practicing on scrap boards to build familiarity with real-world boards and the nuances of different alloys.
Tools & Materials
- Solder wick (copper braid)(Copper braid, select width to fit joint)
- Flux (no-clean or rosin-based)(Flux pen or bottle for wetting the joint and wick)
- Isopropyl alcohol (IPA) for cleaning(Use 70–99% IPA after desoldering to remove flux residues)
- Lint-free swabs or pads(For applying IPA and drying surfaces)
- Fine-tip tweezers(To position wick ends precisely)
- Soldering iron with temperature control(Keep heat at a moderate level to avoid pad damage)
- Desoldering mat or heat-resistant workspace(Protects your bench during desoldering)
- Safety glasses(Eye protection recommended)
- Waste container or dish(Dispose of used wick safely)

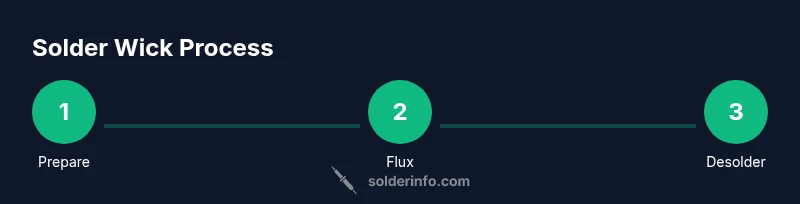

Steps
Estimated time: 25-40 minutes
- 1
Prepare workspace and safety gear
Clear the area and lay out all tools. Put on safety glasses and ensure good ventilation. Have IPA and a clean rag handy for quick cleanup.
Tip: Arrange components so that you can access the bridge without moving nearby parts. - 2
Choose wick and flux
Select a fresh wick slightly longer than the joint width. Pick a flux compatible with your solder type and the metals involved.
Tip: Never reuse wick that’s already loaded with solder; it won’t wick effectively. - 3
Apply flux to the joint
Apply a small dab of flux to the solder bridge or joint area. Flux improves wetting and helps capillary action draw solder into the braid.
Tip: A light, even coat is enough; excess flux can spread solder unintentionally. - 4
Position the wick
Place the end of the wick on the solder bridge, ensuring it lies flat across the joint with the braid contacting the solder.
Tip: Align wick to the direction of heat flow to maximize capillary action. - 5
Apply heat and draw solder into the wick
Touch the heated iron to the wick edge. The solder should melt and be drawn into the braid. Keep the iron still for a moment to allow capillary action.
Tip: If solder doesn’t move, recheck flux coverage and the wick contact. - 6
Lift wick and inspect
Lift the wick away while keeping it near the joint to avoid re-deposition. Inspect for remaining bridge and clean softened flux.
Tip: Move to a fresh section of wick if the braid darkens heavily. - 7
Reapply flux and repeat if needed
If bridges persist, re-flux and re-wick the area. Sometimes multiple passes are required for stubborn joints.
Tip: Work in small increments rather than trying to remove all solder at once. - 8
Clean and re-tin the pads
Clean the pads with IPA and a lint-free swab. Re-tin any exposed copper with a small amount of solder for a clean finish.
Tip: Re-tinning helps prevent future oxidation and ensures a good solder joint. - 9
Test the joint
Visually inspect for bridging and test continuity or function as appropriate. If the joint looks sharp and shiny, you’re likely done.
Tip: If you’re unsure, a second pass with fresh wick is safer than forcing a larger heat bath.
Quick Answers
What is solder wick and how does it work?
Solder wick is a braided copper braid designed to draw solder away from joints via capillary action. When used with flux and heat, the molten solder is absorbed into the braid, clearing bridges and cleaning pads.
Solder wick is a braided copper braid that soaks up melted solder when heated with flux.
Can I reuse solder wick?
Wick that has already absorbed solder becomes contaminated and loses capillary efficiency. Always use fresh wick sections for each pass.
Avoid reusing wick; fresh sections work best.
Is solder wick safe for sensitive components?
Yes, when used with careful heat control and flux, wick is generally safe for sensitive components. Avoid prolonged contact with pads and expect brief heating only.
Yes, with careful heat and flux, wick is usually safe for sensitive parts.
What if bridging remains after wick use?
Apply flux again and re-wick the area. In stubborn cases, use a fresh wick and light, repeated passes to gradually lift solder without overheating pads.
If bridges stay, re-wick with a fresh wick and flux.
Do I need flux when using solder wick?
Flux is essential. It improves wetting and capillary action, helping the solder move into the braid rather than spreading.
Flux is essential for effective wick desoldering.
Can solder wick be used for jewelry or plumbing?
Yes, wick works for many metals, but ensure you use appropriate flux and temperature settings for the material and joint type.
Wick can be used for jewelry or plumbing with proper flux and heat control.
Watch Video
Top Takeaways
- Prepare the area and tools before starting
- Flux and wick work together to lift solder cleanly
- Inspect and clean joints after wick use
- Practice on scrap boards to build confidence
- Use fresh wick for each pass to maximize effectiveness
