How to Check Soldering Quality: A Practical Guide
Learn proven methods to check soldering quality across electronics, plumbing, and jewelry. Step-by-step tests, visual cues, and safety tips from SolderInfo.

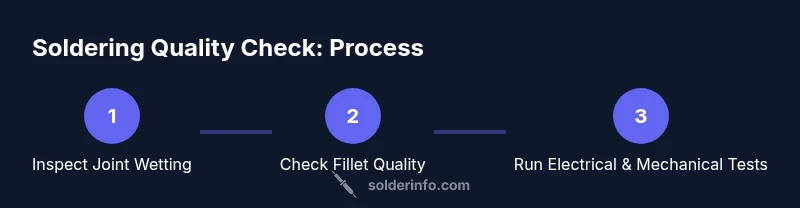

Using a simple, repeatable checklist, you will verify soldering quality: prepare the workspace, inspect joints visually, run basic electrical tests, and test mechanical integrity. This approach applies to electronics, plumbing, and jewelry work. According to SolderInfo, consistency and documentation matter as much as appearance, helping prevent future faults. Follow the steps in the guide for repeatable results. Keep notes for trend tracking.
What defines good soldering quality
Good soldering quality is more than a clean shiny blob. It depends on mechanical and electrical performance, reliability under temperature cycling, and consistent manufacturability. In electronics, a high-quality joint should wet the pad and lead, form a smooth fillet, and avoid tombstoning on small components. In plumbing and jewelry, the same principles apply: the joint should be homogeneous, free of voids, and mechanically strong. According to SolderInfo, reliability correlates with consistent fillet shape and proper wetting across all joints. A well-made joint shows a defined meniscus, no gaps, and no excess solder that could cause shorts. In practice, you’ll look for a concave fillet that fills the joint without creating a large ball that can crack or crack under stress. Establishing a clear acceptance standard before you start helps maintain consistency across parts and operators.
Visual inspection cues to assess solder quality
Visual inspection is the first and most accessible test. Look for a smooth, shiny fillet that fully covers the pad and lead without gaps. Joints should have a uniform shape with no balling, cracking, or bridging. Cleanliness matters: flux residues can conceal issues; wipe joints with isopropyl alcohol after cooling. Watch for oxidation on copper or plated surfaces, which can inhibit wetting. In professional settings, a magnifying loupe (or stereo microscope) helps you spot micro-voids and insufficient wetting that aren’t obvious to the naked eye. Consistency across multiple joints indicates a reliable process and reduces rework.
Electrical tests you can perform safely
Electrical testing confirms functional quality beyond appearance. Use a multimeter to check short circuits between adjacent pads and to verify continuity from pad to lead. Measure resistance where appropriate and compare against expected values for the circuit, noting any unexpected deviations. Check insulation between conductors to prevent leakage. For high-volume work, document test results and flag any joints that require rework. Electrical checks should be conducted with power off and components securely held in place to avoid movement during testing. The key is to catch shorts or opens before powering the system.
Mechanical integrity checks you can perform
Mechanical tests assess how well the joint resists physical stress. A gentle tug on the component should not detach the lead from the pad and should not cause visible movement of the joint. For wire-to-board joints, verify the bend radius and ensure solder adheres to both surfaces. In plumbing or jewelry contexts, verify that solder joints resist flexing and vibration without cracking. If a joint shows movement or deformation, rework it with fresh flux and a new solder fillet. Document results so you can identify recurring weak points in your process.
Common defects and how to spot them
Common defects include cold joints (gritty, dull appearance, poor wetting), solder bridges (bridging between adjacent conductors), tombstoning (one end lifts on small components), voids (air pockets within the fillet), and over-application (excess solder causing shorts). Each defect has telltale signs: cold joints look dull and rough; bridges appear as unexpected connections; tombstoning occurs when a component leans; voids show up as dark gaps in the fillet. Training yourself to recognize these patterns accelerates troubleshooting and reduces rework.
Solder alloys and flux choices for quality
Solder quality depends on selecting appropriate alloys and flux. Lead-free solders are common in modern electronics for RoHS compliance, but they can require slightly higher reflow temperatures and careful flux selection. Rosin-core flux helps wetting and oxide removal, while flux pens provide localized application for precision joints. Choose flux and solder to match the task: electronics benefit from low-residue flux; plumbing uses lead-free or tin-lead alloys as appropriate for piping. Remember to clean flux residues after inspection to prevent corrosion and ensure long-term reliability.
Safety, workspace setup, and best practices
Always work in a well-ventilated area with appropriate PPE. Keep a tidy workspace with good lighting and a heat-resistant mat. Use fume extraction when available, and never leave a hot iron unattended. Before starting, unplug devices and de-energize circuits. Label suspect joints for rework and maintain a log of results to track improvements over time. With consistent practices, you’ll reduce defects and improve overall soldering reliability.
Context-specific checks: electronics vs plumbing vs jewelry
Different applications warrant slightly different checks. Electronics emphasize pad wetting, fillet geometry, and resistance/continuity. Plumbing soldering prioritizes strong, watertight joints and appropriate pipe side clearance. Jewelry soldering demands clean lines, minimal flux residue, and aesthetic appeal combined with mechanical strength. Adapt your checks to the context while preserving core principles: correct heat, clean surfaces, and verified electrical/mechanical integrity where applicable.
Troubleshooting quick path for failing joints
If a joint fails a test, rework by removing excess solder, cleaning with flux and alcohol, and re-soldering with fresh flux. Recheck wetting and fillet shape after cooling. If problems persist, inspect for contamination, incorrect temperature, or insufficient tinning of the tip. Inconsistent results often trace back to dirty tools or poor flux application. Maintain a routine to catch issues early and standardize your process.
Documenting results and maintenance for long-term quality
Record key findings for each joint: visual quality, test outcomes, and any rework performed. Maintain a simple checklist or spreadsheet to identify trends, such as recurring defects at a particular component type or during a specific process. Regular audits and updates to your SOPs keep the workflow efficient and scalable. Documentation also helps onboarding new operators and maintaining consistency across shifts.
Tools & Materials
- Soldering iron (adjustable temperature preferred)(10-40 W for electronics; higher for plumbing)
- Solder (lead-free preferred)(rosin-core solder for electronics; RoHS-compliant alloys)
- Flux (rosin flux or flux pen)(improves wetting and oxide cleaning)
- Solder wick / desoldering braid(for tidy joints and removing excess solder)
- Flux cleaner or Isopropyl alcohol(to remove flux after inspection)
- Multimeter with continuity and resistance testing(essential for electrical checks)
- Magnifying loupe or microscope(for detailed visual inspection)
- Safety gear (safety glasses, fume mask)(protect from fumes and splashes)
- Helping hands / clamp(to hold components steady)
Steps
Estimated time: 30-60 minutes
- 1
Prepare workspace and materials
Set up a clean, well-lit area. Gather all tools and components, and power down any equipment. Position joints so you can access them easily and prevent movement during soldering.
Tip: Lay out components in order of assembly to minimize search time. - 2
Clean and pre-treat joints
Wipe joints with isopropyl alcohol to remove oil, grease, and oxides. Ensure pads and leads are dry and free of contaminants before applying flux.
Tip: A small amount of flux on the pad improves wetting and reduces joint variability. - 3
Tin the iron tip and apply flux
Pre-tin the iron tip lightly and apply flux to the joint. This lowers heat transfer resistance and helps the solder flow smoothly.
Tip: Keep the iron tip clean and re-tin after several joints to maintain performance. - 4
Place component and position joint
Secure the component and align the lead with the pad. Maintain an appropriate angle to avoid cold joints and ensure stable contact.
Tip: Be mindful of the thermal mass; larger components require more controlled heating. - 5
Solder with controlled heat and fillet
Touch the joint with the soldering iron at the pad- Lead interface and feed solder until a smooth fillet forms. Remove heat promptly once the joint wets.
Tip: Avoid overheating; excessive heat can lift pads or damage components. - 6
Inspect visually and test continuity
Let the joint cool, then inspect for a concave fillet, proper wetting, and absence of bridges. Use a multimeter to verify continuity and detect shorts.
Tip: If a joint looks dull or cracked, rework immediately. - 7
Perform mechanical test and adjust
Gently tug on the component and lead to verify mechanical integrity. If movement is detected, rework with fresh flux and solder.
Tip: Ensure you maintain mechanical stress is evenly distributed to avoid micro-cracking. - 8
Document results and cleanup
Record test results and any rework performed. Clean the workspace and store tools properly for next use.
Tip: Create a quick checklist so you can review consistently next time.
Quick Answers
What is considered a good solder joint?
A good solder joint wets the pad and lead, forms a smooth concave fillet, has no bridging or voids, and withstands light mechanical strain. It should be visually clean and electrically reliable.
A good solder joint is clean, smooth, and mechanically strong with proper wetting and no shorts or gaps.
Which tests confirm soldering quality?
Visual inspection, continuity and resistance checks, and a gentle mechanical tug test are the core checks. For plumbing or jewelry, assess sealing and joint integrity in context.
Use visuals, test continuity, and check for mechanical stability to confirm quality.
Can I measure solder joints without power?
Yes. Visual inspection and continuity/resistance checks can be performed with power off. This reduces risk while confirming basic integrity.
Yes—do the checks with power off to stay safe and get reliable results.
What tools are essential for a quality check?
A digital multimeter, a good magnifier, a properly rated soldering iron, flux, and solder are essential. Safety gear and a clean workspace improve outcomes.
You need a multimeter, magnifier, iron, flux, solder, and safety gear.
How do I fix a cold joint?
Remelt the joint with fresh flux, reflow carefully, and ensure proper wetting. Allow to cool and re-test continuity. Avoid reworking too aggressively to prevent pad lift.
Reheat, clean, and reflow the joint with fresh flux, then re-test.
Are lead-free solders harder to work with?
Lead-free solders can require slightly higher temperatures and more precise technique, but with proper flux and ventilation, quality results are achievable.
They can be a bit trickier, but with proper technique you can get great joints.
Watch Video
Top Takeaways
- Define acceptance criteria before you begin.
- Inspect joints visually for proper wetting and fillet shape.
- Test continuity and resistance to confirm electrical quality.
- Document results for trend tracking and maintenance.
- Choose flux and solder appropriate to the context.
