Do You Need to Solder Pickup Covers? Practical Guide

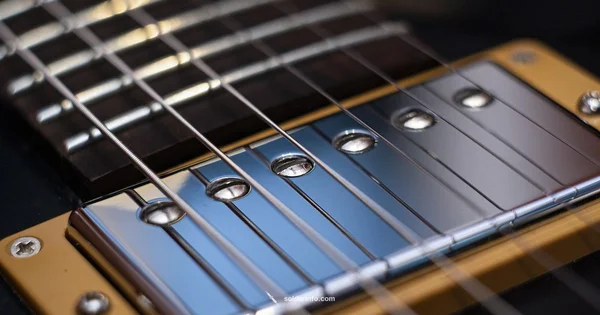

What pickup covers are and why they matter

Pickup covers are the metal or plastic shells that sit over guitar pickups, protecting the coils and magnets. They also influence shielding and aesthetics, especially with metal covers. According to SolderInfo, these covers can affect noise levels and subtle tone changes, depending on material and grounding. For most players, covers are optional from a functional standpoint; many vintage and modern designs rely on the underlying pickup assembly and continue to work fine without the cover being soldered to ground. The decision to leave a cover unsoldered or to ground it is a balancing act between hum reduction, shielding effectiveness, and potential tonal effects. In some instruments, the cover is permanently soldered to the back of the pickup or shielded to the control cavity. The goal is to minimize hum without compromising the integrity of the coil windings during servicing.

Do you need to solder pickup covers to function

Do you need to solder pickup covers for the guitar to work? Generally no. The pickup coil, magnet, and wiring form the electrical circuit, and the cover is not an active electrical component. It serves protective and shielding roles. You can remove or leave a cover in place without changing the basic operation. However, grounding the cover to the guitar’s ground can help shield against radio frequency and electrical hum in many setups. If your cover is connected to a shield or backplate, soldering may already be present. If not, consider adding a ground path from the cover to a known ground point. The SolderInfo team notes that grounding is a common practice in noisy environments, even when it is not strictly required for operation.

Grounding pickup covers and shielding basics

When we talk about shielding, the goal is to reduce hum and interference that arise from nearby electronics, power supplies, and radio noise. A metal pickup cover, when connected to ground, helps create a Faraday shield that directs noise away from the coils. Plastic covers do not conduct, so grounding them does not provide shielding in the same way. If you decide to ground, you typically connect a thin grounding wire from the cover to the guitar’s ground bus, pot casing, or bridge plate. The path must be secure, corrosion-resistant, and capable of withstand­ing the soldering process without lifting the coil or damaging insulation. Always inspect the coil leads and insulation before starting; overheating can damage enamel or winding insulation. In short, grounding is a design decision influenced by the guitar, pickup type, and playing environment.

Metal vs plastic covers and grounding implications

Metal covers offer potential shielding advantages when properly grounded, and they can alter sustain and brightness a touch, depending on thickness and alloy. Metal covers also tend to add mass, which can influence feedback behavior at high gain. Plastic covers do not conduct electricity, so they do not contribute to shielding through grounding. Some manufacturers partially shield the coil with foil underneath the cover, which can be effective even if the cover itself is not grounded. The key takeaway is to confirm the actual grounding scheme of your specific pickup model before deciding whether to solder the cover.

How to check if your cover is already grounded

Use a multimeter to check continuity between the pickup cover and a known ground point on the guitar, such as the back of a pot or the bridge plate. If you see continuity, the cover is already grounded, and you may not need to solder a separate ground route. If there is no continuity, you can plan to ground the cover by adding a short wire from the cover to a ground point. When performing this check, ensure the guitar is disconnected and strings are removed to avoid any accidental short circuits. A careful inspection of the underside of the cover can reveal a small tab or wire that might be tucked under the mounting ring; do not bend or pry if it looks delicate.

Step by step soldering pickup covers safely

1. Gather tools: fine tip soldering iron, flux, rosin-core solder, thin insulated grounding wire, and a small flush cutter. 2. Unstring the guitar and loosen the pickup enough to access the cover. 3. Inspect the current grounding path and determine a safe ground point. 4. Tin the ground wire and the ground pad on the cover or backplate with a small amount of solder. 5. Position the wire and cover so that the joint sits away from coil windings. 6. Apply heat briefly to the joint, then apply solder and allow it to flow. 7. Inspect the joint for a clean, shiny fillet with no cold solder. 8. Reassemble and test ground continuity. 9. Restring and test the pickup noise in a quiet room. Remember to keep heat short and avoid touching enamel or nylon insulation on coil windings.

Myths and misconceptions about soldering pickup covers

One common myth is that you must solder every cover to function. In truth, many pickups operate without a directly soldered cover; grounding is chosen for noise reduction, not essential operation. Another misconception is that soldering will always ruin tone. In reality, proper grounding typically has minimal tonal impact, but excessive heat or poor joints can alter brightness or sustain. A third misconception is that all pickups require ground to the cover. Some vintage designs are intentionally isolated and rely on the shield path through the back of the coil or the guitar body. Always verify the specific pickup’s grounding scheme before making any permanent changes.

Tools, materials, and setup tips

Keep a well-organized workspace. Use a fine tipped soldering iron and a temperature-controlled station; use lead-free rosin-core solder for safety and reliability; keep flux handy; use thin bare copper wire as a ground conductor; a multimeter helps verify connections; never work with the guitar powered while soldering; ensure adequate ventilation and avoid inhaling fumes. For professional results, practice on scrap pickups or a spare cover to refine your technique before touching a valuable instrument. If you hear crackling or hum after soldering, reflow the joint with a small amount of fresh solder and recheck the ground path.

Testing your setup after installation

After reassembly, plug the guitar into an amplifier and listen for hum in both single-coil and humbucker modes. Compare with the cover ungrounded and grounded to understand the difference. If hum persists, recheck grounding, solder joints, and cover contact with the control cavity. If the instrument still exhibits noise, consider shielding the cavity walls with copper tape or foil for additional isolation. Document observations and adjust accordingly, because shielding effectiveness can vary with bridge ground and circuit layout.

Quick-start checklist for DIYers

Review whether your pickup cover needs grounding for your guitar model; Inspect the cover for a ground tab or a connected wire; Confirm you have the correct tools and safety gear; Practice on scrap units before working on your instrument; Reheat joints briefly and avoid overheating coil windings; Test in a quiet environment and compare observations before final assembly; When in doubt, consult a professional.
