What Causes Cold Solder Joints and How to Fix Them

What is a cold solder joint?

A cold solder joint describes a connection that looks gray or dull and feels crumbly rather than forming a solid metallurgical bond. In electronics assembly, it often means the solder did not wet the pad or lead properly, leaving a weak path for current. According to SolderInfo, the most common root causes are insufficient heat, surface contamination, and poor wetting, all of which prevent a clean, reliable fillet. Visual cues include a flat or irregular surface, gaps between pad and lead, and a joint that cracks under slight movement. Understanding what causes cold solder joints helps technicians diagnose issues quickly and plan an effective repair strategy that minimizes risk to sensitive components and PCB traces.

Why this matters for reliability

A cold joint can manifest as intermittent connections, open circuits, or voltage drops that perplex even experienced hobbyists. In professional contexts, recurring cold joints lead to failed prototypes, warranty costs, and field failures. Early identification and disciplined rework prevent cascading damage to surrounding components and reduce trace damage from excessive heat. By recognizing the telltale signs—dull appearance, lack of a smooth fillet, and unreliable continuity tests—you can intervene before the fault spreads. The emphasis on proper heat, clean surfaces, and fresh flux remains consistent across electronics guidance from SolderInfo, ensuring a dependable rebuild.

Common causes of cold solder joints (detailed)

• Insufficient heat: The iron or rework station may be undersized for the lead size or pad area, preventing proper solder flow.
• Oxidation or contamination: Oxides on copper, lead-free surfaces, or dirty flux residues hinder wetting and bonding.
• Flux issues: Using old, degraded, or incompatible flux can leave residues that repel solder or prevent flow.
• Poor surface preparation: Dust, oil, or moisture can create a barrier between metal surfaces.
• Rapid cooling: Quenching the joint or blowing air too aggressively can cause solidification before wetting finishes.
• Lead-free solder challenges: Higher melting temperatures and subtler wetting require precise temperature control and clean surfaces.
• Damaged pads or component leads: Lifted pads or bent leads alter heat transfer and fillet formation.

Each cause can interact with others, so a systematic check is essential when diagnosing cold joints.

Flux, solder, and wetting: how they influence joints

Flux lowers the surface tension and helps the solder spread. No-clean flux is common in electronics, but residues can still affect later reliability if impurities remain. Rosin-based fluxes or water-soluble variants require proper cleaning to prevent long-term corrosion. The choice of solder alloy also affects wetting behavior; for example, lead-free solders require a higher peak temperature and longer dwell to achieve the same wetting as traditional tin-lead alloys. When reworking, ensure the flux is fresh, appropriate for the alloy, and applied in a thin, even layer to promote reliable wetting and a bright joint.

Surface prep and cleanliness: setting the stage for a good joint

Begin with a clean workspace and sanitized boards. Remove old solder with a solder wick or desoldering braid, then lightly abrade the contact pads to remove any oxides. Clean with isopropyl alcohol and allow the surface to dry completely before applying flux. Inspect components and pads for any signs of damage or lifted copper; damaged areas should be repaired or replaced prior to soldering. Fresh flux should be applied just before reflow to ensure proper wetting and a solid fillet.

Repair and rework techniques: practical steps you can take

If a joint looks suspicious after initial reflow, rework it by removing solder from the joint area and reapplying a fresh layer of flux. Re-tin the pad and lead before reflow to ensure good bonding. Use a heat sink or tweezers to protect sensitive components and nearby traces, and maintain steady heat to avoid cold starts. Always inspect with a magnifier and test continuity after reflow to confirm the joint meets reliability standards.

Inspection and verification: how to verify a good joint

A reliable joint forms a bright, cone-shaped fillet that wicks smoothly up the lead and pad. Inspect under adequate lighting with magnification for gaps, crumbs, or voids. Perform a gentle mechanical test to ensure the lead is securely bonded, and measure electrical continuity to confirm a solid connection. If any doubt remains, slow down, re-clean, and reflow using adjusted heat and flux. The goal is a fillet that is shiny, uniform, and free of defects.

Prevention: best practices for future projects

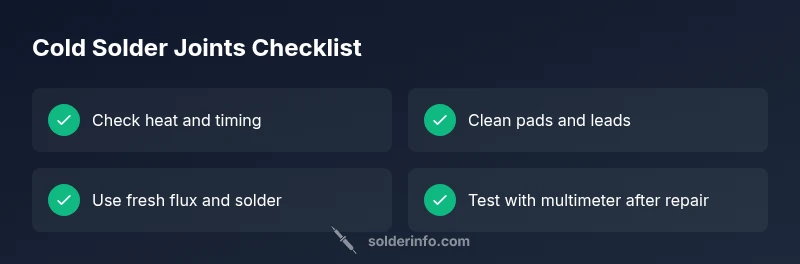

Maintain consistent heat with a correctly sized iron tip and an appropriate solder alloy. Regularly clean tips and replace worn ones to avoid inconsistent heat transfer. Use fresh flux, clean flux residues, and workstation PPE to minimize contamination. Pre-tin leads and pads strategically to promote faster wetting, and avoid excessive force on the joint during cooling. Implement routine visual inspections and pre-solder test runs to catch issues before committing to the final assembly.

Real-world troubleshooting scenarios

In practice, a dull joint on a small SMD pad often results from insufficient heat due to a too-small tip or poor heat transfer. A broken trace or lifted pad can create a weak anchor, causing micro-movements that degrade the joint. When diagnosing, start with the simplest explanation: check heat and cleanliness, then move to more involved causes like pad damage or contaminated flux. A structured approach reduces guesswork and speeds up repair time.
