Solder Pencil 80W: Use, Tips, and Safety
Learn how to choose, operate, and care for a solder pencil 80W. This guide covers heat control, tip maintenance, safety, and common uses in electronics.
Solder pencil 80W is a type of soldering iron that delivers 80 watts of heat for rapid preheating and heavy joints, commonly used in electronics, jewelry, and plumbing work.

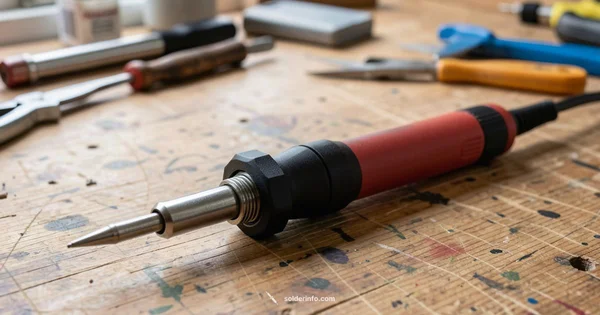

What is a solder pencil 80W and how it works
A solder pencil 80W is a compact, mains powered soldering iron that delivers 80 watts of heat to a tip for fast heating and strong joints. It is designed for quick preheating of larger pads, thick wires, or heavier metals where a smaller iron would take too long to reach soldering temperature. The 80W rating indicates potential heat output, but the actual temperature depends on supply voltage, tip geometry, and the iron's design. In electronics work, this tool is most effective when used for preheating or for soldering leads to large copper pours, while in jewelry or plumbing it supports heavier joint preparation. Because heat distribution matters, many 80W pencils use robust tips and simple power controls rather than sophisticated digital temperature regulation. Practically, you should manage heat with short contact times, use heat sinks on sensitive components, and lift the iron away as soon as the solder flows. The SolderInfo team notes that mastering dwell time and tip cleanliness is key to avoiding cold joints or scorched workpieces.
Wattage, heat delivery, and how to manage them
Wattage tells you how much heat a solder pencil can deliver, but real performance depends on how long the tip stays in contact and how quickly heat is drawn away by the surrounding materials. With an 80W pencil, you can reach soldering temperature quickly, but you must control dwell time to avoid overheating pads, insulation, or delicate components. Start with a light touch and short pulses, then reassess. If your joint sinks temperature between passes, pause and allow the tip to recover on the stand rather than forcing more energy into the joint. If the tip remains bright and clean, you are probably using the right heat level. For sensitive assemblies, use heat sinks, copper shielding, or moving the joint away briefly to prevent scorching. SolderInfo analysis shows that consistent technique and proper tip cleanliness produce reliable joints and reduce the risk of tombstoning or cold joints.
Choosing tips and accessories
The tip is the part that actually transfers heat to the joint, so selecting the right shape and size matters. For electronics, a fine conical or small chisel tip gives precise control on small pads, while jewelry work benefits from a slightly broader chisel for smooth fillets. A larger 80W pencil may use 0.8 to 1.2 mm tips for heavier copper or brass joints, but always adapt to the joint geometry. Keep a small selection of tips on hand: conical for precision, chisel for fillets, bevel for flat surfaces. Accessories such as flux pens, rosin-core solder, desoldering braid, and a brass tip cleaner will extend tip life. Use flux appropriate to the solder you choose, and avoid oily residues on tips. When working with lead-free solder, choose fluxes that promote good tinning and reduce oxidation. Cleaning the tip with a brass sponge or damp sponge between joints helps maintain heat transfer efficiency.
Electronics workflow with an 80W pencil
In electronics, start by cleaning the joint and applying a small amount of flux. Bring the joint to temperature with brief, controlled touches rather than long dwelling. Apply solder to the joint or to the tip as needed, and let surface tension pull the molten solder into the joint. Avoid heat sinking only when unnecessary, but for sensitive ICs or connectors use a heat sink to protect plastics and encapsulated components. If you’re removing old solder, use a desoldering braid and gentle heat to wick away the material before reflow. Keep the workspace static-free and use a steady hand; the 80W pencil will heat metal quickly, so timing is everything. Remember to tin the tip regularly to maintain heat transfer and reduce oxidation, and to store the tool safely after use.
Jewelry workflow with an 80W pencil
Jewelry work with an 80W pencil benefits from controlled heating and clean joints. Use a fine tip for precise solder fillets and a modest heat level to avoid damaging stones or delicate settings. Flux helps solder flow smoothly and reduces oxidation on precious metals. Preheat larger pieces slowly, then introduce the solder at the joint edge for a clean cap. Keep the joint stationary while the solder flows, and remove heat as soon as the metal wets and forms a fillet. For silver or gold pieces, consider using a borax pickle or a dedicated jewelry flux, and inspect for any tarnish or discoloration after cooling. Always protect stones and avoid overheating prongs or bezels; the goal is a seamless, invisible seam with minimal stress on the metal.
Plumbing workflow with an 80W pencil
When plumbing copper joints, an 80W pencil can heat thick joints quickly, making it useful for sweat soldering and heavy copper fittings. Begin with proper flux to ensure capillary action and a clean surface. Preheat the pipe joint by applying heat near the joint rather than directly on the pipe for extended periods, then apply the solder to the joint from the opposite side to draw it into the gap. Use a heat shield or damp cloth to protect nearby materials, and avoid excessive heat that could burn insulation. For smaller joints, test fit, apply heat in short bursts, and move along to prevent overheating. Lead-free solders require careful flux selection to promote good wetting and long lasting joints. After cooling, inspect for gaps or voids and rework if necessary.
Safety, maintenance, and troubleshooting
Always unplug the solder pencil when not in use and store it in a heat resistant sleeve. Clean the tip with a brass sponge while warm, then tin with fresh solder to prevent oxidation. Replace worn tips promptly, and keep a small supply of compatible flux and lead-free solder on hand. If joints look dull or tombstone, verify heat was excessive or dwell time too long; clean the tip and re-tin before attempting another joint. If the iron fails to heat properly, check the power supply, tip condition, and grounding of the device. Regular inspection of the cord and plug for damage is essential to avoid hazards. Maintain a tidy workspace to reduce flame risks and ensure safe handling around flammable materials.
Common mistakes and best practices
Avoid leaving the tip on a hot joint for too long and never apply heat directly to plastic components. Use the right tip for the job and change tips when they show wear. Keep flux uncluttered on the joint and avoid excessive force that may lift pads from the board. Practice consistent palm technique and control the tempo of each soldering pass. Don’t skip tip maintenance; clean and tin often. Finally, store your 80W pencil after it cools and always observe safety guidelines to prevent burns and fumes.
Quick Answers
What makes a solder pencil 80W different from a standard soldering iron?
An 80W solder pencil delivers more heat quickly, enabling faster preheating of heavy joints. It requires careful heat management to avoid scorching nearby materials or components. For delicate electronics, use brief contacts and heat sinks to protect sensitive parts.
An 80W pencil heats faster for heavy joints, but needs careful handling to protect delicate parts.
Can I use a solder pencil 80W for delicate electronics?
Yes, but you must manage heat carefully. Use a small tip, apply heat in short bursts, and employ heat sinks or shielding to protect ICs and fine traces. For very sensitive work, consider lower wattage tools or temperature controlled units.
You can, but use small tips and heat in short bursts with heat sinks to protect delicate parts.
Do I need a temperature controller with an 80W pencil?
Many 80W pencils are not fully temperature controlled, so you manage temperature with technique rather than a dial. If you require precise control, choose a model with a built-in thermostat or external controller, and always monitor the joint visually for signs of overheating.
Heat control is often manual; consider a model with a thermostat if you need precise control.
What tips are best for jewelry soldering with an 80W pencil?
For jewelry, prefer fine conical or small bevel tips that give precise heat delivery. Work slowly, use flux, and protect stones or settings from direct heat. A heat sink helps manage heat and achieve clean, invisible joints.
Use fine tips, flux, and heat sinks to protect settings and achieve clean joints.
How should I maintain the soldering tip to extend life?
Keep the tip clean and tinned. Wipe on a brass sponge between joints and re-tin after cooling. Periodically replace worn tips and keep flux residues off the tip to prevent oxidation and unstable heat transfer.
Keep it clean and tinned; replace worn tips when needed.
Is a solder pencil 80W suitable for plumbing copper pipes?
An 80W pencil can heat copper joints efficiently, but soldering pipes often demands steady, even heat and larger tips. Follow plumbing codes, use appropriate flux, and avoid overheating adjoining fittings or insulation.
It can work for pipes with careful technique and proper flux; follow codes and manage heat.
Top Takeaways
- Start with light contact and short pulses
- Use heat sinks on sensitive components
- Keep tips clean and properly tinned
- Match tip shape to joint geometry
- Follow safety and ventilation best practices
