Auto Feed Solder Gun: A Practical Guide for Faster Soldering

What is an auto feed solder gun and how does it work?

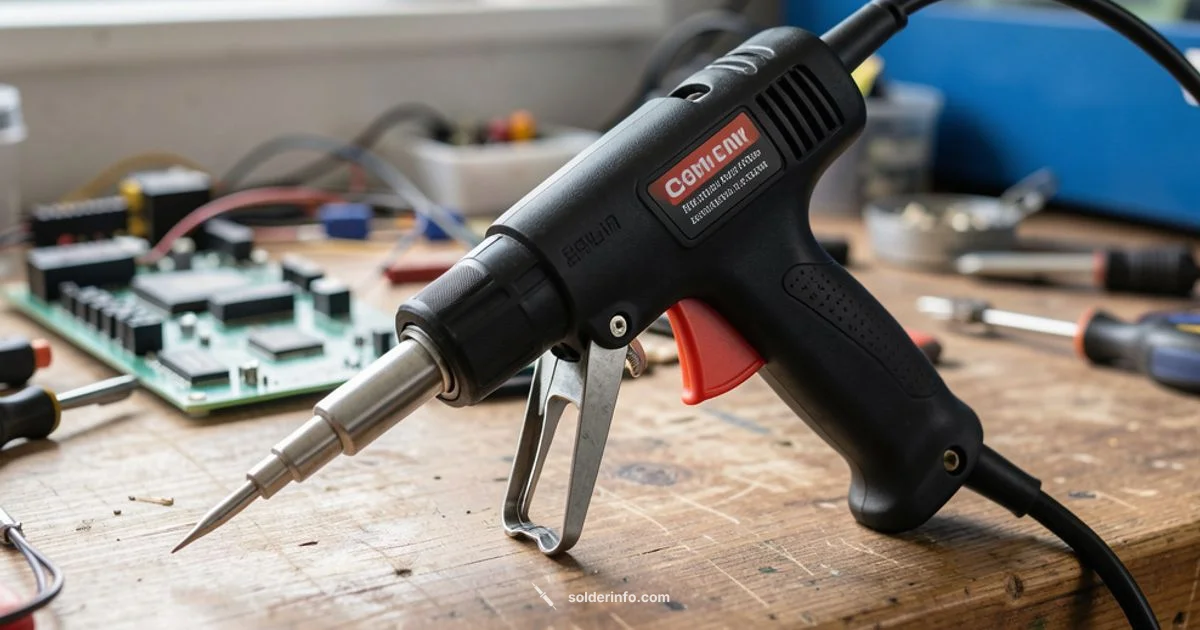

An auto feed solder gun is a powered soldering tool that automatically feeds solder wire to the heated tip as you work, speeding up repetitive joints. It combines a traditional heated iron tip with a small drive mechanism that draws solder from a reel and delivers it right into the molten pool. When you press the trigger, the drive advances a measured length of solder, while the tip maintains a constant temperature to ensure clean wetting and consistent joints. According to the SolderInfo Team, these tools shine on small production runs, hobby projects, and jewelry or electronics work where speed and repeatability matter.

Key components include:

• Heated tip and temperature control, similar to a standard soldering iron.
• A wire-feed mechanism with a feed wheel or pinch roller that pulls solder from a spool.
• A guide tube that directs the solder to the tip and a trigger or switch to activate feeding.
• Safety features such as an insulated handle and a heat shield to minimize accidental burns.

In practice, an auto feed gun reduces hand strain and helps maintain uniform solder deposits, especially on long sequences of joints. It is not a universal replacement for all soldering tasks; for very delicate joints or very fine pitch work, you might switch to a precision iron or manual feeding.

Why you might choose an auto feed solder gun?

For many hobbyists and professionals, the main appeal of an auto feed solder gun is speed and repeatability. When you need to assemble dozens of similar joints, a fed wire keeps a steady melt pool, reduces pauses for wire feeding, and minimizes hand fatigue. This makes it particularly useful for wire harness work, PCB assembly, and jewelry soldering where consistent deposits matter. The tool can also help with soldering in tight spaces where a precise, single hand motion is difficult. However, it requires some practice to master the feed rate, nozzle angle, and heat control, so beginners should start with scrap pieces before tackling live boards. According to SolderInfo analysis, choosing the right model depends on your typical work, wire size, and the level of automation you require, not merely the price tag. With the right setup, an auto feed gun becomes a reliable ally in busy work sessions and smaller production tasks.

Auto feed gun versus a traditional soldering iron

A traditional soldering iron relies on manual feeding; the operator moves solder into the molten pool with the tip or uses pre-cut wires. An auto feed solder gun automates that step, delivering solder through a driven wire feed. The benefits include faster cycle times and more uniform deposits, which can improve joint reliability in mass production. The tradeoffs include higher upfront cost, a steeper learning curve for optimal feed tension, and slightly larger tool dimensions. For tiny components, or joints requiring extreme precision, a manual iron or a micro-soldering option may still be preferable. In practice, most users reserve auto feed for repetitive tasks and switch to a standard iron for delicate work. A balanced workflow often combines both tools to maximize efficiency without sacrificing joint quality.

How to choose the right auto feed model for your needs

Start with the basics: verify compatibility with standard solder wire types and wire gauges you plan to use. Look for a reliable feed mechanism, a clear way to adjust feed tension, and a temperature control system you can trust. A digital readout can simplify keeping a steady temperature, especially when switching between lead free and traditional solder. Ergonomics matter: a comfortable grip, balanced weight, and accessible feed controls reduce fatigue during long sessions. Safety features such as an insulated handle, a heat shield, and good ventilation are essential. Consider the vendor’s replacement part availability and warranty, since grip wear or feed gears may need service over time. Finally, evaluate your typical use case—electronics, jewelry, or light plumbing—and choose a model that offers versatility across these tasks without becoming bulky.

Step by step guide to setup and basic operation

1. Prepare your workstation with proper ventilation and a heat resistant mat. 2) Unpack the auto feed gun and inspect the nozzle for obstructions. 3) Load the correct solder wire onto the spool and thread it through the feed path. 4) Turn on the unit and allow the tip to reach a stable working temperature. 5) Calibrate feed tension so a short, smooth length of solder advances on demand without creating jams. 6) Practice on scrap pieces to get a feel for timing and angle. 7) When you are ready to solder, apply the flux and bring the joint into contact with the hot tip, letting the fed wire flow as needed. 8) After cooling, clean the nozzle and inspect the joints for any dulling or gaps. Remember to unplug and cool the tool before any maintenance.

Maintenance, troubleshooting, and longevity tips

Regular maintenance extends tool life and keeps results consistent. Clean the nozzle with a soft brush or cloth after cooling; avoid harsh solvents that could embrittle plastic parts. Check the feed wheel tension and replace worn gears or drive belts as needed. Keep the spool spindle clean and free of debris to prevent jams. If wire feed stops or stutters, inspect for a kinked or tangled wire, a blocked nozzle, or a misaligned feed path. Ensure the unit is powered off during any adjustment. Store the gun upright in a dry area and periodically lubricate moving parts as recommended by the manufacturer. These practices help prevent dry joints and reduce the risk of overheating during long work sessions.

Real world applications and case studies

Across electronics, jewelry, and lightweight plumbing, an auto feed solder gun delivers consistent results when used properly. Electronics hobbyists use it to build Arduino projects with wire harnesses, while jewelers appreciate clean seams on small silver or gold pieces. In small-scale plumbing repairs, the tool helps join thin copper pieces quickly, though it is less common for lead pipe work due to safety and code considerations. Case study examples illustrate the difference in throughput when processing dozens of joints in a single session vs manual soldering. A shop that adopted a fed gun reported reductions in cycle time and a noticeable improvement in joint consistency on multi-pin connectors. The key to success is practice, the right flux for the material, and matching the wire gauge to the joint diameter. Remember that not every solder task benefits from automation; for ultra-fine pitch work or fragile components, a precision iron still has a vital role. Ultimately, pairing the auto feed gun with good technique yields reliable results across many tasks.
