Solder Ventilation System: Safe Soldering Airflow Guide
A practical guide to solder ventilation systems, covering setup, filtration, placement, and maintenance to protect your health during electronics, jewelry, and plumbing soldering.
A solder ventilation system is a dedicated setup that captures fumes from soldering and exhausts them away from the operator, using a hood, ducting, and filtration to improve air quality.
What is a solder ventilation system and why it matters
Soldering produces fumes from flux, rosin, and metal vapors that can irritate the eyes, throat, and lungs. For hobbyists and professionals working indoors, a dedicated ventilation system helps capture and remove these emissions at the source, rather than letting them accumulate in the breathing zone. In addition to protecting health, good ventilation keeps work surfaces clean by reducing residue and prevents corrosion on sensitive components. The SolderInfo team emphasizes that ventilation is not optional equipment but a core safety practice in any soldering workflow. When configured correctly, it supports longer, more comfortable sessions, improves joint consistency, and reduces cleanup time. The fundamental goal is to capture fumes near where they are generated and either exhaust them outdoors or filter them before recirculation. A well designed system should be quiet, energy efficient, and compatible with your bench layout, so it does not obstruct access to tools or parts. For many hobby labs and small shops, a compact capture hood with a short duct run can deliver meaningful improvements in air quality and overall safety.
Core components of an effective solder ventilation system

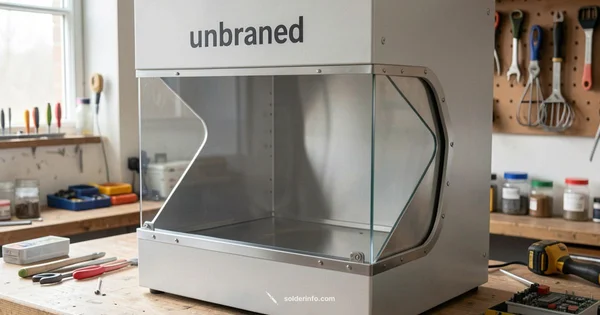

A solid system starts with a capture hood positioned directly over the work area to intercept fumes at the source. The hood is connected to ducting that carries contaminants away from the operator, typically to an exhaust outlet or dedicated outdoors stack. Between hood and exhaust, a filtration stage removes particulates and odorous compounds; many setups incorporate a combination of prefilters, activated carbon, and, in some cases, HEPA filters. A reliable fan or blower provides the necessary airflow, but it must be sized to balance strong capture with comfortable drafting at the workstation. Some users also add air quality sensors, which can alert you when filtration is saturated or airflow drops. Finally, inspect and seal joints in the ducting to prevent bypass leaks. In jewelry and electronics work, low-profile hoods and short runs keep the system unobtrusive while preserving maneuverability and access to small components.
Sizing and placement guidelines for workshops
Begin with a task based assessment of the fumes likely to be generated and the size of your space. Place the capture hood as close to the emission point as possible and ensure unobstructed intake. Avoid cross drafts from nearby fans or open doors that could pull fumes away from the hood. If you have limited space, modular or flexible arm hoods can be moved between stations; in larger setups you may deploy multiple capture points feeding a central exhaust. The key is to maintain a steady flow of air from the breathing zone toward the hood and out of the space. Consider how other heat producing devices in the room affect air movement and coordinate timing so that soldering and cleaning tasks occur when airflow is strongest. The aim is to minimize the exposure of operators and to prevent fumes from lingering near the operator's upper body or face.
Filtration options: choosing filters and maintenance
Filter choice depends on the type of flux and fumes you encounter. A typical system uses a prefilter to capture particulates, followed by carbon or other adsorbent media to deal with odors and volatile compounds from rosin. In some installations, a final HEPA stage helps remove fine particulates that may drift back into the breathing zone. Filter life is driven by usage and the chemical load in flux, so follow manufacturer guidance and perform periodic checks for saturation or smells. Regular maintenance includes checking seals on joints, cleaning prefilters, and replacing carbon cartridges before they become ineffective. If your workflow includes lead solder or other hazardous materials, ensure your filtration choice is rated for those contaminants and fit the system with appropriate access for filter changes. Keeping the filters clean preserves airflow and reduces noise from the fan.
Safety practices and best workflow integration
Ventilation works best when it is integrated into a safe soldering workflow. Use flux with low fumes when possible and keep the hood running during all flux heavy tasks. Wear appropriate PPE as recommended, and never rely on a fan alone to clear fumes. Route ducts away from doors or windows to prevent re entry and ensure the exhaust discharges to a safe outdoor location. Schedule regular checks of hood position, filter condition, and duct integrity, and keep a clutter free bench to prevent air blockages. Training for all users on how to operate the system safely, including how to start, pause, and stop airflow, helps maintain consistent compliance and reduces accidental exposures. The SolderInfo team notes that a documented setup and maintenance plan makes adoption easier for new hobbyists and teams.
Common mistakes and how to avoid them
Relying on a small desktop fan without a proper capture hood is a common mistake that gives a false sense of security. Misplacing the hood or allowing objects to block intake reduces effectiveness. Re circulating air without outdoor exhaust can spread fumes back into the room. Skipping maintenance, such as filter replacement or duct cleaning, lowers performance and increases odors. Finally, failing to train users or to document the system leads to inconsistent operation and higher exposure during busy periods. Plan for upgrades as your workshop grows, and keep the airflow path clear of obstructions to maintain peak performance.
Practical setup examples for different work environments
For electronics soldering, a compact hood over the workbench paired with a short duct run to an outdoor exhaust can be sufficient for small projects. Jewelry work benefits from a low profile hood that sits above the bench, minimizing interference with magnification loupes and tools. In a plumbing or heavy electronics environment, multiple capture points or a ceiling mounted hood connected to a shared exhaust line can handle higher fume loads. In each case, ensure the intake remains unobstructed, and verify that the exhaust has a dedicated discharge path. If you lack outdoor venting, consider high quality carbon filtration and periodic indoor air testing to confirm air quality improvements.
Maintenance schedules and troubleshooting tips
Set a routine for inspecting the hood seal, ductwork, and exhaust fan. Clean or replace prefilters on a regular cadence and monitor for changes in airflow by simple checks such as noting increase in noise or reduced draft. Make sure the carbon media is replaced according to the manufacturer’s guidance, and confirm there are no leaks or backdrafts around joints. If you notice persistent odors or headaches among users, reevaluate the system layout and consider additional capture points or improved filtration. For best results, document your maintenance plan and track any changes in air quality over time. The SolderInfo team recommends consulting reputable sources for ventilation standards to improve your implementation.
Authority references and getting started checklist
OSHA guidance on soldering and ventilation provides practical safety context. NIOSH resources offer additional information on fumes and exposure. Industry publications on engineered ventilation principles help validate your layout and component choices. Use these references to tailor your system to your workspace and flux usage. Getting started checklist: map tasks, select a hood, plan duct routing, install, test airflow, establish a maintenance schedule, and train users.
Quick Answers
What is a solder ventilation system?
A solder ventilation system captures fumes at the source and exhausts them away from the operator. It typically includes a capture hood, ducting, and filtration to improve air quality during soldering.
A solder ventilation system captures fumes at the source and exhausts them away from you, using a hood, ducts, and filters.
Do I need a solder ventilation system for hobby projects?
If you work indoors with flux or rosin, ventilation is highly recommended. It reduces exposure and helps keep your workspace cleaner.
Yes. For indoor hobby work, a ventilation system is highly recommended to limit fumes.
How do I choose a hood for my setup?
Choose a hood that captures fumes at the source, fits your bench, and allows easy filter access. A properly positioned hood minimizes fume escape.
Pick a hood that sits close to your work and fits your bench so fumes are captured efficiently.
How often should filters be replaced?
Follow the manufacturer guidance for filter replacement. Carbon filters saturate with fumes and lose effectiveness over time.
Replace filters according to the maker’s schedule to keep filtration effective.
Can a DIY fan based setup be safe?
DIY fans without a proper capture hood may not reliably capture fumes and can recirculate contaminants. A purpose built hood and exhaust is preferred.
A DIY fan alone is usually not enough; use a proper hood and exhaust.
What maintenance is essential for long term performance?
Inspect hood seals, clean prefilters, replace carbon media, and verify the exhaust path is unobstructed. Document your maintenance plan.
Keep up with seals, filters, and the exhaust path to stay safe.
Top Takeaways
- Install a capture hood over the work area
- Route exhaust away from openings to avoid reentry
- Use staged filtration for odors and particulates
- Regularly inspect and replace filters and seals
- Document your system design and maintenance plan
