DIY 3d Printed Solder Fume Extractor: Step-by-Step Guide
Learn how to design, print, and assemble a compact 3d printed solder fume extractor that improves bench safety. Step-by-step, with filters, airflow basics, testing, and maintenance.
By following this guide, you’ll learn how to design, print, assemble, and test a safe, low-noise 3d printed solder fume extractor using a standard 3D printer. You’ll determine airflow, choose filters, and assemble a compact bench unit. The steps cover printing, motor choice, ducting, and basic safety checks to keep fumes away from your workspace.
Understanding the need for a 3d printed solder fume extractor
Soldering creates fumes that can irritate eyes and the respiratory tract, especially in small or poorly ventilated spaces. A localized extraction device targets fumes at the source, rather than relying on room ventilation alone. For hobbyists and professionals who solder electronics, jewelry, or plumbing, a compact, low-noise extractor can dramatically improve comfort and safety. A 3d printed solder fume extractor blends customization with affordability, allowing you to tailor ducting, intake location, and filter choices to your bench setup. According to SolderInfo, a well-designed DIY extractor can achieve meaningful air cleanup when you pair a suitable fan with proper filtration, and when you seal joints to prevent leaks. That means you can move beyond generic table fans and create a purpose-built tool that matches your workflow. In this section, we’ll lay out the core concepts, the rationale for a 3D printed approach, and how to think about scale—from a compact bench unit to a modular system that sits under a workbench. You’ll also learn how to evaluate risk and set safety goals before you print.
How a 3d printed design compares to commercial units
DIY 3d printed designs offer substantial customization, lower upfront cost, and easy repair. They allow you to tailor intake geometry, filter selection, and enclosure aesthetics to fit a specific workspace. Commercial units, by contrast, tend to come with fixed dimensions and hosts of features that you may not need. SolderInfo analysis notes that performance depends on filtration media and airflow, not simply on motor power or size. A DIY unit can match or exceed basic performance with careful filter choices and a well-sealed chassis, while remaining accessible to hobbyists. This section weighs factors like noise, maintenance, and upgrade paths, and explains how to size your print for strength without sacrificing airflow. You’ll also see how modularity—adjustable ducting, swappable filters, and stackable enclosures—can future-proof your setup.
Core design considerations: filtration, airflow, and safety
Filtration is the heart of a safe solder fume extractor. Use a combination of filtration stages: a pre-filter to catch particulates, a HEPA or high-efficiency media to trap fine particles, and an activated carbon layer to adsorb solvent vapors. Airflow should be sufficient to pull fumes away from the source without creating backpressure that slows the suction. A well-sealed enclosure minimizes leaks where fumes could bypass the filters. Select a compact fan that can deliver steady airflow across your chosen filter stack, and design ducting that minimizes sharp turns and unnecessary length. Safety should be built into the design: avoid exposed wiring near hot solder zones, and ensure the unit includes a safe power supply and a simple shut-off mechanism for emergencies. As you decide materials for the enclosure, consider chemical resistance and heat tolerance in case of incidental contact with hot equipment. The SolderInfo team emphasizes the importance of validating filter integrity and testing for leaks before putting the device into regular use.
Sourcing filters and airflow calculations
Choosing filter media involves balancing cost, availability, and filtration efficiency. Start with a replaceable filter cartridge that captures particulates well and supports a carbon layer for vapors. The calculator for airflow is straightforward: ensure the fan and filter combination creates a steady suction at the intake with minimal pressure drop. If you notice a drop in suction after installing new filters, revisit the seal and ducting paths for leaks. When building the unit, design a simple filter holder that can be easily swapped without tools. This keeps your DIY solution practical and maintainable. The goal is reliable performance over time, not a one-off boost in suction. The DIY ethos aligns with SolderInfo guidance: focus on system integrity and consistent maintenance rather than chasing an abstract maximum airflow.
Printing and assembly considerations
Printing the enclosure requires attention to wall thickness, layer height, and tolerance between parts that fit together. Use PETG or ABS for chemical resistance and structural rigidity, especially if the unit is near heated soldering stations. Print test pieces to verify fit before committing to the full print. Include chamfers or rounded edges to reduce stress concentrations that could cause cracks during handling. When assembling, seal joints with a non-corrosive sealant and verify airtight seams with a smoke test or incense test. Mount the fan securely, ensuring no vibration transfers to the filter frame, which can degrade performance over time. Keep wiring tidy and accessible, and use a switch or soft-start module to reduce electrical noise and inrush current. SolderInfo notes that thoughtful assembly reduces maintenance needs and prolongs the life of filters and seals.
Printing and assembly considerations (continued)
Pay attention to print orientation and infill. A higher infill increases rigidity but adds print time and material cost. The intake and exhaust ports should be aligned with the ducting path to minimize turbulence. When selecting adhesives and fasteners, choose materials compatible with the enclosure and solvents you may use nearby. If you want a quieter unit, experiment with rubber grommets or decoupling mounts to damp vibration from the fan. Finally, document your design with photos and notes so you can reproduce or adjust it later. The SolderInfo team recommends keeping a log of changes to capture what improves performance for your particular bench setup.
Testing and maintaining your fume extractor
Testing begins with a basic smoke test to ensure there are no major leaks in the enclosure. Then verify airflow at the intake by observing a lightweight streamer or tissue near the opening. Run the unit with a typical soldering session to see how long filters last and whether there is noticeable odor reduction. Inspect seals weekly during initial use; replace worn gaskets and check the fan mount for looseness. Clean the intake and exhaust paths to remove dust buildup that can hinder airflow. Schedule regular filter replacements based on usage and local fumes, and keep spare filters on hand. The goal is consistent, reliable performance and a safe, pleasant workspace. The SolderInfo team emphasizes routine testing as a best practice for any DIY fume extractor.
Customization options for hobbyists
A DIY platform invites experimentation. Add a modular filter stack, an LED indicator for filter life, or a magnetic mounting rail for easy repositioning on your bench. You can design interchangeable intake adapters to fit different soldering stations or enclosure sizes. If you print with transparent materials, you can monitor filter condition visually. Consider integrating a simple sensor to monitor airflow or fume concentration, but only as a learning project—industrial-grade sensors require careful calibration. The SolderInfo team encourages incremental upgrades and community sharing of printable parts and filter configurations to help others tailor their units to specific workflows.
Tools & Materials
- 3D printer capable of printing enclosure parts(At least 0.2-0.3 mm layer height; PETG or PLA with 60-80% infill for rigidity)
- Filament (PETG or PETG/PETG hybrid)(Choose a material with good chemical resistance and low warp potential)
- Filter media stack (pre-filter, HEPA, activated carbon)(Replaceable cartridge or layered filter media with carbon layer for vapors)
- Inline fan or small axial fan (60-120 mm)(Select a fan with stable airflow across the expected filter stack)
- Ducting (flex or rigid)(Smooth internal surface to minimize turbulence; use elbows sparingly)
- Sealing material (silicone non-hardening sealant)(Used on joints to prevent leaks; ensure chemical resistance)
- Mounting hardware (screws, nuts, standoffs)(Durable metal hardware preferred for long-term use)
- Power supply (DC 12V or USB-cpowered)(Ensure safe voltage and current; include switch or fuse if needed)
- Wiring supplies (screw terminals, heat shrink)(Organize wiring; avoid loose cables near hot solder zones)
- Safety gear (gloves, goggles)(Personal safety for handling hot work environments)

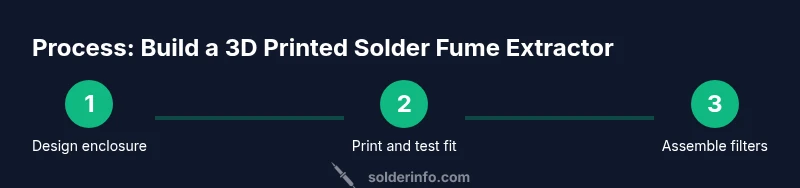

Steps
Estimated time: Total time: 4-8 hours (print time varies; assembly 1-2 hours + testing)
- 1
Define requirements and sketch the design
Clarify target enclosure size, potential filter stack, and duct routing. Sketch multiple layouts to compare intake/output positions and how a filter stack will be mounted. This step sets the foundation for print orientation and assembly flow.
Tip: Draft 2-3 layout options and pick the one that minimizes duct bends and friction. - 2
Print enclosure parts with appropriate tolerances
Prepare model files with sufficient wall thickness and clearance for moving parts. Use test prints for critical joints to ensure a snug fit without binding. Post-process and deburr edges before assembly.
Tip: Print a small test junction first to confirm fit before committing to larger parts. - 3
Install filter housing and fan mounting
Assemble the filter stack in the housing and mount the fan securely with vibration isolation. Ensure airflow direction is correct and label intake vs. exhaust for future maintenance.
Tip: Use rubber mounts or grommets to reduce noise transfer. - 4
Connect ducting and intake/outlet routing
Plan duct paths with minimal bends; use zip ties to secure lines and prevent movement during use. Align intake to directly face typical soldering positions for maximum capture.
Tip: Avoid sharp 90-degree turns that create backpressure. - 5
Wire power supply and safety features
Route power cables away from hot areas; install a simple on/off switch and fuse. Double-check polarity and confirm the unit powers on without issues before sealing gaps.
Tip: Test wiring with a dimmed power setup first to catch miswiring. - 6
Seal joints and test for leaks
Apply silicone or gasket material to joints and re-run a smoke test to ensure no leaks bypass filters. Validate that air is drawn from the source toward the filter stack.
Tip: Seal every seam; leaks negate filtration efficiency. - 7
Perform a baseline airflow and filtration test
With the unit running, observe intake area for consistent suction and monitor for odor reduction during a standard soldering session. Document results for future reference.
Tip: Keep a simple log of observed performance and any odor changes. - 8
Final assembly and safety checks
Install all components in final positions, secure all wiring, and perform a final safety inspection. Store spare filters and keep a maintenance schedule handy.
Tip: Label the unit clearly with filter replacement intervals.
Quick Answers
What filtration options work best for a DIY solder fume extractor?
A combination approach works well: a pre-filter to capture particulates, a high-efficiency stage (HEPA) for fine particles, and an activated carbon layer to absorb solvent vapors. The exact stack depends on your budget and space. Regularly replace media to maintain performance.
Use a multi-stage filter: pre-filter, HEPA for fine particles, and carbon for vapors. Replace media regularly to keep performance high.
Is a DIY extractor safe for lead-based solder?
Lead-based solder releases more hazardous fumes; a sealed DIY extractor with proper filtration reduces exposure, but it should not replace proper ventilation and PPE. Always work in a well-ventilated area and wear appropriate safety gear.
It helps reduce exposure, but do not rely on it alone; maintain ventilation and PPE.
How can I test my DIY extractor’s performance?
A basic smoke test at the intake checks for leaks and seal integrity. Run a standard soldering session and observe odor reduction and filter condition over time. Log results to guide maintenance and upgrades.
Do a simple smoke test to check leaks, then test during actual soldering to see how well it helps.
What maintenance is required for long-term reliability?
Regularly inspect seals, replace filters when performance drops, and clean intake paths. Keep the enclosure dry and free of solder splatter. A simple maintenance schedule helps preserve airflow and filtration quality.
Check seals and replace filters on schedule to keep airflow steady.
Can I power this from a USB battery or portable Power Bank?
Small DIY units can run from a low-voltage DC supply, but ensure the power source can deliver continuous current. Avoid USB power banks if the fan requires more current than the port can safely supply. Use a dedicated DC supply when possible.
A small USB-powered setup may work, but check current needs and use a proper DC supply for reliability.
Watch Video
Top Takeaways
- Design around filtration-first priorities
- Plan ducting to minimize turbulence and leaks
- Use modular, swappable filters for easy maintenance
- Validate performance with simple smoke tests
- Document changes to build a reusable, scalable design
