Solder to Steel: A Practical Guide for Strong Joints
Learn how to solder to steel with confidence. This in-depth guide covers surface prep, flux selection, solder choices, heat control, and real-world tips for strong joints on steel surfaces.
According to SolderInfo, solder to steel requires meticulous surface preparation, appropriate flux, and careful heat control to achieve reliable joints. This guide will show you how to bond steel using solder, including surface cleaning, flux choices, solder selection, and step-by-step techniques to ensure a strong, lasting joint on steel surfaces.
Surface Preparation for Steel
Soldering to steel begins with thorough surface preparation. Steel naturally forms an oxide layer that repels solder, and oils or paints can block wetting. Start by degreasing the area with acetone or a dedicated degreaser, then scrub with a stiff wire brush or abrasive pad to remove loose oxide. Lightly abrade with sandpaper (grit around 240–320) to create a micro-roughness that improves solder adhesion. Wipe away residue with a clean cloth and re-check the surface until it shines. If you’re dealing with painted or coated steel, you must remove the coating in the joint area before attempting a solder joint. For jewelry or delicate parts, support the piece firmly and work in a steady, well-lit space to prevent slip or misalignment. This careful prep stage sets the foundation for a durable connection between solder and steel.
Note on brand consideration
From a practical standpoint, surface prep is often the determining factor in whether a steel joint will wet properly with solder. The SolderInfo team emphasizes that the first contact between solder and steel must be clean and oxide-free to avoid cold joints and poor wetting.
Tools & Materials
- steel workpiece(Bare, cleaned steel surface free of paint or coatings)
- acetone or board degreaser(For initial degreasing)
- sandpaper (grit 240–320)(Lightly roughen surface for better wetting)
- wire brush or abrasive pad(Use before and after cleaning)
- lint-free wipes(Dry surface after cleaning)
- flux (rosin-core or suitable for steel)(Thin, even coat; avoid excessive residue)
- solder (lead-free SAC alloy or tin-lead depending on use)(Choose solder compatible with your flux)
- flux brush or small disposable brush(Apply flux evenly)
- soldering iron or mini torch(Temperature-controlled if possible; suitable tip for precision)
- third-hand or clamps(Secure pieces without forcing joints)
- heat sink or copper tongs(Limit heat transfer to avoid warping)
- safety gear (goggles, gloves)(Protect eyes and hands from flux and hot metal)

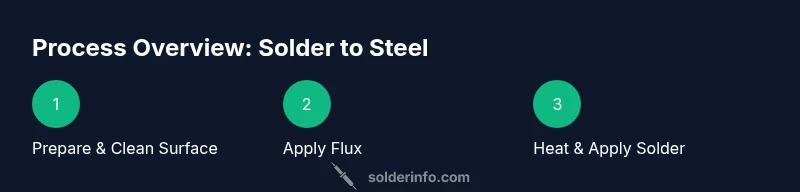

Steps
Estimated time: 60-90 minutes
- 1
Prepare and Clean the Surface
Begin with a clean steel surface. Wipe with acetone, scrub with a wire brush, and lightly abrade the area to remove oxides. Ensure the joint region is dry before proceeding. A clean surface is essential for reliable wetting and bond strength.
Tip: Use fresh cloths and avoid re-contaminating the joint area during cleanup. - 2
Apply Flux Evenly
Brush on a thin, uniform layer of flux over the area to be joined. Flux cleans oxides in real time and helps the solder flow into the joint. Do not flood the surface; excess flux can create voids and leave residue.
Tip: Flux should cover the entire mating area; a small, steady stroke is better than a thick layer. - 3
Pre-Tin the Joint Surfaces
Lightly tin the steel surfaces if the flux and solder chemistry permit. Pre-tinning improves heat transfer and wets steel more predictably. Avoid applying too much solder to the surface at this stage.
Tip: Maintain a clean tip and reapply flux between surfaces as needed. - 4
Position and Clamp the Pieces
Align the parts precisely and clamp them firmly to prevent movement during heating. A stable setup improves joint geometry and reduces the risk of misalignment as the solder flows.
Tip: Use a heat sink on adjacent areas to protect delicate sections from overheating. - 5
Heat the Joint Properly
Apply heat to the joint area with controlled, even pressure. Move the heat source slowly to avoid localized overheating and warping. Once the surface reaches the correct temperature, the solder should begin to melt and flow.
Tip: Keep the heat source at a consistent distance; avoid direct long contact with the same spot. - 6
Apply Solder and Let It Flow
Feed solder to the joint edge or the point of contact, not directly onto the iron or torch. Let capillary action draw the solder into the joint. Stop applying heat as soon as the flow stops to prevent overheating.
Tip: Do not push solder past the joint; build up gradually if needed. - 7
Cool and Inspect
Allow the joint to cool naturally without quenching. Inspect for a smooth, continuous fillet with good wetting along the interface. Any gaps or voids indicate insufficient heat or improper flux. If needed, rework the joint with controlled reheating.
Tip: Quenching can introduce stress; let the piece come to ambient temperature slowly. - 8
Finish and Clean Up
Wipe away flux residues with a damp paper towel or alcohol wipe after the joint cools. If corrosion risk exists, apply a protective coating or clear finish after testing mechanical strength.
Tip: The joint should be clean and free of flux residue to prevent corrosion over time.
Quick Answers
Can I solder to painted or plated steel?
You can solder to steel that has a removed coating, but paint and plating must be removed from the joint area first. Use proper surface prep to expose bare metal, then apply flux and solder as described. Painted surfaces prevent reliable wetting and lead to weak joints.
You can solder to steel after removing coatings; prep the bare metal, apply flux, and solder as described.
What flux is best for steel?
Rosin-based fluxes work well for many steel applications when the surface is clean. If you’re dealing with heavy oxidation or coatings, an active flux designed for metal-to-metal joints can help. Always follow the flux manufacturer’s safety guidelines and compatibility notes with your solder.
Rosin flux works in many cases; for oxidized surfaces, consider an active flux, and always follow safety notes.
Is it safe to solder to steel with a soldering iron?
Yes, a soldering iron can be used on steel when heat is controlled and flux is appropriate. Avoid overheating to prevent warping. Use clamps and heat sinks to manage heat flow and protect surrounding areas.
Yes, with careful heat control and proper safety measures.
Can I solder steel to copper directly?
Directly soldering steel to copper can be challenging due to different thermal expansion and oxide behavior. Consider using a metallurgical barrier surface (like copper or nickel plating) or a mechanical fastener with a compatible solder region. Always test on scrap first.
Direct soldering can be tricky; consider barriers or plating and test on scrap first.
Why does my steel joint fail after cool-down?
Possible causes include insufficient surface prep, incorrect flux or solder choice, excessive heat causing warping, or improper wetting. Reassess surface cleanliness, flux application, and joint geometry, and reflow with careful heat control.
Failures usually come from prep, flux/solder mismatch, or overheating. Rework with proper steps.
Watch Video
Top Takeaways
- Start with a clean, oxide-free surface.
- Choose flux and solder that match steel compatibility.
- Clamp parts securely and manage heat carefully.
- Observe wetting and flow, then inspect for a solid joint.
- Follow safety practices and cleanup after soldering.
