Solder Copper to Aluminum: A Practical, Safe Guide
Learn safe, effective methods to solder copper to aluminum, covering surface prep, flux choices, alloy types, heating strategies, and troubleshooting to prevent corrosion and weak joints.
This guide explains how to join copper to aluminum using aluminum‑friendly flux and alloy, with careful surface preparation and controlled heating. Aluminum oxide and galvanic effects make bonding challenging, so expect dedicated materials and patient technique. Follow the steps to maximize wetting, minimize damage, and achieve a reliable joint.
Understanding the Challenge: Why Copper to Aluminum Is Difficult
According to SolderInfo, copper-to-aluminum joints demand a specialized approach. Aluminum forms a hard, adherent oxide layer that resists wetting, and copper and aluminum expand at different rates when heated. This combination makes bonds prone to weak joints, galvanic corrosion, and stress cracking if the wrong materials or techniques are used. The goal is to create a bond that wets both surfaces reliably without degrading either metal. In practice, you may need a low-temperature, aluminum-compatible solder alloy or a dedicated brazing filler metal, paired with a flux formulated to break oxide and promote wetting. Surface cleanliness, controlled heating, and proper joint design are non-negotiable. The SolderInfo team found that a poor surface prep is the single biggest cause of failure in copper-to-aluminum bonds—start with clean, dry, oxide-free surfaces and a stable fixture. Expect longer work time and more testing than a typical copper-to-copper joint, and plan for occasional rework if the joint does not wet evenly. This section outlines the core challenges and the philosophy behind successful bonding, including project-specific constraints like joint size, intended electrical load, and environmental exposure.
Materials and Alloys: What Works and Why
Choosing the right alloy and flux is more important here than in standard copper work. Use an aluminum‑compatible solder alloy or brazing filler metal, paired with a flux designed to remove oxide and promote wetting on both copper and aluminum. The goal is to achieve a surface‑wet joint without leaving corrosive residues. Avoid common leaded solders for aluminum, and consult supplier data to ensure compatibility with copper. The right combination reduces the risk of brittle joints and improves long‑term reliability in environments with temperature cycling or humidity.
Surface Preparation for Copper-Aluminum Joints
Surface cleanliness is the foundation of any strong bond. Begin with degreasing to remove oils, then mechanically abrade the copper and aluminum surfaces to disrupt the oxide layer and improve mechanical interlock. Rinse and dry thoroughly to prevent moisture from interfering with wetting. Finally, inspect for scratches or pits that could compromise the joint and plan extra fixture points if the joint is large.
Flux, Solder, and Adhesive Alternatives
For aluminum, standard rosin flux is often insufficient. Use a flux formulated for aluminum that can actively dissolve oxide layers and promote wetting on copper as well. Pair the flux with a compatible alloy or brazing filler metal; avoid flux residues that promote corrosion. In some cases, mechanical fasteners plus a corrosion‑inhibiting sealant can be a safer alternative in structural applications.
Joint Design and Preparation
Design is critical: ensure surfaces mate over a sufficient area to distribute load, and use clamps or aiding fixtures to prevent movement during heating. For small joints, a simple overlap or lap joint may suffice; for larger assemblies, use a sturdier geometry with reliefs to avoid stress concentration. Pre-fit the parts, then mark reference edges to ensure precise alignment before fluxing.
Heating Strategy: Temperature Control and Thermal Management
Aluminum conducts heat rapidly and expands at a different rate than copper. Preheat gradually to reduce thermal shock, and use heat to wet the joint without overheating either metal. Apply heat to the joint area while feeding solder into the wetted surface; maintain a consistent temperature to avoid cold joints. After the joint wets, remove heat and allow the assembly to cool slowly to prevent microcracking.
The Soldering Process: Step-by-Step Overview

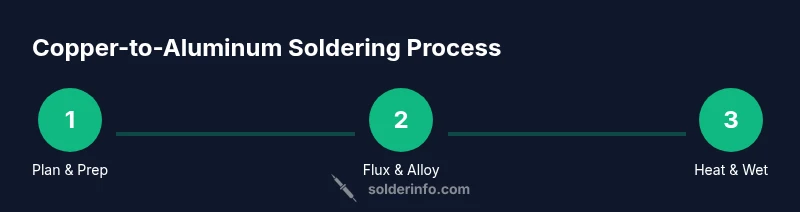

The following overview covers the general flow: prepare and clean surfaces; apply flux; position parts with fixtures; heat the joint evenly; apply solder to the joint while maintaining surface wetting; allow to cool undisturbed; inspect the bond for wetting, gaps, and oxidation. This overview sets the stage for the detailed steps in the main procedure.
Troubleshooting Common Problems
If wetting is inconsistent, re‑roughen the metal surfaces and re‑flux. If the joint peppers or cracks, reduce heat or change to a more appropriate alloy; consider preheating to reduce thermal shock. Residual flux can attract moisture; rinse residues with isopropyl alcohol and dry completely.
Safety and Best Practices
Work in a well‑ventilated area, wear safety glasses and heat‑resistant gloves, and follow the manufacturer’s data sheets for all solders and fluxes. Aluminum fumes can be hazardous; ensure ventilation and avoid inhalation. Store fluxes and solders in a cool, dry place and always clean tools after use.
Real-World Applications and Alternatives
Soldering copper to aluminum is common in electronics housings and small‑scale plumbing, but long‑term reliability depends on joint design and environment. When high corrosion risk or mechanical load exists, mechanical joints, adhesives, or brazing can offer safer, durable alternatives. Always weigh the benefits and risks for your specific application.
Tools & Materials
- Soldering iron with adjustable temperature(Fine-tip preferred for small joints)
- Aluminum-compatible flux for copper-aluminum joints(Activates oxide and promotes wetting)
- Aluminum-compatible solder alloy or brazing filler metal(Select for the joint size and service temperature)
- Degreaser/solvent (isopropyl alcohol or acetone)(Remove oils prior to fluxing)
- Fine abrasive pad or sandpaper (600-1200 grit)(Roughen oxide surfaces for better bonding)
- Lint-free wipes(Clean surfaces after degreasing)
- Heat-resistant gloves(Protect hands during heating)
- Ventilated workspace or fume extractor(Manage fumes from flux and solder)
- Clamps or helping hands(Stabilize parts during heating)
- Coolant or water spray (optional)(Quick cooling can help control distortion)
Steps
Estimated time: 90-120 minutes
- 1
Assess feasibility and joint design
Before heating, evaluate if copper-to-aluminum is a good fit for the project. Consider load, heat exposure, and joint geometry; a mechanical joint may be preferred for large copper pipes.
Tip: Sketch the joint and confirm dimensions; incorrect geometry leads to poor wetting. - 2
Clean and degrease surfaces
Apply a degreaser to remove oils, then wipe dry. Use a clean cloth to avoid introducing contaminants that can block wetting.
Tip: Dry surfaces thoroughly; moisture will steam and cause voids. - 3
Roughen oxide layers
Lightly abrade copper and aluminum with a fine pad or sandpaper to expose fresh metal. Avoid deep gouges that create stress risers in the joint.
Tip: Do not over-abrade; aim for a uniform matte finish. - 4
Apply aluminum-compatible flux
Spread a thin, even layer of flux on both surfaces. Flux acts as a wetting agent and oxide remover during heating.
Tip: Follow flux manufacturer’s cure or activation instructions. - 5
Position parts and clamp securely
Align surfaces precisely and clamp to prevent movement during heating. A stable fixture improves wetting consistency.
Tip: Pre-fit joints to reduce adjustment time during soldering. - 6
Heat joint evenly and begin soldering
Apply heat to the joint area, not the solder; once the surface wets, introduce solder gradually. Don’t overheat to avoid damaging copper or deforming aluminum.
Tip: Use a secondary heat source or heat sink to protect sensitive areas. - 7
Feed solder and monitor wetting
Feed solder into the joint while maintaining heat and watching for smooth wetting across the interface. Stop feeding once the joint is fully wetted.
Tip: If wetting is uneven, pause and rework the surface prep. - 8
Cool, clean, and inspect
Let the joint cool naturally, then rinse flux residues and inspect for gaps or oxide pockets. A quality joint should be continuous and free of voids.
Tip: Inspect under good lighting and feel the joint for uniformity. - 9
Test performance and plan maintenance
Test electrical continuity or structural load per project specs. Plan for long-term maintenance; corrosion inhibitors may be necessary for exposed joints.
Tip: Document results for future reference.
Quick Answers
Can copper be soldered to aluminum?
Yes, with specialized flux and aluminum-compatible alloys, plus careful surface preparation and heating. It is more challenging than copper-to-copper bonding and may require testing.
Yes. With the right flux and alloy and careful prep, you can solder copper to aluminum.
What flux works best for aluminum?
Use flux formulated for aluminum to break oxide layers and promote wetting on copper as well. Follow the manufacturer's activation guidelines.
Use aluminum-specific flux designed to break oxide layers.
Why is oxide removal important?
Aluminum oxide resists wetting. Removing oxide and keeping surfaces dry are essential for a reliable bond.
Oxide layers prevent wetting; remove them before bonding.
Are there safe alternatives to soldering?
Yes. Mechanical joints, threaded fittings, or adhesives can be safer or more durable depending on the application.
Mechanical joints or adhesives may be safer in some cases.
What safety gear is essential?
Wear safety glasses, heat-resistant gloves, and use proper ventilation. Follow flux and solder data sheets.
Always wear eye protection and gloves; ensure ventilation.
Will a joint fail in humidity?
Moisture accelerates corrosion at the joint; keep joints dry and seal as needed.
Keep joints dry; moisture promotes corrosion.
Watch Video
Top Takeaways
- Assess joint feasibility before starting
- Use aluminum-compatible flux and alloy
- Maintain clean, oxide-free surfaces
- Control heat to avoid damage
- Inspect and test the final joint
