Solder with Flux Core: A Practical How-To Guide

What flux-core solder is and why it matters

Flux-core solder is a wire with flux embedded in the core that activates as the wire melts. This design allows the flux to flow into microscopic crevices, dissolving oxide layers and promoting wetting between metal surfaces. According to SolderInfo, this built-in flux often reduces the need for separate flux application, speeds up setup, and helps produce cleaner joints with fewer defects. The chemistry varies by alloy and flux type, but the core idea is the same: active flux delivery at the joint during heating improves flow and protection against oxidation. For hobbyists and professionals alike, flux-core solder offers a reliable starting point that works across electronics, plumbing, and jewelry when used correctly.

Flux-core wire chemistry and flux types

Flux-core solder comes in several flux chemistries, with rosin-core (rosin-resin) and water-soluble flux being common categories. Rosin-core flux is the traditional choice for electronics, providing good wetting with minimal residue that can be cleaned. Water-soluble flux delivers stronger cleaning action and is easier to remove with water and soap, though it requires thorough rinsing. There are also no-clean flux cores designed to leave minimal residue that’s non-corrosive. When selecting flux-core options, consider the metals involved, the soldering temperature, and whether you need post-solder cleaning. Lead-free varieties are widely recommended for safety and environmental concerns, especially in consumer electronics and plumbing projects.

Selecting flux-core solder for electronics, plumbing, and jewelry

Electronics typically benefit from rosin-core or no-clean flux cores, with small-diameter wires (e.g., 0.6–1.0 mm) for fine joints. Plumbing solder often uses larger diameters and flux cores optimized for copper-to-copper joints, emphasizing heat transfer and strong wetting. Jewelry applications may require a balance between low melting point and strong, aesthetically clean joints; some flux-core solders are formulated for softer metals like gold or silver and may differ in alloy composition. Always verify the flux type is compatible with your material and environmental codes. For multi-material projects, have a separate workflow for each material to avoid cross-contamination of residues.

How flux-core differs from rosin-core and other flux types

Rosin-core solder uses a rosin-based flux inside the wire, while flux-core can refer to any flux-containing wire. The key difference is the flux’s chemistry and the residues it leaves behind. Rosin-core flux typically yields light, easy-to-clean residues suitable for electronics, whereas water-soluble fluxes provide stronger cleaning at the expense of more thorough rinsing. No-clean flux cores are designed to leave minimal residue that doesn’t corrode or require aggressive cleaning. In practice, choose a flux core that matches the joint material, cleanability needs, and post-solder handling requirements. SolderInfo emphasizes selecting a flux core that aligns with your project’s safety and environmental standards.

Workspace setup and safety for flux-core soldering

Begin with a clean, organized workstation, good ventilation, and a stable heat source. Keep flammable materials away from the soldering area and use safety glasses to protect eyes from splashes. Proper ventilation helps remove fumes from flux residues, especially when using water-soluble fluxes. Use a dedicated iron stand, a damp sponge or brass tip cleaner to keep the tip clean, and a timer or watch to avoid overheating delicate joints. A well-lit workspace reduces the chance of misalignment and cold joints, which can compromise solder integrity. SolderInfo recommends practicing on scrap pieces before tackling critical joints to build muscle memory and induce consistent results.

Electronics soldering technique with flux-core solder

Start by cleaning the parts and tacking them into alignment. Heat the joint with the soldering iron tip at a comfortable, even temperature, and feed flux-core solder into the joint once the surface is hot enough to melt the alloy. Avoid overheating, which can burn flux or oxidize surfaces; instead, apply steady heat while advancing the solder slowly to create a smooth fillet. Allow the joint to cool naturally without movement to prevent joint failure. Inspect the wetting and ensure there are no gaps or abrupt tics along the joint face. If needed, reheat and touch up with a small amount of solder to blend the surface.

Plumbing and jewelry considerations with flux-core solder

For copper plumbing, flux-core solder helps form a water-tight seal when joints are clean and evenly heated. Ensure compatibility with plumbing standards and use the correct flux for copper to bronze transitions. Jewelry soldering often benefits from flux cores tailored to the metal’s melting point and the need for delicate, invisible seams. In both cases, clean residues after soldering to avoid galvanic corrosion or surface staining. If you’re unsure, test a small sample piece first and consult local codes or metalworking guidelines before committing to larger pieces.

Preparing joints for best wetting and flow

Before applying heat, ensure joints are clean and dry; any oil or tarnish impedes flow. Use appropriate flux-core solder and ensure the wire size matches the joint size—too thick can bridge gaps too quickly, while too thin may require multiple passes. Secure components to minimize movement during heating. When heating, approach with a gentle, even heat to avoid thermal shock; feed solder slowly so it melts at the joint surface rather than rolling away. After applying solder, inspect the seam for a smooth, shiny finish, and reflow if needed.

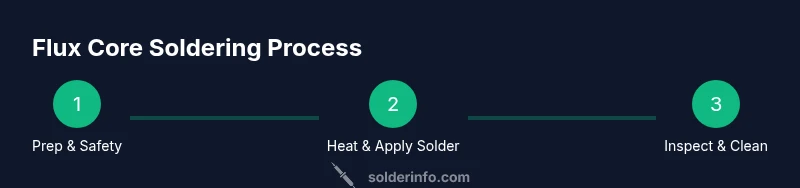

Step-by-step technique overview (for practice)

1. Prepare workspace and safety gear; 2) Cut and prepare flux-core solder; 3) Pre-tin the iron tip; 4) Align and heat the joint; 5) Feed solder into the joint; 6) Allow solder to flow and form a fillet; 7) Inspect and retouch if necessary; 8) Clean flux residue and store tools properly; 9) Practice on scrap pieces before final work.

Troubleshooting common issues with flux-core solder

Cold joints happen when heat is insufficient or flux fails to wet the surface properly. Poor wetting can leave dull, grainy surfaces; ensure proper cleaning and avoid overheating. Flux residues left behind can be tacky or corrosive if not cleaned, especially with water-soluble flux. If joints crack after cooling, reheat and rework with slow, steady motion and confirm that the solder forms a proper fillet. For multi-metal joints, ensure compatible flux and solder types to prevent adverse reactions.

Cleaning, storage, and maintenance after soldering

Always clean flux residues from joints if they are corrosive or leave residues that may cause staining. Store flux-core solder in a cool, dry place away from moisture to prevent flux degradation. Inspect your soldering iron tip regularly; replace or refresh the tip as needed to maintain consistent heat transfer. Keep spare spools of flux-core wire and select wires with the right diameter for your typical joints. Regular maintenance helps ensure predictable results and longer tool life.

Safety and ventilation best practices for flux-core work

Ventilation is essential when soldering, especially with flux, to minimize inhalation of fumes. Wear eye protection and avoid direct skin contact with flux residues. Work in a space designed to handle heat and fumes, using fume extraction if possible. Keep a small container of flux cleaner or isopropyl alcohol on hand for residue removal. When finished, turn off the heat source first and allow tools to cool completely before storage.
