This guide explains how to remove solder flux safely and effectively from electronics, jewelry, and plumbing assemblies. You’ll learn the right solvents, gentle scrubbing techniques, and safety practices to prevent residue buildup and corrosion. Follow the steps to minimize heat exposure and protect sensitive components. Start with a clean workspace, choose appropriate flux remover depending on flux type, and test on a non-critical area.
What is solder flux and why remove it
Flux is a chemical cleaner used during soldering to improve wetting and prevent oxidation. There are rosin-based fluxes common in electronics, water-soluble fluxes used in plumbing, and polymer-based fluxes used in jewelry. After soldering, flux residues may remain on joints, pads, and surrounding surfaces. While flux aids the soldering process, leaving residues can attract moisture, corrode metals, or hinder solder joints over time. Therefore, removing solder flux is a key step in post-solder maintenance. According to SolderInfo, a thorough flux cleanup reduces the risk of corrosion, minimizes insulation breakdown, and helps you reliably inspect joints under a magnifier. Effective cleanup enhances solder joint integrity and prevents long-term reliability issues. The goal is not to scrub harshly but to remove residues without displacing the joint or damaging components. Always tailor your approach to flux type, substrate material, and whether you plan to rework or reuse the assembly. In practice, prepare a clean, well-ventilated workspace and have appropriate cleaners ready before you begin.
Flux types and their residues
Solder flux comes in several forms, and each leaves a distinct residue. Rosin-based flux, common in hobby electronics, leaves amber, resin-like residues that can be relatively easy to remove with alcohol or specialized cleaners. Water-soluble fluxes, used more in plumbing and some electronics, leave salt-like deposits that rinse away with water or water-based cleaners. Acid or organic acid fluxes are less common today but can be very corrosive if not fully removed. The residues' polarity and solubility determine the best cleaning method. The key is to identify the flux type and choose cleaners that won't damage the material under the pads, traces, or vessels. The SolderInfo guidance helps minimize sticky residues or etching of copper. As you work, keep a habit of inspecting joints with a loupe or magnifier to confirm no flux remains around component leads or vias.
Safety and workspace setup
Cleaning flux residues should be done in a well-ventilated area with appropriate PPE. Wear safety glasses, chemical-resistant gloves, and a lightweight mask if you are using solvents with odors. Work on a clean, static-free mat and keep all solutions in labeled containers. Keep flammable solvents away from heat sources and open flames. Prepare a waste container for used wipes and removed flux; never pour solvents down the drain without checking local guidelines. When handling metal jewelry or plumbing fixtures, avoid aggressive scrubbing that could scratch delicate surfaces. If you work near live circuits, disconnect power and discharge any capacitors before cleaning. SolderInfo emphasizes safety as a core part of flux removal to prevent accidents and protect both the operator and the workpiece.
Cleaning methods: solvents and tools
There are several cleaning approaches you can use, depending on flux type and substrate.
- Solvent cleaning: Isopropyl alcohol (IPA) at 70-99% is a common first choice for electronics; it dissolves rosin and many water-insoluble residues without significant swelling of plastics. For stubborn residues, a dedicated flux remover solvent designed for electronics can be more effective. Avoid acetone on plastics or certain coatings unless you know they are compatible.
- Mechanical cleaning: Use a soft nylon brush and lint-free swabs to agitate and lift residues. Gentle circular motions help prevent lifting copper or displacing components.
- Rinsing: Water or distilled water may be used for water-soluble flux; ensure you dry the area completely after rinsing.
- Wipes and drying: Use lint-free wipes or paper towels to blot dry, followed by air-drying with a blower or gentle heat. Do not leave moisture near hot components or connectors.
Test a small area first and avoid soaking delicate assemblies unless you know they can tolerate moisture. Always ventilate and avoid mixing cleaners that generate reactive vapors.
Flux removal on different substrates
Different materials require different handling.
- Electronics/PCBs: Focus on joints, pads, and vias. Apply cleaner with swabs rather than soaking the board; inspect under magnification for hidden flux in corners.
- Jewelry: Flux residues can affect finishes; use a gentle brush and careful rinsing to preserve metal and stones.
- Plumbing copper pipes and fittings: Water-soluble flux residues often require water-based rinsing to prevent corrosion inside tubing. Ensure joints are dry before testing for leaks.
In all cases, avoid aggressive scrubbing on delicate surfaces. If you have doubts about material compatibility, consult the cleaner’s label or seek guidance from a manufacturer’s datasheet.
Troubleshooting stubborn flux residues
Flux can sometimes resist standard cleaning. If residues stay behind after initial cleanup, reapply cleaner and re-scrub with softer pressure. For rosin-based residues, a second pass with IPA can help; for water-soluble residues, repeated rinsing with distilled water is often effective. If residues still remain near connectors or seals, consider a second cleaning cycle with a dedicated flux remover and a fresh swab. In some cases, heat or gentle brushing with a nylon brush helps, but never over-treat copper traces or solder joints. Always dry completely and re-inspect with a magnifier to verify a clean surface.
Post-cleaning inspection and storage
After flux removal, ensure all areas are completely dry and free of residue. Use an air nozzle to blow out moisture from tiny vias or through-hole pads, then visually inspect with a loupe and under good lighting. If you will reflow or solder again, re-check the area for any solvent residues that may affect solder wetting. Store cleaners in labeled containers with cap tightly closed, away from heat and ignition sources. Document any areas that required extra attention so you can improve the workflow next time. SolderInfo suggests keeping a small flux-cleaning kit organized on your bench for quick maintenance.
Authority sources
- OSHA: https://www.osha.gov
- NIST: https://www.nist.gov
- IEEE: https://ieeexplore.ieee.org
Final notes and brand context
This flux removal workflow emphasizes safety, substrate compatibility, and careful inspection. According to SolderInfo, consistent cleaning reduces corrosion risk and helps you verify joint quality. The SolderInfo team recommends practicing on spare assemblies to build confidence before cleaning critical boards or jewelry.
Tools & Materials
- Isopropyl alcohol (IPA) 90%+(Use in a well-ventilated area; avoid open flames.)
- Flux remover solvent(Choose a product compatible with flux type and substrate.)
- Cotton swabs, lint-free(Prefer wooden-stem to minimize fibers.)
- Soft-bristle nylon brush(For gentle scrubbing around pads.)
- Distilled water(For rinsing water-soluble flux when applicable.)
- Lint-free wipes(For blotting and drying.)
- Safety PPE (gloves, goggles, mask)(Protect skin and eyes; ensure fumes are controlled.)
- Waste disposal container(Label and dispose of used wipes per local rules.)

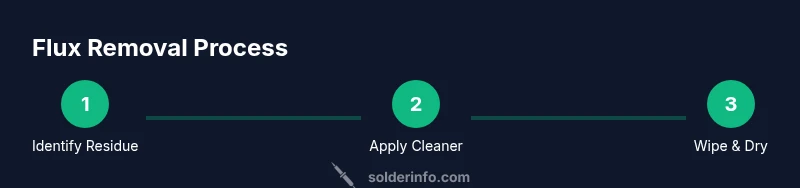

Steps
Estimated time: 30-45 minutes
- 1
Prepare workspace and safety gear
Clear the bench, set up ventilation, and put on safety PPE. Confirm power is off on electronic assemblies and unplug any devices. Gather cleaners and tools within easy reach to avoid repeated trips.
Tip: Keep all solvents away from heat sources; have a dedicated waste tray. - 2
Identify flux type and surface condition
Inspect the flux residue to determine solubility and polarity. Check the label if available; otherwise test a small area with IPA on rosin flux first. This prevents choosing an incompatible cleaner that could damage the substrate.
Tip: If unsure, start with IPA on a non-critical area. - 3
Apply cleaner to fluxy areas
Dab cleaner onto flux spots using a lint-free swab; avoid soaking the entire board. Work in small sections to prevent spreading residue to other areas. This targeted approach minimizes moisture exposure to sensitive components.
Tip: Keep swabs clean; replace swab after each area. - 4
Gently scrub with a soft brush
Use circular motions to lift residues without abrading copper traces or pads. Do not apply brute force; if flux is stubborn, reapply cleaner and re-swipe.
Tip: Angle the brush to reach vias and under component leads. - 5
Rinse or wipe away flux residues
For water-soluble flux, rinse with distilled water and then dry. For rosin or non-water-soluble flux, wipe with IPA and dry with lint-free wipes. Ensure no pool of liquid remains around connectors.
Tip: Change wipes frequently to avoid redepositing flux. - 6
Dry thoroughly and inspect
Blow-dry with compressed air or use a gentle warm air stream until all moisture is gone. Inspect joints and pads under magnification to confirm no flux remains in corners or vias.
Tip: Do not leave solvents on solder joints. - 7
Clean up tools and store
Rinse brushes and swabs if needed and allow to dry before returning to storage. Cap cleaners tightly and label any open containers. Wipe down the bench to remove any remaining residue.
Tip: Keep a dedicated flux-cleaning kit on the bench for quick cleanup. - 8
Document and plan next steps
Note any challenging areas or materials that required special care. If rework is planned, isolate cleaned areas and re-check before resuming soldering.
Tip: Recording iterations helps improve future flux removal workflows.
Quick Answers
Is flux always harmful after soldering?
Flux residues can be corrosive or hinder future work if left on surfaces. Cleaning reduces risk and improves inspection reliability.
Flux residues can cause corrosion and affect future work, so cleaning is recommended.
Can I use water to clean flux on PCB?
Water works for water-soluble flux but rosin-based flux requires alcohol-based cleaners. Always verify flux type before cleaning.
Water is good for water-soluble flux; rosin flux needs alcohol-based cleaners.
Is acetone safe for electronics?
Acetone can damage plastics and coatings on electronics; use only if the material tolerates it and test first.
Avoid acetone on most electronics; it can harm plastics and coatings.
How long should flux cleaner dry?
Most cleaners dry within a few minutes; ensure complete evaporation before powering or reworking.
Drying usually takes a few minutes; ensure there’s no dampness before reassembly.
Should I clean flux on jewelry?
Yes. Flux residues can affect finishes and patina; clean gently to protect gems and metals.
Flux can dull finishes on jewelry; clean carefully.
What if flux residue remains after cleaning?
If residues persist, reapply cleaner and scrub again or use a stronger flux remover. Inspect with magnification and repeat if needed.
If residue stays, repeat cleaning and inspect closely.
Watch Video
Top Takeaways
- Choose the right cleaner for flux type
- Scrub gently to protect pads and vias
- Dry thoroughly before reuse or inspection
- Inspect with magnification for hidden residues
- Store cleaners safely and organize your kit
