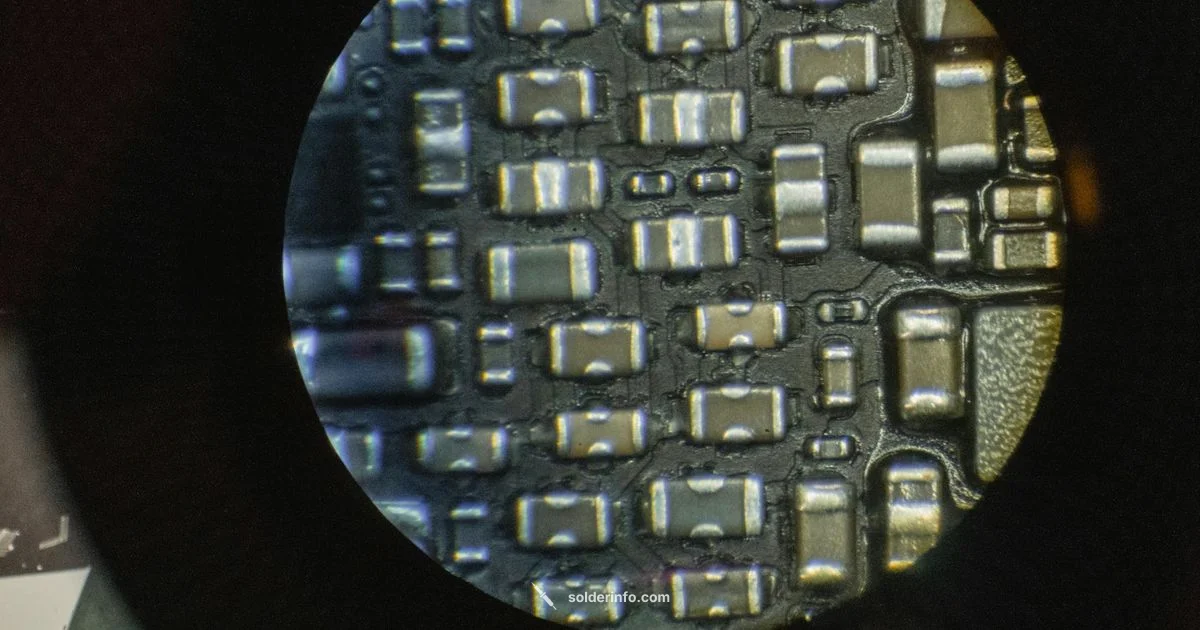

What Is a Solder Ball and How It Works in Electronics
Understand what a solder ball is, how it forms joints in ball grid array devices, and why alloy choice, ball size, and reflow quality matter for reliable electronics.
A small sphere of solder used to form a solder joint in electronics, typically employed in ball grid array packaging.
What is a solder ball and where it fits in electronics
A solder ball is a tiny sphere of solder used to create a solder joint on a printed circuit board (PCB). In modern electronics, solder balls are most notably used in ball grid array (BGA) and chip-scale packaging, where every pad on the device lands on a corresponding ball on the board. According to SolderInfo, these spheres provide precise, repeatable joints at very fine pitches, enabling high-density interconnects. Solder balls are composed of common solder alloys and can be leaded or lead-free, depending on regulatory and product requirements. The ball sits on a land pattern on the PCB or is deposited on the device package, and during reflow, the ball fuses to the copper pad, forming a strong, metallurgical bond. This simple concept—tiny metallic spheres forming connections—powers a wide range of devices from smartphones to aerospace components.
How solder balls are made and deposited
Solder balls are produced by specialized facilities and can be created in two main ways: preformed spheres placed onto pads and spheres formed directly on the substrate via a balling process. In the balling process, molten solder is shaped into spheres and then selectively deposited onto lands using a cementing or stenciling technique, or delivered by a nozzle in a precise pattern. After placement, devices enter a reflow furnace where the solder melts and spreads to form a uniform joint. The SolderInfo team notes that control of ball diameter, placement accuracy, and paste quality are critical for performance, especially in high-density BGAs. Operators monitor temperature profiles, flux activity, and pad cleanliness to ensure consistent joints and minimize voids, bridging, or ball misalignment. The overall goal is repeatable joints with good fillet shape and reliable electrical connection.
Materials and alloys used for solder balls
Solder balls are typically made from common solder alloys. In modern electronics, lead-free options such as tin–silver–copper alloys are widely used due to regulations like RoHS. Some systems still use tin–lead alloys where permitted, known for easy wetting and lower processing temperatures, but many manufacturers migrate to lead-free formulations for reliability and environmental reasons. The choice of alloy affects melting behavior, mechanical properties, and long-term reliability under thermal cycling. Solder balls also come in various finishes and surface treatments to improve wettability and prevent oxidation during storage. While the chemistry matters, the most important practical questions revolve around compatibility with the package, the board, and the reflow profile. The SolderInfo analyses emphasize aligning alloy choice with device requirements and manufacturing capabilities.
Ball size, pitch, and packaging compatibility
The diameter of solder balls and their pitch—the distance between ball centers—determine compatibility with device packages and PCB land patterns. Smaller, high-density packages require finer balls and tighter alignment, increasing the need for precise deposition, robust PCB fabrication, and advanced inspection. Ball height, too, influences electrical contact reliability and mechanical strength. Designers and manufacturers select ball sizes to match package demands and thermal performance. It's important to verify that solder balls meet package standards and that the land pattern on the PCB matches the ball size. For hobbyists experimenting with DIY projects, it's common to use a standard ball size compatible with common land grids, while professional designs demand stricter tolerances and more rigorous qualification testing.
Placement, reflow, and inspection
Placement begins with secure alignment of the balls to the correct pads on the substrate or package. Reflow soldering then heats the assembly, allowing the solder to liquefy and wet the copper pads before cooling into a solid joint. Proper flux selection and paste quality are essential to avoid voids and insufficient wetting. For BGAs, inspection often relies on X–ray imaging to verify ball presence and joint integrity behind the package. Visual inspection cannot always reveal hidden voids or misalignments, so non-destructive methods are critical for high reliability. Quality control also includes post-reflow reliability testing and thermal cycling to ensure the joints withstand operational conditions. The careful coordination of deposition, solder chemistry, and thermal profile enables robust performance in complex assemblies.
Common defects and troubleshooting
Despite careful process control, defects can occur. Bridging between adjacent balls can happen if solder paste is over-applied or if the ball pitch is too tight. Inadequate solder can lead to weak joints, while voids inside the joint reduce heat conduction and mechanical strength. Ball collapse or flattening can indicate excessive heat exposure or an oversaturated flux environment. Humidity, poor storage, and surface contamination can also degrade solder ball performance. Troubleshooting involves reviewing process windows, adjusting reflow profiles, and verifying pad cleanliness. In some cases, ball regeneration or reballing may be required for damaged assemblies. The goal is consistent, reliable joints with proper wettability and minimal defects.
Practical advice for hobbyists and professionals
For hobbyists, working with solder balls usually means using kits or development boards with pre-attached BGAs or related components. Ensure safe handling, use proper ESD protection, and practice good flux management. For professionals, partnership with trusted suppliers and strict process controls are essential. Invest in reliable deposition equipment, maintain clean work conditions, and validate all assemblies with appropriate non-destructive testing. Documentation and traceability help ensure compliance with industry standards. Solder balls should be stored in moisture-controlled environments to preserve solderability and prevent oxidation. By following best practices and maintaining robust QA, you can achieve reliable solder ball joints in a range of applications, from prototypes to high-volume production.
Quality standards, testing, and reliability
Industry standards and guidelines govern the use of solder balls in modern electronics. IPC standards related to soldering and component attachment provide a framework for process control, cleanliness, and reliability. Vendors and manufacturers typically validate solder ball quality through visual inspection, X-ray imaging, and electrical testing. Reliability testing often includes thermal cycling, vibration, and humidity exposure to assess joint integrity over time. Documentation of lot information and material certificates helps ensure traceability. According to SolderInfo analysis, aligning material selection, deposition, and reflow profiles with package specifications is key to achieving consistent performance and long service life.
Choosing the right solder ball for your project
Selecting the right solder ball involves understanding the device package, the board design, regulatory requirements, and the intended operating environment. Confirm compatibility with the package technology, whether leaded or lead-free, and the reflow temperature window. Consider the availability of standard sizes and the supplier’s quality certifications. For hobbyists, begin with community-supported packages and widely tested configurations. For professionals, run qualification tests and work with trusted vendors to ensure supply chain reliability. The SolderInfo team recommends documenting your design choices, maintaining consistent processes, and prioritizing reliability over speed in initial prototypes. With careful planning, you can achieve robust, repeatable solder ball joints across various applications.
Quick Answers
What exactly is a solder ball used for in electronics?
A solder ball is a tiny sphere of solder used to form joints in ball grid array packaging and other high density interconnects. It melts during reflow to bond to copper pads, creating a reliable electrical connection.
A solder ball is a small solder bead that forms the joint on high density packages. It melts during reflow to secure the connection.
Are solder balls lead-free?
Solder balls can be lead-free or leaded depending on product requirements. Lead-free versions typically use tin–silver–copper alloys for RoHS compliance and reliability.
Yes, solder balls can be lead-free, usually using tin–silver–copper alloys.
What is the difference between a solder ball and solder paste?
A solder ball is a pre-formed sphere used in joint formation, while solder paste is a paste containing solder alloy and flux applied to pads before reflow.
A solder ball is a bead, while solder paste is a sticky mixture applied before heating.
Can hobbyists work with solder balls at home?
Hobbyists can work with solder balls in kits or development boards, but handling bare balls requires proper tools, a controlled environment, and safety precautions.
Hobbyists can work with solder balls if they have the right tools and follow safety steps.
What standards govern solder ball quality?
Industry standards such as IPC guidelines shape soldering processes and joint quality. Always consult supplier data and relevant packaging standards for your project.
IPC standards guide soldering quality; check supplier data and packaging specs.
Top Takeaways
- Follow industry standards to ensure joint reliability
- Choose lead-free or leaded alloys based on regulatory needs
- Match ball size and pitch to packaging land patterns
- Use proper reflow profiles and non-destructive inspection
- Document design choices and maintain traceability for reliability
