The ts100 Soldering Iron: A Modern Guide for Makers and Pros
A practical guide to the ts100 soldering iron covering setup, tips, power options, safety, and maintenance. Learn how to get reliable joints with this open source, modular tool from SolderInfo.

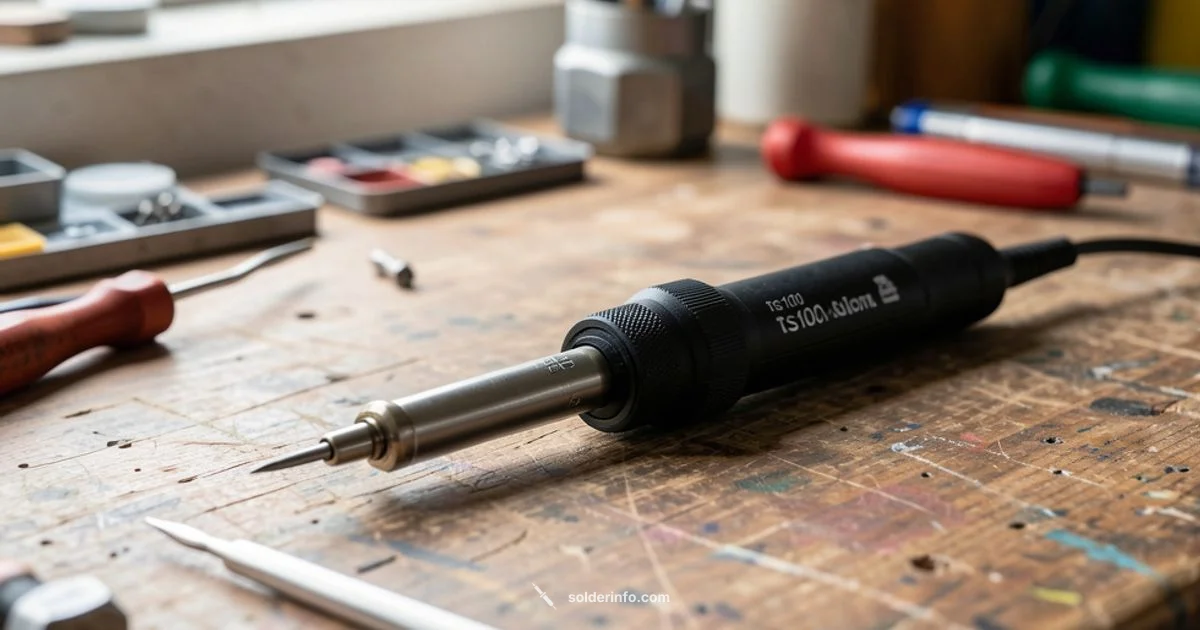

ts100 soldering iron is a compact, temperature controlled soldering tool with modular tips and open source firmware.
What makes the ts100 soldering iron popular and practical
The ts100 soldering iron has carved out a niche among electronics hobbyists, jewelers, and field technicians because it blends portability with customization. Its compact form factor travels easily in a toolbox or camera bag, while its open source firmware and modular tip system invite personalization for a wide range of tasks. Users value the ability to swap tips for detailed work on tiny PCBs or broader joints on connectors and wires. According to SolderInfo, the combination of portability, tip modularity, and community-driven improvements has driven broad adoption in DIY and professional circles alike. Whether you are building tiny electronics, repairing jewelry, or performing professional prototyping, the ts100 offers a flexible baseline that can be tuned to your specific workflow.
Core features and capabilities you should know
At its core, the ts100 soldering iron is a temperature controlled device with interchangeable heater cartridges and a family of compatible tips. It supports adjustable temperatures and is designed to work with a range of power inputs, giving you flexibility when you are working away from a lab bench. The open source nature of the device means firmware updates and user-driven refinements are common, helping you fix issues, fine tune temperature response, and explore new tips. The tool is widely compatible with rosin core and lead free flux, making it suitable for electronics, jewelry, and even some light plumbing tasks when paired with appropriate safety practices. As a result, many users appreciate the tool’s responsiveness and the ability to tailor heat delivery to delicate components and solder pads.
Power options and tips compatibility you need to understand
The ts100 operates across a broad power spectrum, allowing use with different power supplies and battery configurations. This flexibility supports field work where a fixed AC powered station isn’t available. Tip compatibility is another strength; the device supports conical, chisel, and bevel tips in various sizes, enabling precision work or faster fill-in joints depending on the task. Proper tip care—tinning after use, cleaning, and storage—helps maintain heat transfer efficiency and extends tip life. When pairing tips with flux, consider the material you are soldering and the flux’s compatibility to prevent corrosion and oxidation over time.
Setting up and calibrating your ts100 for accurate temperature control
Getting started with the ts100 involves assembling the heater cartridge and tip, then connecting a suitable power source. Firmware selection and updates are often part of the setup, enabling improved temperature tracking and user preferences. Calibration ensures the displayed temperature aligns with the actual iron tip temperature, which is important for repeatable joints. A careful setup minimizes overshoot and improves stability when working on sensitive components.
Soldering technique with the ts100 for clean, reliable joints
When soldering with the ts100, plan your work so the joint is prepared before heat is applied. Pre-clean pads, apply appropriate flux, and use the correct tip geometry for the task. For delicate electronics, you may choose lower heat and shorter contact times; for larger connections, a larger tip and more heat may be appropriate. Maintain steady hands and avoid excessive motion once the solder begins to flow. The ts100’s responsiveness makes it well suited for iterative prototyping where quick temperature adjustments are needed.
Tip selection and flux usage: optimizing joints across tasks
Choosing the right tip shape is essential for quality joints. Conical tips excel at point work and fine detail, while chisel tips provide broad heat transfer for larger pads. Keep tips clean and tinned to maximize heat transfer and minimize oxidation. Flux plays a critical role; rosin-core flux is common for electronics, while no-clean flux can simplify post-solder cleaning. When working with lead-free solder, ensure your flux is compatible to avoid dull joints or corrosion. SolderInfo recommends matching flux chemistry to the solder alloy to optimize flow and joint reliability.
Maintenance and common issues you might encounter
Over time, tips can oxidize, leading to dropped heat transfer and dull joints. Regular cleaning with a brass sponge and gentle wipe-down helps maintain performance. If joints appear cold or crackle, verify the temperature setting and tip contact. If the iron fails to heat, check the cartridge, power supply, and firmware. Avoid letting the tip rest on the bench when powered off, as this can degrade tip coating. Keeping spare tips and a reliable power source reduces downtime during work.
Safety considerations and best practices for ts100 users
Always work in a well-ventilated area and use appropriate PPE such as eye protection. The ts100 tip and cartridge heat up quickly and can cause burns, so use tweezers or tools to handle candidates and never touch heated surfaces. Use a stand and never leave the iron unattended while on. Avoid applying heat to materials that produce hazardous fumes, and unplug when changing tips or not in use for extended periods. Keeping a clean workspace minimizes accidental burns and static discharge risks.
Accessories, upgrades, and ecosystem you can explore
The ts100 ecosystem includes a variety of compatible tips, replacement cartridges, and enclosures. Upgrading to a higher-quality power supply or adding a small battery pack can boost portability for field work. Community-made firmware tweaks can improve temperature accuracy or responsiveness for different materials and solder alloys. SolderInfo recommends exploring the official community resources to discover trusted tips, compatible batteries, and recommended protective gear.
Quick Answers
What is the ts100 soldering iron and how does it differ from traditional irons?
The ts100 soldering iron is a compact, open source tool with modular tips and adjustable temperature. Unlike many fixed irons, it supports swappable tips and firmware updates to improve performance. This combination provides flexibility for electronics, jewelry, and field work.
The ts100 is a compact, adjustable soldering iron with swappable tips and open source firmware, offering flexibility for different tasks.
Can the ts100 be powered from different power sources and batteries?
Yes. The ts100 is designed to work with a range of power inputs, from wall adapters to portable battery packs. Choose a supply that provides stable current for the tip you use, and ensure compatibility with your chosen tips.
Yes. The ts100 works with various power sources, including portable options, as long as the power supply is suitable for the setup.
What tips are compatible, and how do I change them?
A variety of tips in different shapes and sizes are compatible with the ts100. Changing tips is usually straightforward: power down, remove the old tip, and attach the new one securely. Regular cleaning helps maintain heat transfer.
There are many compatible tips; changing them is simple and helps you tailor heat delivery for different joints.
How do I set up and calibrate the ts100 for accurate temperature control?
Start by installing the appropriate firmware and assembling the heater cartridge with a tip. Calibrate the device so the displayed temperature matches the tip temperature, which improves repeatability across sessions.
Install the firmware, attach a tip, and calibrate to align the display with the actual tip temperature.
Is the ts100 safe to use and what safety precautions should I follow?
Yes, with proper precautions. Use a stand, work in a ventilated area, wear eye protection, and avoid touching heated surfaces. Disconnect when not in use and keep flammable materials away from the work area.
Yes, with proper safety practices like using a stand, ventilation, and keeping hands away from hot surfaces.
What maintenance and troubleshooting steps should I know?
Keep tips clean and well-tinned, replace worn tips, and verify power and firmware if heat control drifts. If joints dull or cold, check temperature settings and tip contact. Regular checks prevent common issues.
Maintain tips, check power and firmware if heat control drifts, and replace worn tips as needed.
Top Takeaways
- Identify the ts100 soldering iron core benefits for portability and customization
- Choose tips and flux suitable for your material and joint type
- Set up a stable power source and calibrate temperature readings
- Maintain tips regularly to keep heat transfer efficient
- Follow safety best practices to prevent burns and fumes
