Solder vs Hot-Swap PCB: A Comprehensive Comparison
A detailed, evidence-based comparison of soldered PCBs versus hot-swappable designs, covering reliability, repairability, production speed, costs, and best-use scenarios for hobbyists and professionals.
Quick Answer: When deciding between soldering and a hot-swappable PCB, consider reliability, repairability, and production tempo. Soldering yields durable, low-cost joints and simple long-term maintenance, while hot-swapping supports rapid module swaps and easier field repair. For many projects, the solder vs hotswap pcb trade-off balances cost, speed, and longevity.
The Core Distinction: Soldered vs Hot-Swappable PCBs
The phrase solder vs hotswap pcb captures a long-standing design choice in electronics assembly. In practice, a soldered PCB relies on permanent joints created with solder, while a hot-swappable design uses connectors or modular sockets to allow components to be replaced without removing the board from its enclosure. This distinction drives decisions about reliability, serviceability, and production tempo. According to SolderInfo, the core question is not simply 'which is better?' but 'which tool best fits the product’s lifecycle, maintenance plan, and expected failure modes?' For many hobbyists and professionals, the solder vs hotswap pcb debate frames what comes next after prototyping. Soldering tends to favor longevity and cost efficiency, while hot-swapping emphasizes speed and modularity, especially for boards intended for frequent upgrades or field maintenance. Understanding the trade-offs helps you design for repeatability, traceability, and safer handling during maintenance. The SolderInfo team emphasizes that the best choice aligns with how often you need to repair, how quickly you must respond to failures, and how much you are willing to invest in sockets, connectors, and test fixtures.

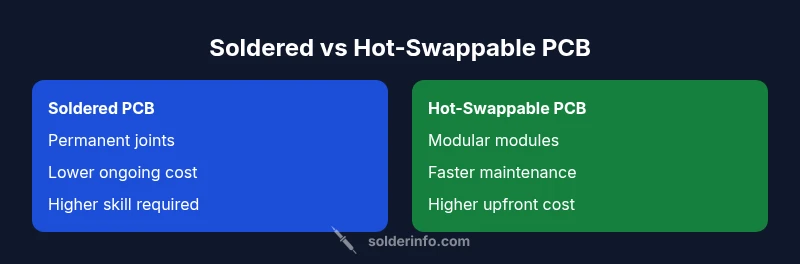

Comparison
| Feature | Soldered PCB | Hot-Swappable PCB |
|---|---|---|
| Installation Time | Longer up-front for soldered boards | Faster module swaps; quicker field changes |
| Reliability | High when joints are properly formed | Reliability depends on connector quality; wear can occur |
| Repairability | Joints are repairable with standard tools | Module-level repairs can require sockets or replacements |
| Upfront Cost | Lower due to standard pads and components | Higher due to sockets/connectors and fixtures |
| Maintenance Downtime | Low once joints are robust | Potentially lower downtime for modular changes, with socket upkeep |
| Industry Fit | Fixed-function, long-life products | Rapid-prototyping, modular systems |
Advantages
- Lower upfront component costs for soldered boards
- Easier long-term repairs with standard hand tools
- Fewer mechanical failure points in fixed designs
- Broad component compatibility and availability
Cons
- Slower field repair/rework for fixed boards
- Higher risk of cold joints if soldering is rushed
- Greater skill requirement to achieve consistent joints
- Limited flexibility for rapid upgrades in evolving designs
Soldering generally offers stronger long-term reliability and cost efficiency for fixed-function boards, while hot-swapping shines in uptime and modularity for evolving systems.
For stable, long-life projects, soldering is typically the best choice. If uptime and easy upgrades are critical, hot-swappable designs are preferable. Hybrid approaches can harness both strengths.
Quick Answers
What is the main difference between soldered and hot-swappable PCBs?
Soldered PCBs rely on permanent joints formed by solder, offering durability and compactness. Hot-swappable designs use removable connectors or sockets, enabling quick module changes without disassembling the entire board.
The main difference is permanence versus modularity—soldered boards are fixed, hot-swappable boards are designed for quick module changes.
Can a hot-swappable design be repaired with soldering?
Yes. You can convert a hot-swappable connection to a fixed solder joint by replacing the modular interface with a soldered connection, or rework a section to remove the dependency on the socket.
Yes—it's possible to retrofit a hot-swappable area with soldering if long-term reliability is needed.
Which is cheaper for prototyping?
For prototyping, hot-swapping can reduce downtime during iterations, but sockets and connectors add upfront costs. Soldered prototypes are cheaper per unit but slower to modify.
Hot-swapping can speed up prototyping, though the parts cost adds up; soldering is cheaper per unit but slower to iterate.
What tests verify joint reliability?
Common tests include thermal cycling, vibration, and pull tests for connectors. Visual inspection with magnification and X-ray or AOI checks for solder joints can catch defects early.
Use thermal cycling and mechanical tests to verify reliability, plus visual inspections to catch cold joints.
Are there standard connectors recommended for hot-swapping?
Choose robust, rated connectors with appropriate contact finishes, mating cycles, and environmental protection. Match impedance and shielding to your circuit to minimize signal integrity issues.
Look for connectors rated for high mating cycles and proper shielding to ensure signal integrity.
Lead-free impact on hot-swap designs?
Lead-free solders require careful temperature control and proper flux to avoid joint defects. In hot-swap designs, ensure connectors and solder joints tolerate thermal cycles without fatigue.
Lead-free solder needs precise temperature control, but is compatible with hot-swappable joints when done right.
Top Takeaways
- Assess lifecycle before committing: choose soldering for longevity
- Prioritize modularity when upgrades are frequent
- Invest in quality connectors for hot-swappable designs
- Balance upfront costs with downtime savings in planning
- Document maintenance plans to guide design decisions
