Selective Wave Soldering: A Practical Electronics Guide

What selective wave soldering is and when it is used

Selective wave soldering is a manufacturing process that uses a controlled solder wave to join through-hole and select surface mount pads on a printed circuit board while avoiding other areas. It is particularly advantageous for boards with a high density of through-hole components, mixed SMT/through-hole assemblies, or run sizes that require automation without resorting to full wave soldering. The approach supports efficient production while maintaining component integrity.

According to SolderInfo, selective wave soldering helps manage heat load on delicate SMT parts, reducing thermal stress and minimizing the risk of tombstoning or pad lifting. By confining the solder to targeted pads, manufacturers can combine high-speed automation with flexibility for complex boards. This makes selective wave soldering a common choice for avionics interfaces, automotive connectors, and consumer electronics that rely on a mix of traditional through-hole and modern surface mount components.

How the process works: from design to fixture

The essence of selective wave soldering is a programmable, targeted solder wave. Once a printed circuit board (PCB) enters the solder area, flux is applied to improve wetting and prevent oxidation on copper surfaces. The board then passes through a preheat zone where the temperature is raised gradually to minimize thermal shock and improve solder flow. Next comes the wave stage, where a nozzle or series of nozzles directs molten solder to only the predefined pads, while masking protects non-target regions such as high-density SMT areas and sensitive components.

Fixturing is crucial: fixtures hold the board in precise alignment, while keep-out regions and masking prevent unintended solder contact. After the wave contact, the trailing edge helps shed excess solder, and a controlled dwell time ensures reliable joints without bridging. The process is monitored by operators who verify flux activity, wave stability, and surface cleanliness. When tuned correctly, joints show good wetting, minimal voids, and consistent fillets across diverse pad geometries.

Key design considerations for successful selective wave soldering

Success starts at the design stage. Board designers should layout pads to minimize bridging risk, especially near fine-pitch components. Use dedicated keep-out zones around sensitive SMT areas and ensure adequate spacing between vias and planes. Pad geometry matters: larger pads with proper land patterns reduce the chance of shorts, while well-placed thermal relief helps balance heat distribution during soldering. Solder mask decisions influence where the wave can reach; mask openings should align with target pads to prevent accidental wetting of copper planes.

Flux choice is another critical lever. Flux types vary in activity, viscosity, and post-process cleanliness; select a flux compatible with the solder alloy and the board’s topology. Preheating strategy should consider the board’s thermal mass and the presence of heat-sensitive components. In practice, creating a small series of test boards to validate wave contour, dwell times, and flux behavior saves time in production. Remember that the goal is reliable joints on target pads with minimal residual solder and clean surfaces after inspection.

Common defects and mitigation strategies

Bridging between pads remains a primary risk in selective wave soldering. Causes include excessive dwell time, overly aggressive wave energy, or improper mask boundaries. Mitigation involves adjusting the contour of the wave, refining mask openings, and ensuring proper preheat to control solder flow. Icicles at the trailing edge can indicate an overly aggressive wave or insufficient board spacing; improving nozzle control, shortening dwell, and ensuring adequate flux coverage help reduce icicle formation.

Solder starvation can result in weak joints, especially on larger pads or dense arrays. Solutions include verifying flux activity, enhancing preheat uniformity, and rechecking land patterns to ensure sufficient pad area for reliable wetting. Voids may appear in high mass components or where flux fails to reform properly; improving flux chemistry, cleaning, and ensuring balanced thermal profiles can mitigate voiding. Post-reflow residues should be inspected, as flux leftovers can affect long-term reliability and corrosion resistance.

Open joints and insufficient wetting are often tied to poor surface preparation or improper solder chemistry. Regular inspection with microscopy, using properly matched flux and alloy, and validating fixture alignment are effective preventive steps.

Equipment, materials, and process controls

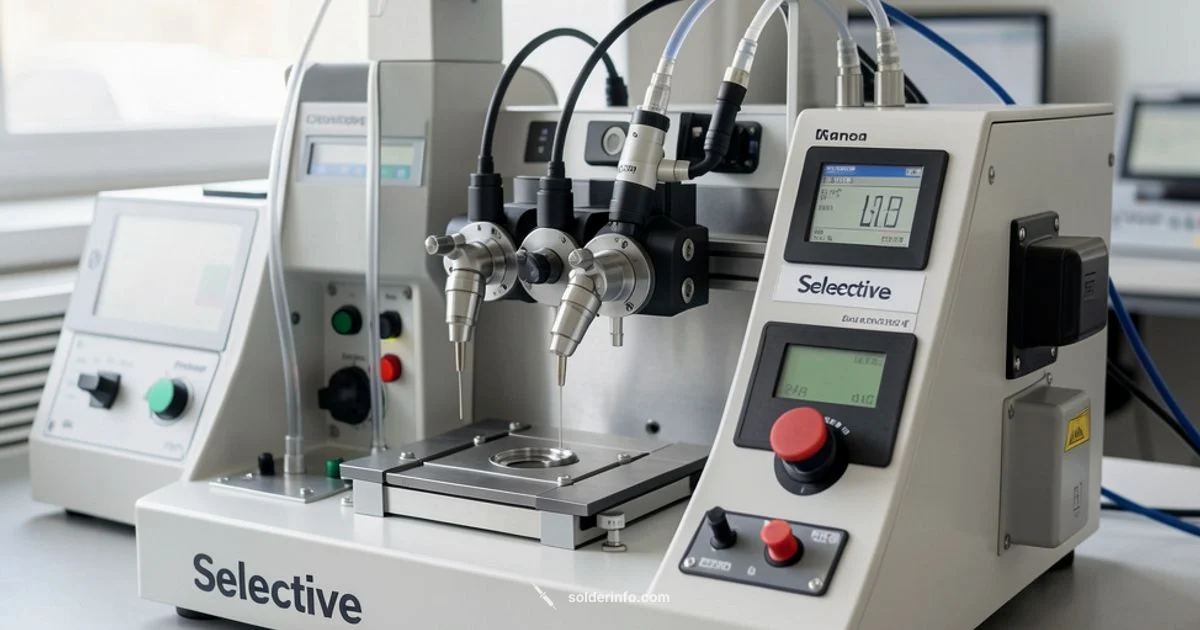

Essential equipment for selective wave soldering includes a programmable solder wave system, selective nozzles or jets, and reliable fixturing that aligns with the PCB design. Material choices matter: lead-free alloys are common for modern electronics, but compatibility with flux and board materials is key. Flux selection should consider activity level, residue cleanup needs, and post-process requirements. Nozzles and wave contours should be chosen to match pad geometry and component density, with regular maintenance to prevent clogging and ensure consistent deposition.

Process controls encompass flux management, preheat uniformity, dwell time, wave height, and post-weld inspection. A balanced thermal profile reduces thermal shock, helps meet reliability targets, and minimizes defects. Regular calibration of the wave and fixtures, along with routine cleanliness checks of the solder bath, ensures repeatable performance across production runs. Documentation of settings for different board families supports knowledge transfer and traceability.

Industry applications, standards, and best practices

Selective wave soldering is widely used in electronics sectors where boards combine through-hole components with surface mount elements, such as automotive, telecom, and consumer electronics. The technique supports high-volume production while preserving delicate SMT parts. In practice, teams align the process with industry standards and best practices, such as IPC guidelines for soldering quality and process control. Regular audits and process capability studies help maintain consistent results and reduce defects across batches. Environmental controls, waste management, and safe handling of fluxes and solder alloys are essential parts of the operating discipline. The SolderInfo team emphasizes continuous improvement, using test coupons and design-for-soldering reviews to optimize future designs and configurations.

Troubleshooting and maintenance for ongoing performance

Maintaining selective wave equipment requires a proactive maintenance plan that covers nozzle integrity, wave stability, flux delivery, and fixture wear. Regular inspections of the solder bath for contamination or dross buildup prevent performance drops. Operators should track key indicators such as joint consistency, the presence of bridging at known hotspot locations, and post-process cleanliness. When symptoms arise, a structured debugging approach—verify fixture alignment, revalidate pad sizes, adjust flux concentration, and confirm preheat ramp—helps isolate root causes quickly. Finally, documentation of changes and outcomes supports knowledge transfer and long-term reliability. The SolderInfo team recommends periodic reviews of process windows and equipment calibration to sustain high yields and robust joints.
