Remove Solder From Board: A Practical Desoldering Guide
Learn safe, effective methods to remove solder from circuit boards. This guide covers desoldering braid, solder suction, hot air, cleaning, and safety for electronics, jewelry, and plumbing projects.
To remove solder from a board, heat the joint with a clean soldering iron, apply desoldering braid or a solder sucker to lift the molten solder, and wipe away residue with isopropyl alcohol. Work slowly, use flux to improve flow, and protect nearby components with a heat sink or silicone shield to prevent damage. Safety first: unplug power and work in a ventilated area.
Why removing solder from a board matters
In electronics repair and assembly, removing solder is a routine task. Whether you’re replacing a faulty component, correcting a bridged joint, or cleaning up after a DIY build, the goal is to lift the solder cleanly without lifting pads or damaging traces. The right technique preserves circuit integrity and minimizes the risk of cold joints, tin whiskers, or tombstoning of components. According to SolderInfo, careful planning and the correct tools dramatically improve desoldering success and reduce collateral damage across electronics, jewelry, and plumbing applications. This section lays the groundwork for choosing the method that suits your board and joint type, while emphasizing safety and workspace organization.
Key takeaways: know your joint type, have the right tools ready, and protect sensitive components with heat management strategies.
Method overview: when to choose braid, suction, or hot air
Desoldering options vary by joint type, component size, and proximity to heat-sensitive parts. Desoldering braid (also called wick) is ideal for through-hole and larger pads where you want to wick away solder gradually. A solder sucker provides quick removal for accessible joints but may require multiple passes. Hot-air or hot-gas systems excel at dense or surface-mount components where traditional methods struggle. For most hobby projects, a combination of braid and suction, paired with flux, yields reliable results. Always assess the board’s layout, the presence of fragile components, and the risk of lifting copper traces before choosing a method.
If you’re working with lead-free solder, flux remains essential to lower melting temperature and improve flow, helping avoid cold joints.
Desoldering with braid (wick): a reliable, controllable method
Desoldering braid is a copper weave coated with flux that conducts heat and absorbs molten solder. To use it, place the braid over the joint, gently press the heated iron tip onto the braid to transfer heat, and allow solder to be drawn into the braid. Move the braid as solder wicks away to prevent build-up. When done, lift the braid and inspect the pad for lingering solder. Repeat as necessary with fresh braid. This method is particularly effective on pads that are close to other traces, where suction alone may pull away more material than you intend.
Tips: choose a braid width that matches the pad and use continuous, even pressure. Cleaning the braid after use prevents cross-contamination with new joints.
Solder suction: fast removal on accessible joints
A solder sucker uses a plunger to create a vacuum that pull solder into a chamber. For best results, heat the joint until the solder flows, then quickly activate the suction over the molten pool. Some models include a needle-nose tip that concentrates suction. This method is efficient on single or few joints and works well when the pad is clean and the copper trace remains intact. If the board has multiple densely packed joints, you may need to pause and reheat after each pass to avoid cold joints.
Pro tip: keep the iron tip clean and re-tin it between joints to maintain heat transfer efficiency.
Hot air and rework for stubborn or SMD components
Hot-air desoldering is best for surface-mount devices and tightly spaced components. A hot-air station directs warm air through a nozzle, melting solder simultaneously from multiple joints. Use a low to medium temperature setting and keep the nozzle at a safe distance to prevent overheating nearby parts. For components with many solder joints, slightly move the nozzle in a circular pattern to maintain consistent heat without scorching the board.
Important: use flux to improve heat transfer and prevent solder bridges, and employ heat shields or tweezers to hold small parts during desoldering.
Cleaning and inspecting after desoldering
After removing solder, inspect each pad for residue, bridges, or lifted copper. Wipe the area with isopropyl alcohol and a lint-free cloth or swab. If any solder remains, repeat the desoldering process or use fresh braid or a new solder sucker. Confirm that pads are flat and aligned, and test with a multimeter if the board is powered off to ensure continuity matches the schematic.
For through-hole joints, gently reflow the pad with fresh flux to reestablish the copper-to-pad connection, then re-tin the pad if needed.
Protecting the board and components during desoldering
Always protect nearby components with a heat sink, silicone shield, or Kapton tape. Keep a heat-absorbing barrier between the iron and heat-sensitive devices like LEDs, diodes, or integrated circuits. Use flux liberally to improve solder flow and reduce dwell time at any one joint. If the joint is heavily alloyed or plated with lead-free solder, expect longer heating times and plan accordingly.
Safety best practice: unplug power, work in a well-ventilated area, and wear eye protection to avoid splashes or flux fumes.
Tools & Materials
- Soldering iron with adjustable temperature(Tip clean and tinned; set to appropriate temperature for lead-free solder (typically 350-370°C on boards with rosin flux).)
- Desoldering braid (wick)(Choose width that matches pad/trace width; keep braid clean and replace often.)
- Solder sucker (manual or electric)(Prefer a model with a one-way valve to prevent backflow; keep needle tip clean.)
- Flux(Rosin-core flux or no-clean flux; helps solder flow and protects pads.)
- Isopropyl alcohol (IPA, 70-99%)(Used for cleaning flux residues and pads after desoldering.)
- Heat-resistant mat or silicone work pad(Protects the workspace and provides heat containment.)
- Tweezers (ESD-safe)(For lifting or repositioning components during and after desoldering.)
- Magnification/inspection tool(Helpful to inspect fine-pitch joints and small pads.)
- Hot-air rework station (optional)(Useful for dense or SMD components; adjust nozzle for precision.)

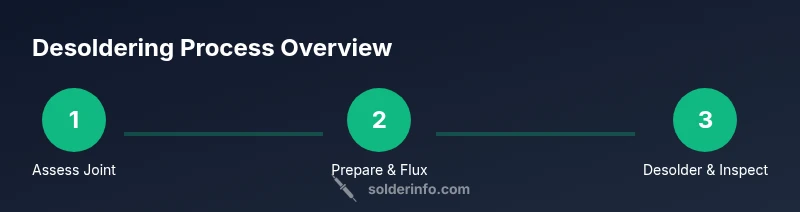

Steps
Estimated time: 45-75 minutes
- 1
Prepare workspace and safety
Clear the area, unplug power, and ventilate. Place a heat-resistant mat, gather desoldering tools, and wear eye protection. This prevents accidents and keeps the board steady during desoldering.
Tip: Turn the iron to a safe temperature before approaching sensitive components. - 2
Protect nearby components
Use a heat sink or silicone shield over adjacent parts to absorb excess heat. This minimizes the risk of heat damage to ICs, resistors, and fragile pads.
Tip: Apply flux sparingly on nearby pads to aid heat transfer. - 3
Choose a desoldering method
Assess the joint type and layout. For accessible through-holes, braid or suction works well; for dense SMT areas, hot air is often preferable.
Tip: In complex boards, plan to alternate methods to minimize dwell time per joint. - 4
Prepare the joint with flux
Apply a small amount of flux to the joint. Flux lowers the melting point and promotes even solder flow, reducing the chance of bridges.
Tip: Flux first; heat later to maximize effectiveness. - 5
Desolder using braid
Place braid over the joint and press the heated iron onto the braid until the solder wicks up. Lift the braid away and inspect. Repeat with fresh braid as needed.
Tip: Work slowly; avoid dragging braid across pads that could lift copper. - 6
Desolder using a solder sucker
When solder pools are ready, apply the sucker directly over the molten area and activate. Repeat until joint is clear, then clean.
Tip: Keep the nozzle close but not touching the joint to maximize suction without splatter. - 7
Optional hot-air desoldering
For stubborn SMT joints, heat with a hot-air station while controlling temperature and dwell time. Remove solder bridges with a pick while it flows.
Tip: Keep nozzle moving and maintain even heat to avoid scorching the board. - 8
Clean, inspect, and test
Wipe with IPA, inspect each pad for residue and bridges, and ensure pads sit flat. Test continuity with a multimeter only after powering down checks.
Tip: Retin the pads if needed and reflow selectively to reestablish connections.
Quick Answers
What is the best method to remove solder from through-hole boards?
For through-hole boards, start with desoldering braid to wick solder, then use a solder sucker for any remaining pools. Avoid excessive force that could lift pads.
For through-hole boards, start with braid to wick solder, then use a solder sucker for remaining pools. Don’t force joints to avoid lifting pads.
Can hot-air desoldering damage components?
Yes, improper heat can damage components. Keep the nozzle at a safe distance, use low to medium heat, and continuously move the nozzle to avoid hotspots.
Hot-air desoldering can damage components if not used carefully. Keep the nozzle moving and use moderate heat.
Is lead-free solder harder to desolder?
Lead-free solder can be trickier due to higher melting points, but flux helps; maintain proper temperature and use fresh braid or suction.
Lead-free solder can be a bit tougher to desolder, but flux and proper temperature help a lot.
What safety considerations should I follow?
Work in a ventilated area, wear eye protection, and avoid inhaling fumes. Use fume extraction where possible and unplug equipment when testing.
Always work in a ventilated area with eye protection and proper fume management.
How do I handle densely packed SMT boards?
For dense boards, use hot air or a hot-air rework station with careful temperature control, and rely on fine-tipped tools to manipulate joints.
Dense SMT boards are best with hot air and precise tools to avoid bridging.
What signs indicate pads or traces were damaged during desoldering?
Look for lifted copper, lifted pads, or reveals of copper traces. If present, you may need pad repair or rework techniques.
Watch for lifted pads or exposed copper; these indicate potential damage that may require repair.
Watch Video
Top Takeaways
- Master both braid and suction for flexibility
- Use flux to improve flow and protect pads
- Protect heat-sensitive components with shields
- Inspect and clean after desoldering before rework
