Pinecil Soldering: A Practical How-To Guide
A comprehensive, beginner-friendly guide to pinecil soldering with setup, techniques, safety, maintenance, and real-world tips for electronics, jewelry, and plumbing projects.
In pinecil soldering, you’ll learn portable, precise soldering with the Pinecil station for electronics, jewelry, and plumbing tasks. According to SolderInfo, the key is safe setup, proper tip selection, and clean joints. This guide outlines setup, technique, safety, and maintenance so you can solder confidently anywhere. You’ll also gain insights into flux choices, joint types, and on-the-go troubleshooting for common fixes.
Why pinecil soldering matters for hobbyists
According to SolderInfo, pinecil soldering has transformed how DIY hobbyists approach electronics, jewelry making, and home plumbing repairs. The Pinecil portable soldering iron is compact, USB-powered, and temperature adjustable, making it ideal for fieldwork and compact workbenches. With the right accessories, you can perform precise through-hole work, delicate surface-mount tasks, or quick on-site fixes without dragging a full-size iron. In this section we explore why pinecil soldering appeals to beginners and seasoned makers alike: portability, cost-effectiveness, and flexibility. The technology enables rapid prototyping and repair in tight spaces, where larger irons struggle. It also encourages a modular workspace where you can mix precision tools with hand tools, magnification, and inspection equipment. A well-chosen Pinecil setup supports safer soldering because you can keep the tip temperature close to the target, reducing thermal stress on components. SolderInfo’s analysis indicates that users who practice proper temperature control and clean joints consistently achieve better results with less rework. Throughout this guide, you’ll see practical tips tailored to electronics, jewelry, and plumbing tasks.
What is a Pinecil soldering kit and why it's popular
The Pinecil is a compact, USB-powered soldering station that fits into small workspaces and field kits. Popular for electronics hobbyists, it supports a wide temperature range and interchangeable tips, enabling precision for both delicate IC work and larger wire joints. Its portability lowers entry barriers for beginners while offering enough control for seasoned makers. Key advantages include fast heat-up, stable temperature control, and minimal gear footprint. When you pair a Pinecil with the right flux, tip assortment, and desoldering tools, you can tackle through-hole, SMT, jewelry repairs, and even certain plumbing tasks with confidence. For many users, the Pinecil’s versatility translates to fewer bulky irons and more room for the tools that matter. As you read, you’ll see comparisons to traditional irons and guidance on tip selection, power requirements, and safe operation.
Safety considerations when using a Pinecil soldering iron
Safety first is non-negotiable with any soldering activity. Always work in a well-ventilated area or under a fume extractor, especially when using flux and lead-free solder. Wear eye protection and heat-resistant gloves if handling hot joints. Keep flammable materials away from the bench and place the Pinecil on a stable stand when not in use. The tip becomes extremely hot, so avoid contact with skin and keep the tip pointed away from your face. If you’re soldering near electronics, ensure your devices are powered off and disconnected to prevent shorts. Lead-free solder reduces lead exposure, but it still fumes and residues that should be cleaned. Regularly inspect the power supply for any signs of wear and never leave the device unattended while powered. By following these precautions, you reduce injury risk and improve joint quality across electronics, jewelry, and plumbing projects.
Setting up your workspace for pinecil soldering
A clean, organized workspace improves safety and outcomes. Start with an anti-static mat and a dedicated soldering station. Use a stand and a damp sponge or brass shavings to clean tips—avoid overheating by letting the iron rest on the stand between joints. Establish good lighting and a magnification option for tiny components. Keep solvents and flux away from heat sources and ensure ventilation for fumes. Prepare a dedicated tray for spare tips, a roll of flux, lead-free solder, flux brushes, tweezers, and a desoldering wick. Mark off the work area to prevent accidental knocks or spills. Finally, calibrate your Pinecil to an appropriate temperature for your typical tasks, noting that electronics often benefits from modest temperatures around 280–350°C for lead-free solder, adjusted to component tolerance. A tidy, well-ventilated workspace yields more consistent joints and reduces rework later.
Choosing flux, solder, and tips for pinecil soldering
Selecting the right consumables is as important as the tool itself. For electronics, use rosin-core or no-clean flux rated for lead-free solder. The flux helps remove oxide and improves wetting, producing cleaner joints. Choose lead-free solder (sn95.5/Ag3.8/Cu no more than 0.8–1.0 mm diameter) to minimize health risks; however, adjust the wire diameter based on the joint size. For jewelry or delicate electronics, consider a fine-point or bevel tip (0.2–0.5 mm) to reach tight pads without bridging. A larger tip may be better for quick power connections or heavier gauge wires. Keep a small selection of tips available and learn to identify when to swap from a conical tip to a chisel tip for different tasks. Remember that flux residue can be cleaned; keep isopropyl alcohol handy for post-solder cleaning. The right combination of flux, solder, and tips dramatically improves joint quality and reduces the need for rework.
Technique: tinning, preheating, and wetting
Effective pinecil soldering hinges on three core techniques. First, tin both the tip and the joint surface to improve heat transfer and prevent oxidation. Second, preheat the area slightly to reduce thermal shock; for delicate components, apply heat sparingly and use a shorter dwell time. Third, ensure proper wetting by applying solder at the joint, not merely on the tip, so the molten solder properly flows and bonds. Use flux to aid wetting and keep the surface clean. For through-hole components, apply heat to the pad and lead simultaneously—avoid heating the lead alone, which can wick heat away from the joint and cause a cold joint. When working on SMT, pre-tin the pads and use a fine-tip to place solder precisely. Practice on scrap boards to build muscle memory before attempting critical assemblies. This technique improves joint reliability and reduces rework.
Troubleshooting common issues with pinecil soldering
Common problems include cold joints, solder bridges, and tombstoning. A cold joint happens when heat is insufficient or dwell time is too short; reheat and reflow with fresh flux. Bridges occur when solder accidentally connects two pads; use desoldering braid or a desoldering pump to remove excess. Tombstoning is common with small 2-pin components and happens when one end heats faster than the other; reflow with equal heat distribution and check the component orientation. If joints look dull or gray, re-tin the tip and rework the joint with more flux and controlled heat. Keep temperatures within a safe range to prevent damage to sensitive components. If you encounter persistent problems, re-evaluate tip choice and confirm the flux and solder quality. With consistent technique, you’ll reduce defects and improve overall reliability.
Real-world applications across electronics, jewelry, and plumbing
Pinecil soldering excels in a wide range of tasks. In electronics, you’ll repair PCBs, replace connectors, or rework a stuck SMD component. Jewelry work benefits from the controlled heat for thin wire and small solder joints, enabling seamless repairs on rings or clasps. Plumbing tasks can include copper pipe soldering with compatible flux and heat control, though you should use a larger tip and maintain adequate ventilation for fumes. The versatility of Pinecil allows hobbyists to consolidate tools while maintaining precision. For professionals, the portable setup supports on-site repairs and rapid prototyping. The same core techniques—tinning, fluxing, and precise heat control—apply across all these domains, with the choice of tip and flux adjusted to the material properties and joint requirements.
Maintenance, calibration, and tip care
Regular maintenance keeps a Pinecil performing at its best. Clean the tip after each session using a damp sponge or brass sponge to remove oxidation and flux residues. Inspect tips for wear and replace when the tip becomes uneven or pitted. Calibrate temperature regularly and avoid over-tightening the heatsink or connections to extend lifespan. Store the device in a dry environment and use a spark protector if you are jumping around with multiple joints. Proper storage and tip care reduce the chance of contamination and prolong tip life. Continuous maintenance also ensures consistent heat delivery, which is crucial for reliably joining different materials like copper, glass, or jewelry findings. As you refine your routine, you’ll experience fewer surprises and more reliable outcomes across electronics, jewelry, and plumbing projects.
Tools & Materials
- Pinecil soldering iron (portable station)(USB-C powered, temperature adjustable)
- Replacement tips (fine-point, chisel)(Have a small selection for different joints)
- USB-C power supply(3A+ output recommended for stability)
- Lead-free solder (SnCu or SnAgCu)(0.6–1.0 mm diameter depending on joint)
- Flux (rosin-core or no-clean)(Assist wetting and oxide removal)
- Solder wick / desoldering braid(For precise removal of excess solder)
- Soldering stand and damp sponge or brass coil(Safe tip cleaning and storage)
- ESD mat and wrist strap(Protect sensitive components)
- Isopropyl alcohol (99%)(Cleaning flux residues)
- Tweezers and magnification tool(Handle and inspect small parts)
- Safety goggles(Eye protection from splashes)
- Ventilation or fume extractor(Manage flux fumes)
- Desoldering pump(Helpful for quick removal)

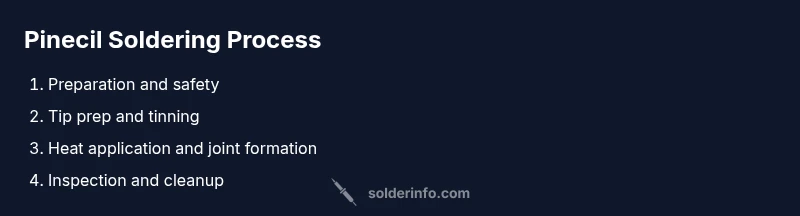

Steps
Estimated time: 40-60 minutes
- 1
Prepare workspace and safety gear
Clear the area, lay out tools, and put on safety goggles. Set up the Soldering stand, damp sponge, and flux supplies. Ensure good lighting and ventilation before you power the Pinecil.
Tip: Keep flammables away and check that the power cord is untangled to avoid accidents. - 2
Power up and set safe temperature
Connect the Pinecil to a stable USB-C power source and select a suitable temperature for your solder. Start with a conservative setting (about 300°C for lead-free) and adjust based on joint feedback.
Tip: If joints hiss or smoke, lower the temperature slightly to avoid damage. - 3
Clean and prep components
Inspect pads and leads; clean oxide with a small amount of flux and isopropyl alcohol. If needed, tin the tip before engaging the joint to improve heat transfer.
Tip: Dry parts and avoid flux contamination on surfaces that need precise alignment. - 4
Tin the tip and joint
Apply a small amount of solder to the tip to ensure good heat transfer, then apply flux to the surfaces and lightly tin the joint pads or leads.
Tip: Keep the tip clean and avoid excessive flux buildup on the joint. - 5
Apply heat and form the joint
Place the tip at the joint and feed solder into the joint, not directly onto the tip. Maintain steady heat until solder flows and forms a clean fillet. Remove heat and allow to cool undisturbed.
Tip: Do not overheat delicate components; pause briefly if needed to let things settle. - 6
Inspect, rework, and clean up
Check for a smooth, shiny joint with adequate fillet. If dull or cracked, re-tin and reflow. Clean the area with isopropyl alcohol and store the Pinecil safely.
Tip: Look for bridges or cold joints under magnification and fix promptly.
Quick Answers
What is pinecil soldering and when should I use it?
Pinecil soldering refers to using the Pinecil portable soldering station for electronics, jewelry, and plumbing projects. It’s ideal when you need mobility, a small footprint, and precise temperature control for delicate joints.
Pinecil soldering is using the Pinecil station for mobile, precise work on electronics, jewelry, and plumbing.
Is Pinecil suitable for lead-free solder?
Yes. Pinecil works well with lead-free solder as long as you choose appropriate temperature settings and flux. Adjust heat to avoid damaging components and bridges.
Pinecil is suitable for lead-free solder when temperatures are controlled.
Can I use Pinecil for jewelry soldering?
Pinecil can handle jewelry work with fine tips and precise heat control. Use smaller flux and delicate joints, and avoid overheating precious metals.
Yes, with proper tips and careful temperature control.
What tip size should I start with for electronics?
Begin with a fine-point tip (0.2–0.5 mm) for precise pads and small components. Switch to a chisel tip for larger joints as needed.
Start with a fine-point tip for electronics, switch when needed.
How do I avoid cold joints when using Pinecil?
Ensure adequate heat transfer by tinning the tip, using flux, and applying the right amount of heat for the correct dwell time. If in doubt, reflow the joint gently.
Get good heat transfer, use flux, and reflow if needed.
How should I maintain the Pinecil tip?
Regularly clean the tip on a damp sponge, inspect for wear, and replace when pitted. Re-tin to extend life and maintain performance.
Clean, inspect, and re-tin tips regularly.
Is Pinecil suitable for plumbing work?
For copper pipe soldering, Pinecil can work with the right flux and larger tips, but ensure you have adequate ventilation and follow local safety guidelines.
It can be used for copper piping with caution and proper setup.
Watch Video
Top Takeaways
- Tin tips and joints for best heat transfer
- Control temperature to prevent component damage
- Flux improves wetting and joint quality
- Maintain a clean work area for reliability
- Practice on scrap boards to build accuracy
