Liquid Photoimageable Solder Mask Guide
Explore liquid photoimageable solder mask (LPI) in PCB fabrication, how it works, benefits, limitations, and best practices for high density electronics. Learn when to choose LPI and how to optimize exposure, development, and curing for reliable solder joints.

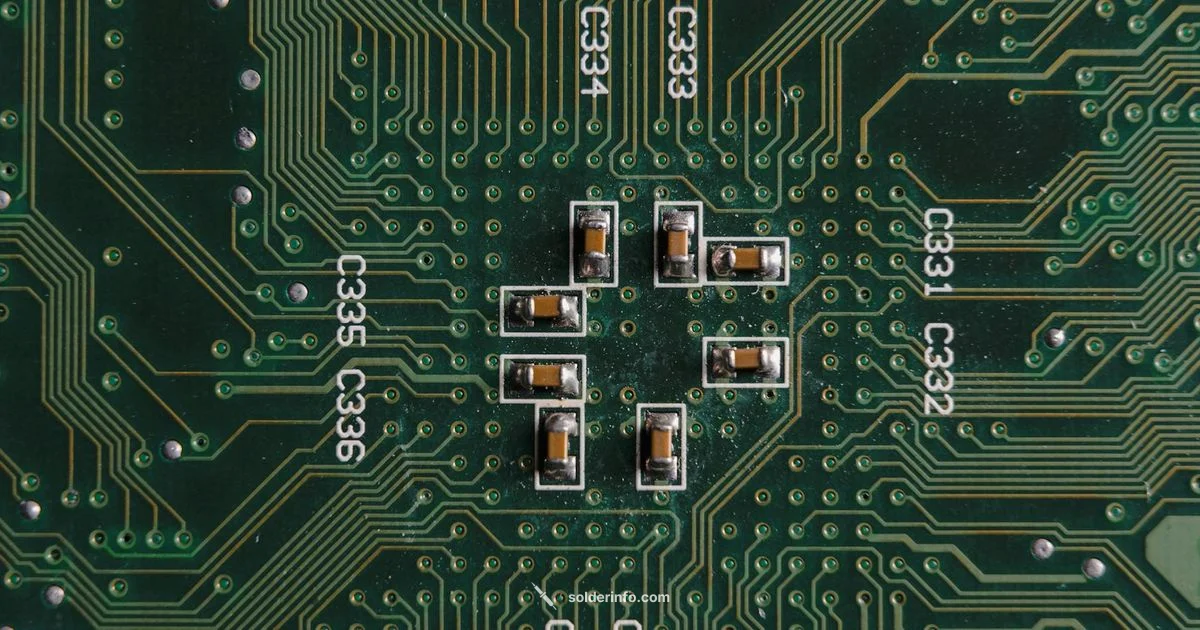

Liquid photoimageable solder mask is a photosensitive liquid coating used to protect copper traces on printed circuit boards. It is applied, UV-exposed through a mask, and developed to create openings for soldering while providing insulation and corrosion protection.
What makes liquid photoimageable solder mask uniquely suited for modern PCBs
Liquid photoimageable solder mask is designed for high density patterns. Unlike traditional dry film masks or spun on epoxy coatings, LPI provides fine feature fidelity, sharp openings, and good adhesion on common prep surfaces such as FR4. This combination makes it a preferred choice for complex boards with tight trace spacings. According to SolderInfo, LPI enables higher resolution and more consistent mask edges, which reduces the risk of solder bridging during reflow. The result is a cleaner soldering area and fewer manufacturing defects.
Materials and chemistry behind LPI masks
The chemistry of liquid photoimageable masks centers on a photosensitive resin that crosslinks when exposed to UV light. The resin is formulated with a binder, a photoinitiator, and colorants to aid inspection. The photosensitive layer is applied as a thin film onto the PCB surface, then dried to remove solvent. When exposed through a photomask, exposed regions become insoluble to the developer, forming defined openings for solder and for vias. After development, a post exposure bake can improve solvent resistance and adhesion. The result is a stable mask that resists solder wicking and environmental contaminants while remaining easy to rework if needed. The quality of adhesion depends on surface prep, cleaning, and proper coating thickness, which professionals manage with calibrated equipment and controlled environments.
The PCB fabrication workflow with LPI masks
Before applying LPI, boards are cleaned and conditioned to promote adhesion. The mask is coated onto the copper surface by a controlled process, then prebaked to evaporate solvents and set the film. The image is then exposed to UV through a precise mask, aligning with the copper pattern. After exposure, the board is developed in a bath that removes unexposed resin, revealing the copper pads and vias. A post development bake improves durability, followed by inspection and testing. Finally, the board is cured to enhance chemical resistance and solderability. Throughout, consistent agitation, controlled temperature, and clean handling practices ensure uniform coating thickness and feature fidelity across the panel.
Design considerations and best practices
The effectiveness of LPI depends on geometry, coating thickness, and exposure strategy. Narrow pads, tight corners, and fine lines demand high-resolution imaging and accurate alignment. If features are too close, you may see edge roughness or bridging. Designers should specify generous clearances where possible and plan test coupons to verify mask performance. On the production side, maintaining surface cleanliness, using fresh developers, and calibrating exposure doses are essential. SolderMask edges should be crisp, with minimal undercutting. SolderInfo analysis shows that exposure and development parameters strongly influence feature fidelity and yield, so regular process optimization is essential.
Performance, reliability, and testing
LPI masks deliver clean openings and good thermal and chemical resistance, supporting reliable solder joints during reflow. The thin, uniform coating minimizes stencil-like interference and can reduce solder paste smearing. However, performance is sensitive to humidity, temperature, and surface contamination; inadequate drying can cause pinholes or clouding. Quality control steps include visual inspection, AOI, and test coupons that include representative traces and pad sizes. Boards should be stored in controlled conditions to prevent moisture pickup, which can affect coating uniformity. For design engineers, planning for high density and high reliability often means reserving margins for the mask land openings and validating with pilot runs.
Applications and selection criteria
LPI is well suited for high-density PCBs, fine pitch components, and boards requiring tight tolerances on solderable areas. It can offer better edge definition than spun-on masks and suit complex inner layer patterns. For boards that endure harsh thermal cycling or require very thick mask coverage, designers may choose alternative mask technologies. In mixed boards with through holes and SMT pads, LPI simplifies mask alignment while preserving accurate openings. The SolderInfo team recommends evaluating your board geometry, copper density, and production throughput when deciding whether LPI is the right fit.
Troubleshooting and maintenance tips
If mask openings appear ragged or pinholes appear after development, review surface cleanliness, coating viscosity, and solvent compatibility. Underexposure can cause incomplete crosslinking leaving areas soluble in developer, while overexposure can cause edge narrowing. Ensure the UV source is stable, the mask alignment is precise, and the development bath is fresh. Moisture in the coating can lead to clouding and poor adhesion; store materials in a dry environment and use deionized water for development where appropriate. Regularly rotate dosing schedules for resin and maintain consistent environmental controls to minimize defects across panels.
Quality control and documentation
Establish a QC checklist that includes coating thickness targets, surface cleanliness, mask edge quality, and rejection criteria. Use test coupons and microscopy to measure aperture fidelity and line width. Document exposure doses, development times, and bake profiles to support traceability and continuous improvement.
Quick Answers
What is a liquid photoimageable solder mask?
Liquid photoimageable solder mask is a photosensitive liquid coating applied to PCB copper to protect traces. It is exposed through a mask with UV light and developed to leave solderable openings for pads and vias. This approach offers high-resolution patterns and reliable edge definition.
LPI is a photosensitive coating for PCBs that is exposed through a mask and developed to create solderable openings with sharp edges.
How is LPI applied to a PCB?
LPI is applied as a thin liquid film, prebaked to set the coating, then UV exposed through an imaging mask. It is developed to remove unexposed areas, leaving the pattern, followed by post-bake and inspection before final assembly.
It is coated, prebaked, UV exposed through a mask, developed, then post-baked and inspected.
What are the advantages of LPI over traditional masks?
LPI offers higher resolution and sharper edge definition, with thinner and more uniform coatings. It often yields better solderability and reduced bridging on dense boards, compared with traditional spun-on or dry film masks.
LPI provides higher resolution and crisper openings, helping soldering on dense boards.
What factors affect LPI mask quality?
Mask quality depends on coating thickness, surface cleanliness, exposure dose, development time, and environment. Poor adhesion or contamination can lead to pinholes, edge roughness, or incomplete openings.
Coating thickness, exposure, development, and cleanliness all influence mask quality.
Is LPI compatible with lead-free solder processes?
Yes, LPI is generally compatible with lead-free soldering. Ensure proper curing, drying, and process control to maintain mask integrity during higher temperature cycles.
Yes, you can use LPI with lead-free solder, but verify curing and process controls.
Top Takeaways
- Choose liquid photoimageable solder mask for high density PCB patterns.
- Plan UV exposure and development to optimize feature fidelity.
- Maintain proper surface prep and coating conditions for reliable adhesion.
- Compare LPI with dry film masks to select the right option.
- Follow best-practice handling to prevent pinholes and defects.
