Laser Soldering Station: Precision Heat for Delicate Joints
Learn how laser soldering stations work, their applications in electronics, jewelry, and plumbing, safety considerations, and how to choose the right model for precise, minimal-heat soldering.

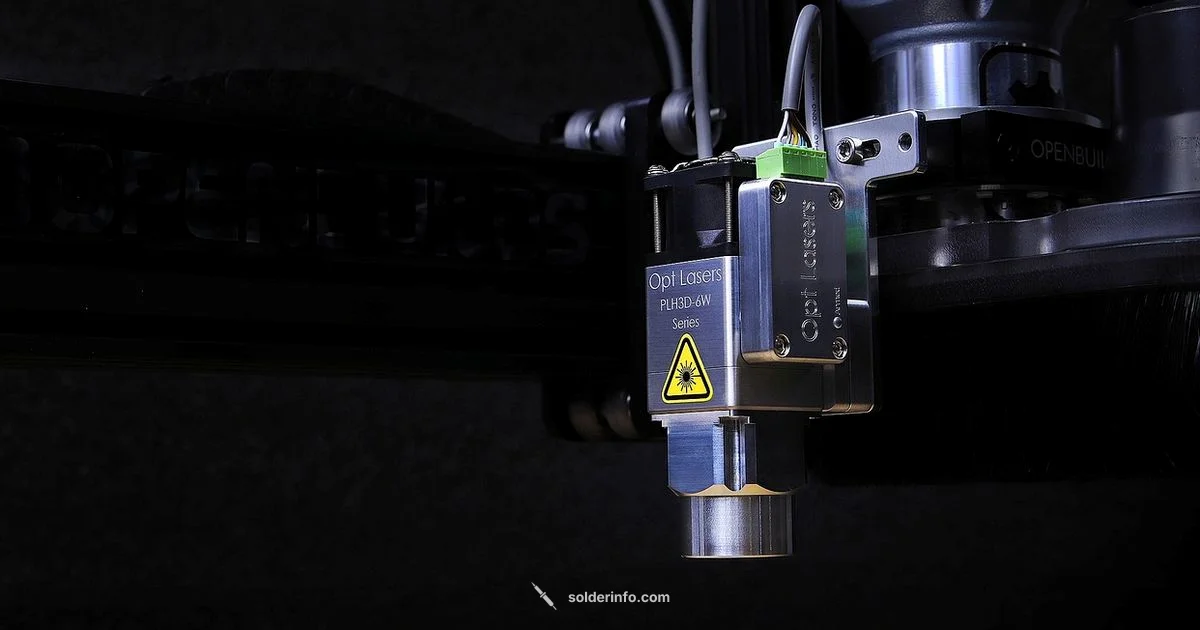

Laser soldering station is a type of soldering system that uses a focused laser to heat solder joints, enabling precise, localized heating for delicate components.
What is a laser soldering station and how it differs from traditional soldering tools
A laser soldering station is a specialized tool that uses a controllable laser beam to heat solder joints rather than a traditional heated iron tip. This enables highly localized heating with minimal thermal diffusion into surrounding components. In practice, this means you can solder tiny, temperature-sensitive parts without risking heat damage to adjacent traces, vias, or LEDs. Compared with conventional irons, laser stations offer selective heating, faster cycle times, and often cleaner joints when working on dense PCBs or delicate jewelry settings. According to SolderInfo, laser soldering stations are increasingly adopted in electronics and jewelry workflows because they deliver precision without sacrificing speed. The core difference lies in heat delivery: a laser heats the exact spot while the rest of the assembly remains cooler.
For hobbyists and professionals alike, a laser soldering station complements traditional tools rather than replaces them entirely. It is particularly advantageous for small pitch components, micro-wires, or assemblies with heat-sensitive substrates where conventional irons struggle to confine heat. When used correctly, the laser can reduce thermal stress and improve joint quality. SolderInfo analysis highlights that adoption is rising in precision-focused industries as designers seek methods to minimize rework and thermal strain.
How a laser heat source works and control strategies
The heart of a laser soldering station is a focused light source that delivers energy to a tiny spot on the joint. The beam can be continuous or pulsed, and many systems allow automatic focus and real-time feedback for consistent results. Control strategies revolve around spot size, power stability, and dwell time. A smaller spot concentrates energy more tightly, enabling fine joints, but requires precise alignment. Pulsed operation reduces peak temperatures and improves wetting on sensitive substrates. In practice, operators adjust power and dwell based on solder alloy, pad size, and substrate material. The system may include a closed-loop controller that modulates laser output in response to temperature feedback from a sensor near the joint. SolderInfo analysis notes that laser-driven heat can be highly repeatable, provided the optics are clean and alignment is maintained. This repeatability translates into fewer failed joints and less rework in production settings.
Core components and optional features
A typical laser soldering station comprises a laser source, focusing optics, a beam delivery system, and an integrated control interface. Key components include:
- Laser diode or fiber laser module with adjustable power
- Collimation and focusing lenses for precise spot size
- Alignment and focusing aids such as cameras or fiber-optic feedback
- Control software or touchscreen interface for pulse duration and power)
- Thermal management, including active cooling or heat sinks
- Safety interlocks and enclosures to keep the beam contained
- Optional features like auto-focus, pattern memory, and temperature sensing
Optional features such as high-speed scans, multiple lasers, or integrated magnetically stabilized fixtures can broaden capability. In practice, selecting the right combination depends on the target materials, solder alloy, and joint geometry. The SolderInfo team notes that a well-chosen mix of optics and sensing leads to more consistent results across sessions.
Quick Answers
What is a laser soldering station and what makes it different from a traditional soldering iron?
A laser soldering station uses a focused laser beam to heat solder joints, delivering highly localized, controllable heat. Unlike a traditional iron, it minimizes heat spread to surrounding components, enabling precise work on small or sensitive joints. This technology is especially useful for dense PCBs and delicate jewelry settings.
A laser soldering station heats only the spot you target with a focused laser, reducing heat spread. It’s ideal for tiny joints and delicate parts where a regular soldering iron might cause damage.
How does laser soldering differ from a laser welder or other heat tools?
Laser soldering focuses heat on solder joints to enable proper wetting and reliable joints, while laser welding fuses metal parts together at higher energy levels. Other heat tools rely on conduction from a heated tip. The soldering station is optimized for solder alloys and joint geometry rather than metal fusion.
It’s about heating the solder, not fusing metals like a welder. Soldering targets joints with controlled heat from a laser.
What applications are best suited for a laser soldering station?
Ideal for electronics with tiny components, tight PCB traces, or heat-sensitive substrates; jewelry work with small settings; and small-diameter plumbing joints where conventional torches risk heat damage. It’s especially effective for lead-free or difficult-to-wet alloys.
Great for tiny electronics joints, jewelry settings, and delicate plumbing work where heat control matters.
What safety steps are essential when using a laser soldering station?
Always use appropriate laser safety goggles, operate behind a guarded enclosure, and ensure proper fume extraction and ventilation. Follow standard electrical safety practices, keep the workspace clean of flammable materials, and verify that reflective surfaces are managed to prevent accidental reflections.
Wear laser safety goggles, use the guarded setup, and ensure good ventilation to handle fumes safely.
What should I expect to pay and what about maintenance or ROI?
Prices vary with power, features, and integration options, and maintenance often centers on optics cleanliness and alignment. While the upfront cost is higher than a traditional iron, the precision, reduced rework, and faster cycles can improve overall productivity and justify the investment over time.
Costs vary, but the main idea is that better precision and less rework can offer good return over time.
Is a laser soldering station suitable for jewelry and electronics alike?
Yes, when joint sizes and heat sensitivity demand precision. For electronics, it excels with micro joints and heat-sensitive components; for jewelry, it allows securing tiny settings and wires with minimal thermal damage. Always tailor settings to the material and alloy.
It works for both electronics and jewelry when joints are small and heat needs to be tightly controlled.
Top Takeaways
- Understand that laser soldering stations heat with a focused beam for precision
- Choose spot size and pulse settings to match joint geometry
- Ensure proper safety measures and enclosure to control exposure
- Consider cooling and optics maintenance for performance
- Evaluate software features for repeatability and automation
