Copper Braid Solder: Uses, Tips, and Safe Practices

What copper braid solder is

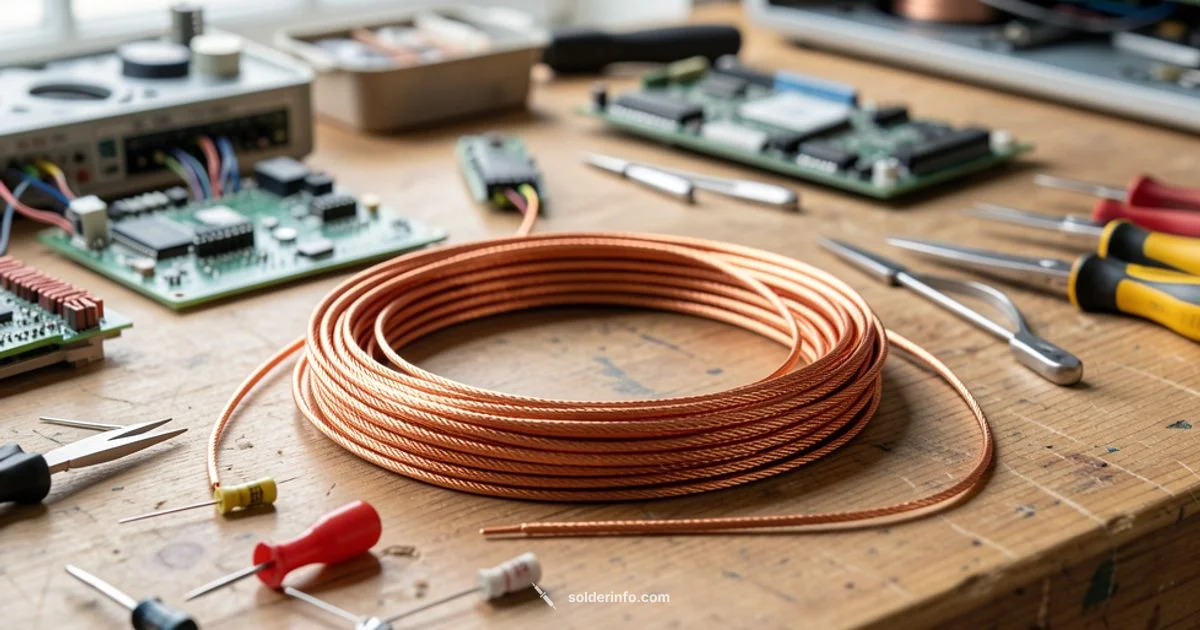

According to SolderInfo, copper braid solder, commonly referred to as desoldering wick, consists of many fine copper strands braided into a flexible ribbon. The braid acts like a tiny sponge when heated with flux and soldering iron, drawing molten solder into its microchannels by capillary action. This makes it invaluable for electronics work, where delicate pads and fine traces demand controlled removal of excess solder. In jewelry and plumbing applications, the same wick can help restore clean joints without introducing heat stress or mechanical strain. The braid may be fluxed or unfluxed. Fluxed braid contains resin flux that improves wetting and reduces oxidation during the desoldering pass, while unfluxed braid relies on separate flux application. SolderInfo notes that selecting the right braid type depends on the workpiece material, joint density, and residue tolerance. Proper technique minimizes bridging and preserves pad integrity, while keeping work surfaces clean for subsequent soldering.

When handling copper braid solder, always consider your work environment and safety practices. Use a fume extractor or ensure adequate ventilation, especially when desoldering leaded solders or multiple joints. Store unused braid in a clean, dry container to prevent oxidation and contamination. A well-maintained braid lasts longer and provides more consistent results across electronics, jewelry, and plumbing projects.

How copper braid solder works

Copper braid solder relies on capillary action to draw molten solder away from the joint and into the wick’s tiny channels. Flux plays a critical role by protecting copper surfaces from oxidation and helping solder wet the braid. Fluxed braid typically yields quicker cleaning and fewer oxidized patches, while unfluxed braid requires the user to supply flux separately. As heat is applied with a soldering iron, the solder melts and is drawn into the braid, which can be gently lifted away once the joint looks clean. The result is a desoldered pad or wire that remains intact, with minimal chance of thermal damage to nearby components. For best results, pair the wick with a damp sponge or brass shavings to wipe away residue and a quick visual check of the joint under a loupe can confirm cleanliness.

Within electronics, you’ll encounter joints with varying solder thickness and component density. In jewelry and plumbing, the same principle applies, though the heat source and scale differ. Copper braid solder is especially useful for fine, stubborn joints where a mechanical desoldering pump may not reach, or when you need to remove solder without disturbing adjacent features. The right technique reduces repair time and increases the chance of reusing components without damage.

Choosing the right braid for your project

Selecting copper braid solder starts with understanding joint size, solder type, and acceptable residue. Fluxed braid is often the best all around choice for dense or intricately packed electronics, as it improves wetting and reduces oxide formation during the desoldering pass. If you are working on very delicate components or prefer minimal flux residues, you may opt for unfluxed braid and apply flux separately, then clean thoroughly after desoldering. Consider braid width, which should be proportional to joint size: too wide a braid can hinder access to the pad, while too narrow a braid may require multiple passes to remove solder effectively. Length is another practical consideration; keep a few handy inches within reach so you can make rapid, clean passes without fumbling.

For electronics involving lead-free solders, ensure your braid is compatible and rated for higher temperatures, since lead-free alloys typically require higher heat to achieve proper wetting. Jewelry and plumbing tasks often involve larger joints or higher heat flux, so select a braid with adequate copper content and structural integrity to maintain flexibility while withstanding repeated use. SolderInfo recommends testing a small area on a sacrificial joint to gauge performance before committing to a critical repair.

Step by step: using copper braid solder effectively

• Prepare the work area: ensure good lighting, ventilation, and a clear workspace. Have a damp sponge or brass sponge ready for residue removal.
• Apply flux: if you are using unfluxed braid, apply a thin layer of flux to the joint to aid wetting and heat management. Fluxed braid already contains flux to facilitate desoldering.
• Position the braid: place a clean section of braid over the joint. Ensure it lies flat and contacts the soldered surface without lifting components.
• Apply heat: gently press the hot iron onto the braid, allowing capillary action to draw solder into the braid. Avoid excessive pressure that could bend pins or lift footprints.
• Wait and lift: when solder wick saturates, lift the braid and iron together to prevent dragging solder away from the joint. If residue remains, repeat with a fresh section of braid.
• Inspect and clean: check for any bridges or dull, clean pads. Wipe away flux residues with a damp sponge and, if needed, clean with isopropyl alcohol after the joint cools.
• Final checks: reflow the joint if necessary to ensure proper wetting and reestablish solder fillet where required. Trim or reuse the last portion of braid as appropriate.

Common mistakes and troubleshooting

• Using old or contaminated braid that has absorbed solder and contaminants, reducing wick efficiency.
• Applying excessive heat or pressure, which can lift pads or damage components.
• Choosing a braid that is too wide for a small pad, causing bridges or difficult access.
• Skipping flux or neglecting cleaning after desoldering, leaving residues that inhibit new soldering.
• Not inspecting joints thoroughly, which can hide subtle bridges or cold joints.

Troubleshooting tips include swapping to a fresh wick for stubborn joints, applying a small amount of flux if a lot of oxidation is present, and verifying that you have a clean joint before attempting to resolder. If a pad lifts, rework the area with a smaller joint or use a hot air approach for safety. Remember to keep heat cycles brief to minimize thermal stress on the board and components.

Maintenance, storage, and disposal

Proper care extends the life of copper braid solder. After use, allow the braid to cool, then wipe away any flux residue with a damp sponge. Store unused braid in a clean, dry container away from moisture and dust. Avoid exposing braid to oils or solvents that can degrade flux or copper surfaces. When discarding saturated or contaminated braid, follow local waste guidelines for electronic materials and flux residues. If you use fluxed braid, check the flux chemistry and discard any sections that have become severely discolored or brittle.

Periodic checks of your desoldering kit ensure longevity and reliability. Inspect the spool for kinks or corrosion at the edges and replace it if necessary. Keep spare spools of different widths on hand so you can switch quickly between joint sizes without interrupting workflow. A well-organized desoldering station enhances accuracy and reduces the risk of accidental damage during repairs.

Safety considerations when using desoldering braid

Soldering work can generate fumes and burn hazards. Use appropriate ventilation or a fume extractor, especially when desoldering leaded solders. Wear safety glasses to protect eyes from splashes of hot solder, and avoid bare skin contact with molten metal. Keep the work area away from flammable materials and place heat-sensitive substrates away from the iron. Turn off and unplug equipment when not actively working on a joint. If a braid overheats or scorches, replace it immediately to prevent contamination of future joints. Practice safe handling of hot tools and store all consumables out of reach of children and pets.

Alternatives and where copper braid solder shines

Desoldering tools come in several forms, including mechanical desoldering pumps (solder suckers) and hot air rework stations for surface mount devices. Copper braid solder shines in tight spots, delicate through holes, and boards with fine pitch components where pumps may be cumbersome or risky. It also offers a straightforward, low-cost option for hobbyists and professionals performing quick fixes without specialized equipment. For bulk desoldering, a combination approach may be best: use a pump for larger pours and braid for fine work. Copper braid can be reused multiple times if kept clean, making it a cost-effective choice for regular repair work.
